Blackmagic Design Smartscope Duo 4K Monitors

Blackmagic Design Smartscope Duo 4K Dual 8" 6G-SDI monitors with waveform analysis

Thumbnail 1 : Blackmagic Design Smartscope Duo 4K Monitors Thumbnail 2 : Blackmagic Design Smartscope Duo 4K Monitors
Scan code: LN99613 Manufacturer code: BMD-HDLSMTWSCOPEDUO4K2
£696.49Item currently awaiting an ETA
Pre order
From £29.02 / month (APR 0%)
Monthly Payment: £116.09
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £696.49
Total inc. interest: £696.49
Monthly Payment: £58.04
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £696.49
Total inc. interest: £696.49
Monthly Payment: £38.70
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £696.49
Total inc. interest: £696.49
Monthly Payment: £29.02
Instalment Rate: 0% p.a. (fixed)
Cost of purchase: £696.49
Total inc. interest: £696.49
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £17.39 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Product Overview The SmartScope Duo 4K is the refreshed, 4K enabled version the previous HD edition. Two 8" monitors sit side by side, with vivid images being displayed for accurate monitoring during your live event or production. You're able to mix and match what you see, whether it's scopes and a picture or two scopes with another SmartScope rack mounted above with the pictures you're monitoring.

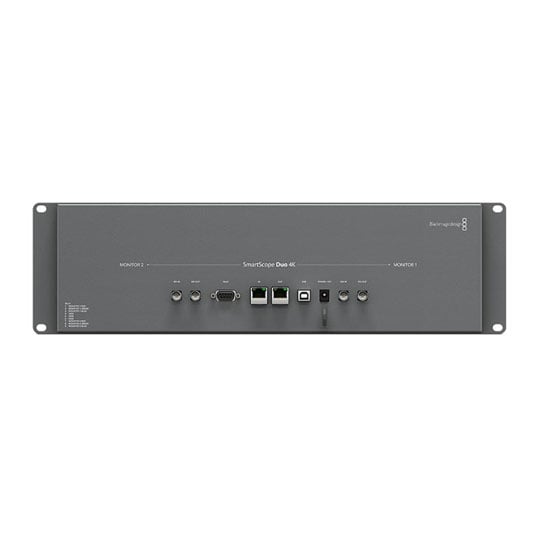

On the back, you get access to SDI ports that support SDI, HD-SDI, 3G-SDI and 6G-SDI, so you can go from standard definition to full 4K images all in one device.

The scopes you can use on this device are Waveform, Vectorscope, Parade Display, Audio View and Histogram.

Waveform
Keep an eye on your video levels so that you can get the perfect picture scientifically. The Waveform displays the black and white levels of luminance in your video feed so you can monitor during production, editing and keying.

Vectorscope
Measure colours accurately during colour correction, giving you the edge during the process. It'll highlight things like tint, white balance and more. This is ideal for those that might not have the correct monitor for colour grading and in need of a mathematical way to determine what's happening.

Parade Display
Get real time RGB waveforms with the Parade Display, so you can balance colours easily for that perfect look. Once a wave has dropped below the 100% or black line is now rendered an 'illegal' colour, which needs to be seen to. There's also support for YUV colour too.

Audio View
You can even monitor up to 16 channels of audio meters via the SmartScope Duo! It has its own scope that displays an XY scope.

Histogram
Avoid loss of detail from clipping with the Histogram, a graph that assists in adjusting blacks and whites. Keep an eye on how your video is doing when you adjust iris and ISO settings, so that every detail is kept where it should be. This is brilliant for colourists on set, as they'll be able to keep track of every little detail, including full contrast range.
Features • 2 independent 8 inch LCD displays in a 3 rack unit size chassis, less than 1 inch thick.
• 6G-SDI inputs for SD, HD and Ultra HD monitoring, with re clocked loop outputs.
• Ethernet input with loop output for connecting to computers for central adjustments.
• Tally input for each monitor allowing red, green or blue tally indication.
• Control software panel included free for Windows and Mac OS X.
• Full 10 bit data path and image scaling for high quality displays.
• Idea for use in broadcast, post production and camera monitoring for switchers.
• SmartScope Duo 4K looks like a SmartView Duo but adds independent waveform monitoring so you can select between waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase level displays
• Each monitor is independent so can display any combination of scope or picture view
• SDI Video Input
• Automatically switches between SD, HD and 6G-SDI. Reclocked loop through output
• SDI Video Output
• 1 x 10 bit loop through SD, HD and 6G-SDI switchable
• SDI Audio Input
• 16 channels embedded in SD, HD and UHD
• SDI Audio Output
• 16 channels embedded in SD, HD and UHD
• Multi Rate Support
• Standard definition SDI, high definition SDI and 6G-SDI
• Tally
• 9-pin D connector
