ASRock DeskMini X600 / USB4 SFF Barebones Mini PC
ASRock DeskMini X600 / USB4 SFF Barebones Mini PC
Scan code: LN162702 Manufacturer code: 90BXG5301-A10GA0W
£189.98Item currently awaiting an ETA
Pre order
  • Thumbnail 1 : ASRock DeskMini X600 / USB4 SFF Barebones Mini PC
  • Thumbnail 2 : ASRock DeskMini X600 / USB4 SFF Barebones Mini PC
  • Thumbnail 3 : ASRock DeskMini X600 / USB4 SFF Barebones Mini PC

ASRock DeskMini X600 / USB4 SFF Barebones Mini PC

ASRock DeskMini X600 Mini PC, AMD AM5 Support, Up to 96GB DDR5, 2x SATA, 2x M.2, HDMI, DP, USB4, 2.5G LAN, Barebones

Scan code: LN162702 Manufacturer code: 90BXG5301-A10GA0W
£189.98
£5.48 Next day delivery
Item currently awaiting an ETA
Pre order
Pay in 3 interest-free payments of £63.33

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • From £17.22 / month (APR 16.9%) for 12 months or 0% for 4 months
  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.

Suggested Alternatives

DeskMini X600 AM5 Ryzen™ Mini PC from ASRock

DeskMini X600 AM5 Ryzen™ Mini PC from ASRock

Ultra-Compact Performance The ASRock DeskMini X600 is a compact 1.92L barebones mini PC supporting the latest AMD Ryzen 9000/8000/7000 Series desktop processors. It offers DIY flexibility, allowing custom selection of memory, storage, and CPU cooler, while delivering impressive performance and expandability in a remarkably small form factor, ideal for users seeking both space-saving design and cutting-edge computing power.

Powerful Performance

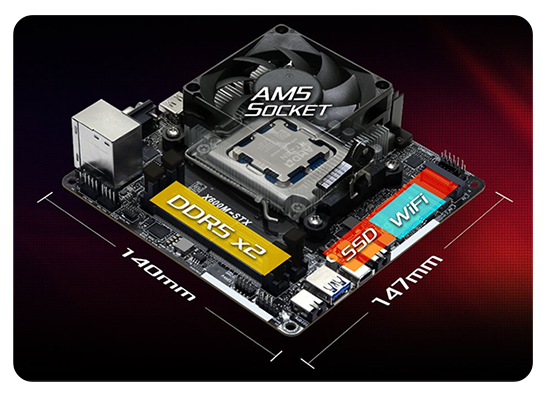

Small APU form factor

Small APU Form Factor

Support for the latest AMD Ryzen™ 9000, 8000 & 7000 Series processor, up to 65W.
CPU cooler max. height: ≦47mm.

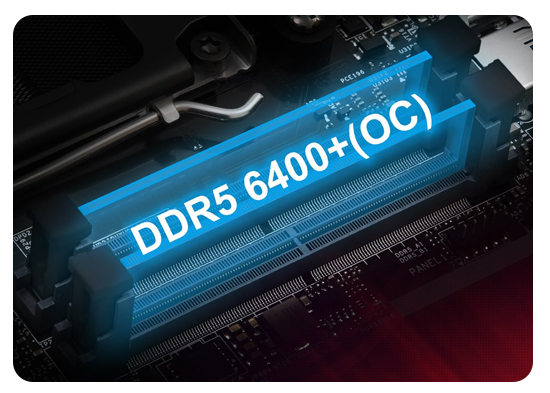

DDR5 memory performance

Insane DDR5 Memory Performance DeskMini X600 supports Dual Channel DDR5-6400+MHz (OC) memory, up to 96GB. Thanks to high speed DDR5 memory and Radeon™ Graphics, DeskMini X600 provides awesome 3D performance.

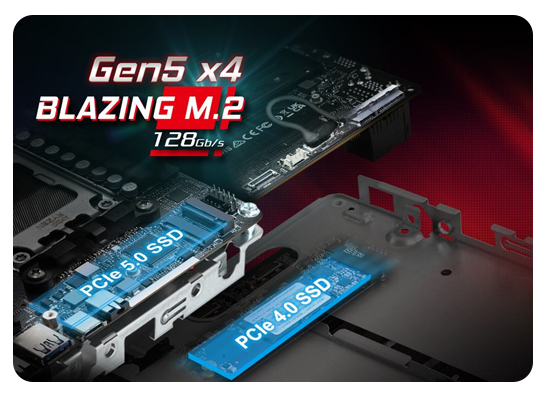

RAID 0 / RAID 1 support

Dual M.2 Slots RAID Support The ASRock DeskMini supports a total of two M.2 slots: one M.2 (2280) slot for PCIe Gen5 x4 and one M.2 (2280) slot for PCIe Gen4 x4. The M.2 SSDs support RAID 0 and RAID 1 configurations. RAID 0 enhances performance by striping data across two drives, significantly improving read and write speeds. RAID 1 mirrors data across two drives, ensuring data integrity and redundancy in case of a drive failure.

2.5 GB/s LAN

2.5 GB/s LAN The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

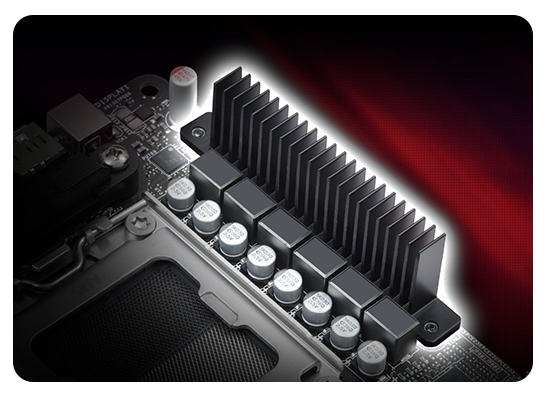

Heatsink on MOSFET

Heatsink on MOSFET ASRock DeskMini X600 features with Aluminium MOSFET Heatsink offering great heat dissipation to ensure system's stability in daily computing.

Stay Productive and Connected

Triple display

Triple DisplaysUp to three displays can be used simultaneously. With multi-screen, you can have high productivity and immersive gaming experience.

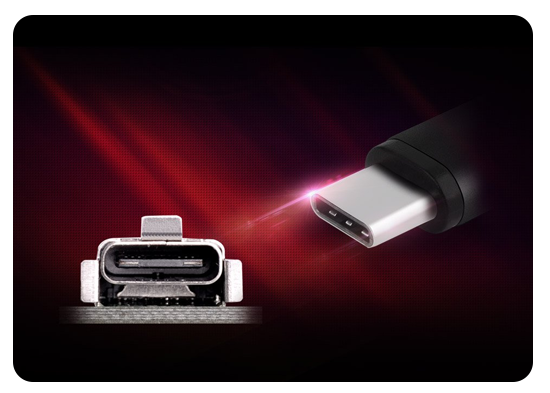

USB Type-C

USB Type-CA Type-C USB 3.2 Gen1 connector for fast charging and delivering up to 5Gbps data transfer rates.

Specifications
Edition ASRock Desk Mini X600
Form Factor mini PC
CPU Included No
CPU Type
CPU Model Supports AMD Socket AM5 Ryzen 9000/8000/7000 Series Processors
Architecture
Manufacturing Process
Unlocked CPU No
Core
No. of Threads N/A
Clock Speed N/A
Burst Frequency N/A
CPU Cache
CPU Cooler
TDP
CPU Socket N/A
Chipset AMD X600
Motherboard Form Factor Bespoke/Custom
Motherboard Model
Memory Type
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR2 - 1333(OC)
  • DDR5 - 6400+(OC)
Max. Memory Capacity 96GB (2x48GB)
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip Integrated
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface On-board
Expansion Slots
  • 1 x M.2, 22-30 (Supports WiFi/Bluetooth Cards)
  • 1 x M.2, 22-80, PCIe Gen4x4
  • 1 x M.2, 22-80, PCIe Gen5x4
SATA SATA3
HDD Storage Included No
HDD Storage Type 2x SATA HDD
HDD Storage Capacity N/A
SSD Storage Included No
SSD Storage Type M.2 PCIe NVMe SSD
SSD Storage Capacity
Optical Drive None
Drive Bays 2 x 2.5" Internal
Backplane I/O
RAID Support M.2
Internal I/O
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin System Fan Connector
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Connector
  • 1 x Internal speaker connector
  • 1 x USB 2.0 Header
Network Interface Type
Network Chip/Modules
Front Panel
  • 1 x Headphone/Mic Combo
  • 1 x Mic In
  • 1 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C

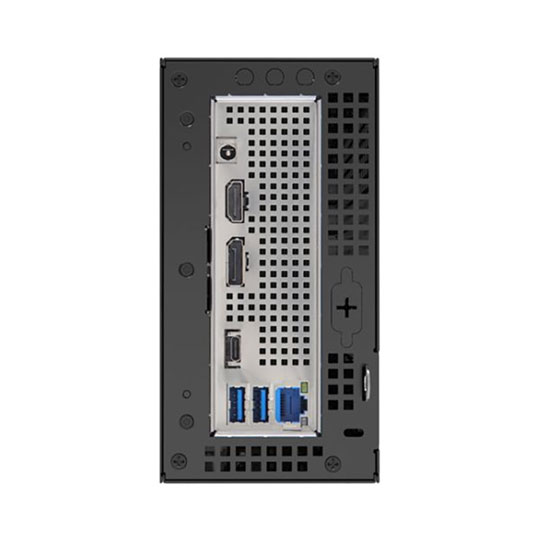

Back Panel
  • 1 x DC-In
  • 1 x RJ-45
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x USB 4.0 Type-C
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage 120 W
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour Black
Dimensions 155 x 80 x 155 (mm WxHxD)
Weight 2.2 kg
Includes 1 x UK Power Cable
Notes
Additional Information
Scan Code LN162702
Model Number 90BXG5301-A10GA0W
GTIN 4711581491519
