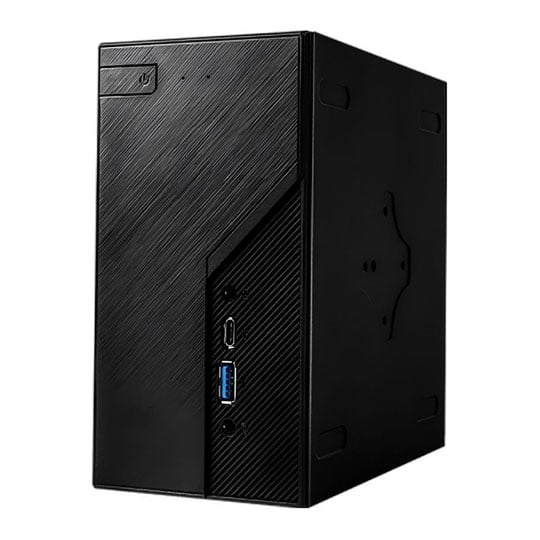

ASRock DeskMini X300 SFF Barebone Compact Mini PC
ASRock DeskMini X300 SFF Barebone Compact Mini PC
Scan code: LN145920 Manufacturer code: 90BXG3T01-A10GA0W
£159.98
Add To Basket
Get it Tomorrow, 13 OctIn stock
  • Thumbnail 1 : ASRock DeskMini X300 SFF Barebone Compact Mini PC
  • Thumbnail 2 : ASRock DeskMini X300 SFF Barebone Compact Mini PC
  • Thumbnail 3 : ASRock DeskMini X300 SFF Barebone Compact Mini PC
  • Thumbnail 4 : ASRock DeskMini X300 SFF Barebone Compact Mini PC

ASRock DeskMini X300 SFF Barebone Compact Mini PC

ASRock DeskMini X300 SFF Barebone PC, Supports AMD AM4 Socket CPUs, 2 x DDR4, 2x M.2, USB 3.2 Gen1, HDMI/DP/VGA
MORE INFO
MORE INFO

Scan code: LN145920 Manufacturer code: 90BXG3T01-A10GA0W
£159.98
£5.48 NEXT DAY DELIVERY
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
Add To Basket
Get it Tomorrow, 13 OctIn stock
  • By DPD On 14th Oct Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.79 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £14.50 / month (APR 16.9%) or 0% for 4 months
    Monthly Payment: £14.50
    Instalment Rate: 16.9% p.a. (fixed)
    Cost of purchase: £159.98
    Total inc. interest: £173.91
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £Scan.Mvc.Site.ViewModels.ProductInfo.FinanceViewModel+FinancePriceViewModel and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days. More info
Product Overview

Powerful Processing Performance

ASRock DeskMini X300 supports the latest AMD Ryzen™ 5000 G-Series desktop processors. With up to 8 cores, 16 threads, these processors deliver ultimate performance for multitask computing compared with mobile processors. In addition, with AMD Ryzen™ 5000 G-Series desktop processors, you get the world's fastest integrated graphics.


Overclocking Option in BIOS

ASRock DeskMini X300 supports overclocking options. Improve system performance by tuning the core clock and release the potential of the AM4 APU.


Insane Memory Performance

ASRock DeskMini supports Dual Channel DDR4-4000+MHz (OC) memory, up to 64GB. Thanks to high speed memory and Radeon™ Graphics, DeskMini provides awesome 3D performance.


Heatsink on MOSFET

ASRock DeskMini features with Aluminium MOSFET Heatsink provides great heat dissipation to ensure excellent performance for overclocking and system stability in daily computing.


4X Storages

ASRock DeskMini supports up to 4 Storages
• M2_1 M.2 (2280) -PCIe Gen3 x4
• M2_2 M.2 (2280) -PCIe Gen3 x2/x4
• 2x 2.5" SATA 6Gb SSD/HDD Tray


Mini Home Data Center

DeskMini supports RAID 0/1 function! Build mini data center at home!
RAID 0 -offers superior I/O performance
RAID 1 -protects critical data in mirrored data


Triple Display

DeskMini supports 3 display output simultaneously
Expanding desktop by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.


USB Type-C

A Type-C USB 3.2 Gen1 connector for fast charging and delivering up to 5Gbps data transfer rates.


Features


• AMD AM4 Socket CPU - Cezanne, Renoir, Picasso, Raven Ridge, up to 65W.
• Support MAX Height ? 46mm CPU Cooler.
• Supports Overclocking Option with X300.
• High-Speed DDR4-3200MHz Memory.
• Dual Ultra M.2 (NVMe), M2_1 M.2 (2280) – PCIe Gen3 x4, M2_2 M.2 (2280) – PCIe Gen3 x2/x4.
• 2 x 2.5" SATA 6Gb Hard Drive.
• Support RAID 0/1 function.
• HDMI, DisplayPort, D-Sub.
• M.2 For Wi-Fi Module.
• USB 3.2 Gen1 Type-C.

Specifications
Edition DeskMini X300
Form Factor Desktop
CPU Included No
CPU Type
CPU Model
Architecture
Manufacturing Process
Unlocked CPU No
Core
No. of Threads N/A
Clock Speed N/A
Burst Frequency N/A
CPU Cache
CPU Cooler
TDP
CPU Socket N/A
Chipset N/A
Motherboard Form Factor
Motherboard Model
Memory Type DDR4 SO-DIMM
Memory Included No
Memory Capacity Included N/A
Memory Edition
Memory Channels
Memory Type (ECC)
Memory Type (R/U)
Memory Speed (Mhz)
  • DDR4 - 2933
  • DDR4 - 3200
Max. Memory Capacity 64GB
On-board/Integrated Graphics No
Processor/Motherboard Graphics Chip N/A
Discrete GPU No
Discrete GPU Chipset
GPU Architecture
GPU Manufacturing Process
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface N/A
Expansion Slots
  • 1 x M.2 Key E (Supports Wi-Fi modules)
  • 2 x M.2, 22-80, PCIe Gen3x4
  • 2 x SATA 6GB/s
SATA N/A
HDD Storage Included No
HDD Storage Type
HDD Storage Capacity N/A
SSD Storage Included No
SSD Storage Type
SSD Storage Capacity
Optical Drive None
Drive Bays 2 x 2.5" Internal
Backplane I/O
RAID Support
Internal I/O
  • 1 x 4-pin CPU Fan Connector
  • 1 x 4-pin System Fan Connector
  • 1 x Chassis Intrusion connector
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x speaker header
  • 1 x USB 2.0 Header
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H (Gigabit LAN)
Front Panel
  • 1 x Headphone/Mic Combo
  • 1 x Mic In
  • 1 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C

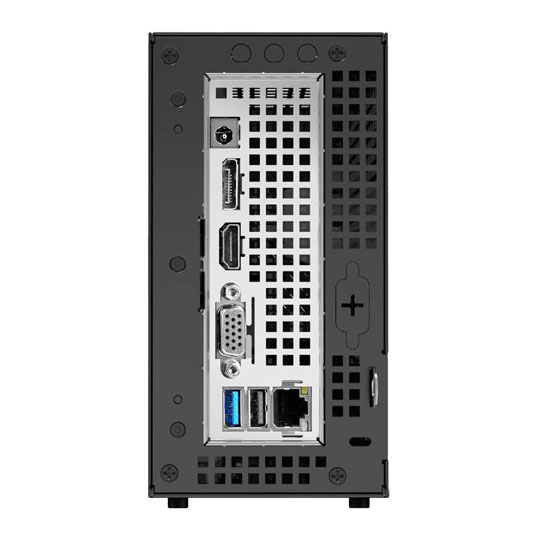

Back Panel
  • 1 x D-Sub (VGA)
  • 1 x DC-In Jack
  • 1 x DisplayPort 1.4
  • 1 x HDMI
  • 1 x RJ-45 with LED
  • 1 x USB 2.0
  • 1 x USB 3.2 Gen1 Type-A
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable N/A
PSU Wattage 120 W
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour Black
Dimensions 155 x 155 x 80 mm (mm WxHxD)
Weight
Includes
Notes
Additional Information
Scan Code LN145920
Model Number 90BXG3T01-A10GA0W
GTIN 4710483931666
