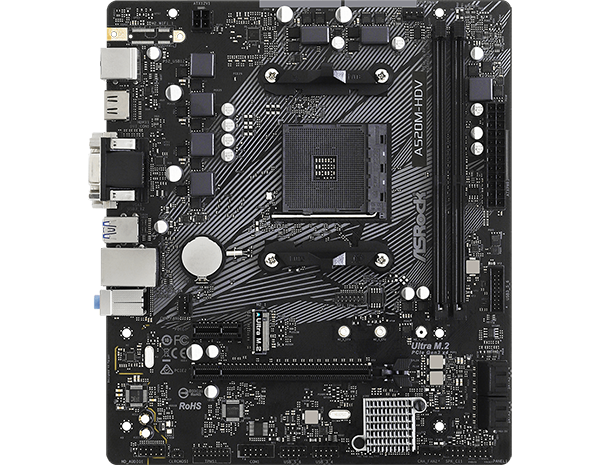

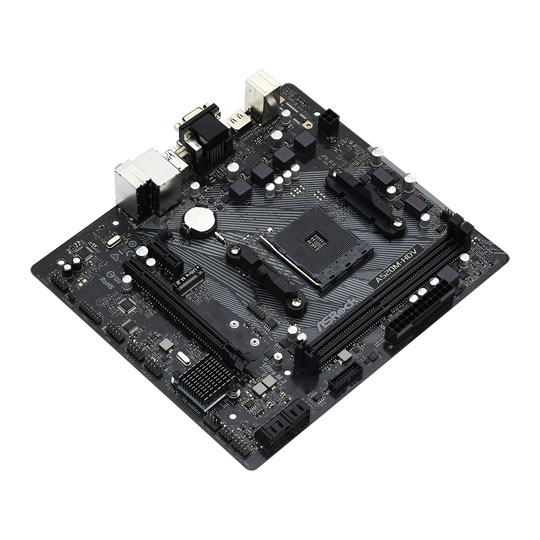

AsRock AMD A520M HDV AM4 micro-ATX Motherboard

AsRock A520M HDV, AMD A520, s AM4, DDR4, SATA3, M.2, Realtek GbE, USB 3.2 Gen1, MicroATX

Scan code: LN110278 Manufacturer code: 90-MXBE50-A0UAYZ
£52.49
£5.48 NEXT DAY DELIVERY
Order now and receive it by Wednesday, 6th November
Get it Wednesday, 06 NovIn stock
  • By DPD On 6th Nov Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.79 Collect your parcel from your newsagents, petrol stations and convenience stores
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days. More info

Frequently Bought Together

ASRock A520M HDV Motherboard for 3rd Gen Ryzen CPU's

MSI MAG A520M motherboard with Wi-Fi

All the Essentials You Need For ComputingThe ASRock A520M HDV is a great Micro ATX motherboard for professionals who command an excellent reliability for their system. Prepared with an M.2 slot that supports both SATA3 6Gb/s and four PCIe Gen3, the quality interface that excels data transfer speeds up to 32Gb/s. Featuring high quality manufactured 2oz Copper, for PCB layers providing lower temperatures and higher energy productivity for overclocking. With plenty of connectivity options, users can accomplish anything and everything.

AMD A520Chipset

AM4CPU Socket

Micro ATXForm Factor

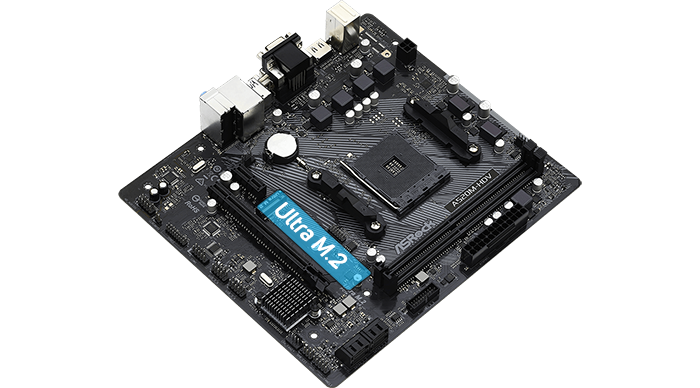

Faster Speeds with Ultra M.2

usb

Impressive data transfer speeds up to 32Gb/s The ASROCK A520 motherboard is equipped with a PCIe Gen3 x4 Ultra M.2 interface which pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

Enhance your Productivity with Three Graphics Outputs

usb

Impressive data transfer speeds up to 32Gb/s Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution. The motherboard also supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Superior Motherboard Alloy

power choke

Premium 50A Power Choke Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

pcb

SAPPHIRE BLACK PCB Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

fabric density

HIGH DENSITY GLASS FABRIC PCB ASRock features the High Density Glass Fabric PCB design, which reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Support Software and Premium Components

up

FULL SPIKE PROTECTIONSome sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

up

LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with the:
ASRock Live Update & APP Shop.

Specifications
Core Specifications
Edition A520M-HDV
Form Factor MicroATX
CPU Socket AM4
Chipset AMD A520
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2667
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4200(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4333(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4466(OC)
  • DDR4 - 4533(OC)
  • DDR4 - 4600+(OC)
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio Realtek ALC887 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DVI-D
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via RAID-0/RAID-1
Storage Mode Support
  • AHCI
  • Hot Plug
  • NCQ
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 2 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x Chassis Intrusion/Speaker Header
  • 1 x Front Panel Connector
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H-C (Gigabit LAN)

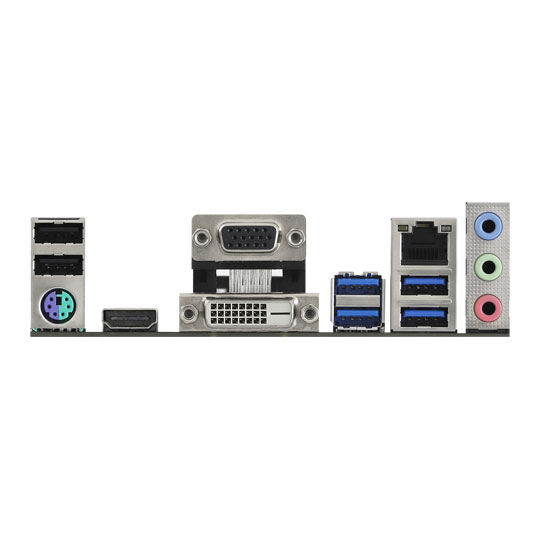

Rear I/O Connectors
  • 1 x 7.1 Audio I/O
  • 1 x D-Sub (VGA)
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45 with LED
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions
Note Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G.
Additional Information
Scan Code LN110278
Model Number 90-MXBE50-A0UAYZ
GTIN 4710483932267
