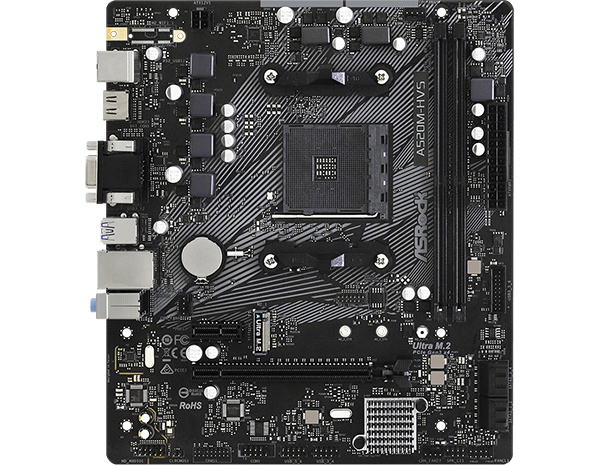

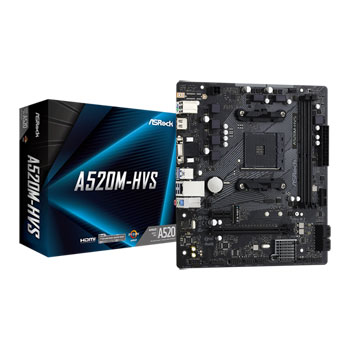

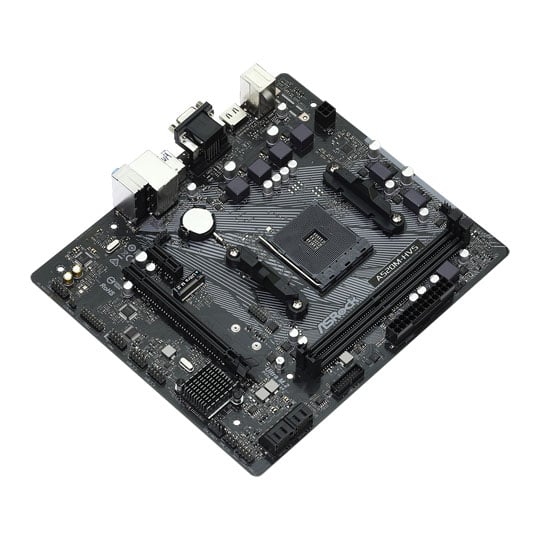

AsRock AMD A520M HVS MicroATX Motherboard

AsRock A520M HVS, AMD A520, s AM4, DDR4, SATA3, M.2, Realtek GbE, USB 3.2 Gen1, MicroATX

Thumbnail 1 : AsRock AMD A520M HVS MicroATX Motherboard Thumbnail 2 : AsRock AMD A520M HVS MicroATX Motherboard Thumbnail 3 : AsRock AMD A520M HVS MicroATX Motherboard Thumbnail 4 : AsRock AMD A520M HVS MicroATX Motherboard
Scan code: LN110279 Manufacturer code: 90-MXBE60-A0UAYZ
£52.49Item currently awaiting an ETA
Pre order
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

The Motherboard for Everyone

All the essentials you need for computing with everyday performance you can trust. Count on the AMD A520 chipset to deliver the plug and play performance and connectivity you need.

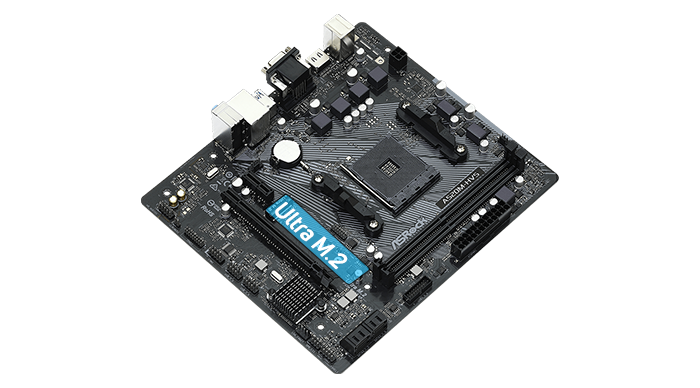

Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.


Dual Graphics Outputs

Complete with both types of most frequently used connectors! Packed with a D-Sub + HDMI combo. Plus the HDMI port supports 4K resolution.

Please Note: Supported only with processors with integrated graphics.


HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.


Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Features

• Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors(3000 and 4000 Series Processors).

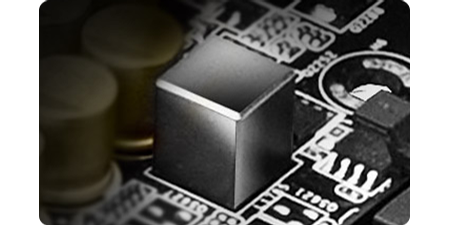

• 6 Phase Power Design.
• Supports DDR4 4733+ (OC).
• 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1.
• Graphics Output Options: D-Sub, HDMI.
• 7.1 CH HD Audio (Realtek ALC887 Audio Codec).
• 4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3).
• 6 x USB 3.2 Gen1(4 x Rear, 2 x Front).
• 6 x USB 2.0(2 x Rear, 4 x Front).
• Realtek Gigabit LAN.

Specifications
Core Specifications
Edition A520M-HVS
Form Factor MicroATX
CPU Socket AM4
Chipset AMD A520
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2667
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4200(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4333(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4466(OC)
  • DDR4 - 4533(OC)
  • DDR4 - 4600+(OC)
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio Realtek ALC887 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • D-Sub (VGA)
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
  • 1 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via RAID-0/RAID-1
Storage Mode Support
  • AHCI
  • Hot Plug
  • NCQ
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin (Power)
  • 2 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x Chassis Intrusion/Speaker Header
  • 1 x Front Panel Connector
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 1 x Realtek RTL8111H-C (Gigabit LAN)

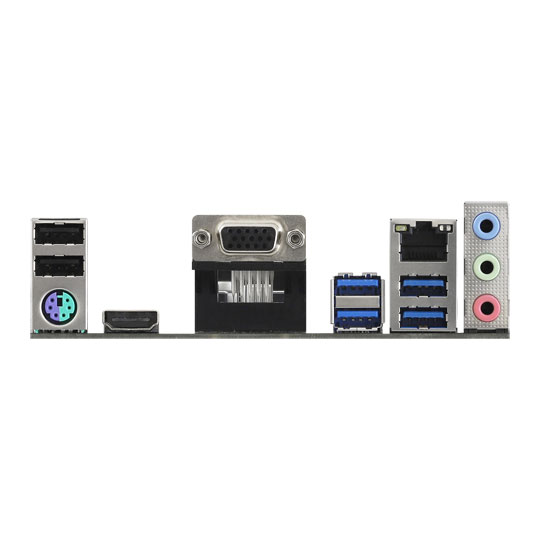

Rear I/O Connectors
  • 1 x 7.1 Audio I/O
  • 1 x D-Sub (VGA)
  • 1 x HDMI
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45 with LED
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen1 Type-A
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions
Note Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G.
