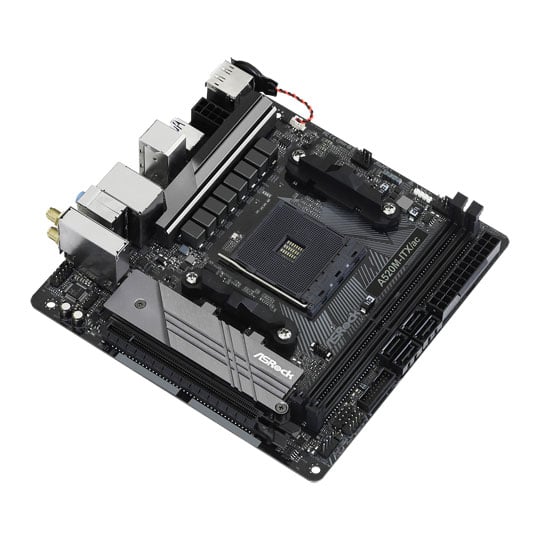

AsRock AMD A520M ITX/AC Mini-ATX Motherboard

AsRock A520M-ITX/AC, AMD A520, s AM4, DDR4, SATA3, M.2, Realtek GbE, ac WiFi, USB 3.2 Gen1, Mini-ATX

Thumbnail 1 : AsRock AMD A520M ITX/AC Mini-ATX Motherboard Thumbnail 2 : AsRock AMD A520M ITX/AC Mini-ATX Motherboard Thumbnail 3 : AsRock AMD A520M ITX/AC Mini-ATX Motherboard Thumbnail 4 : AsRock AMD A520M ITX/AC Mini-ATX Motherboard
Scan code: LN110280 Manufacturer code: 90-MXBDG0-A0UAYZ
Was: £89.99
£84.98
Order now and receive it by Tuesday, 3rd August
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 3rd Aug to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

ASRock A520M-ITX/ac motherboard with Wi-Fi

MSI MAG A520M Vector motherboard with Wi-Fi

All the Essentials You Need For ComputingThe ASRock A520M-ITX/ac is a great Micro ATX motherboard for professionals who command an excellent reliability for their system. Prepared with M.2 slot that supports both SATA3 6Gb/s and four PCIe Gen3, the quality interface that excels data transfer speeds up to 32Gb/s. Featuring high quality manufactured 2oz Copper, for PCB layers providing lower temperatures and higher energy productivity for overclocking. With on-board Dual USB 3.1 Gen 2 ports, users can accomplish double the data transfer rate.

AMD A520Chipset

AM4CPU Socket

Micro ATXForm Factor

Faster Speeds with Ultra M.2

usb

Impressive data transfer speeds up to 32Gb/s The ASROCK A520 motherboard is equipped with a PCIe Gen3 x4 Ultra M.2 interface which pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

Enhance your Productivity with Dual Graphics Outputs

usb

Impressive data transfer speeds up to 32Gb/s Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now. The motherboard also supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

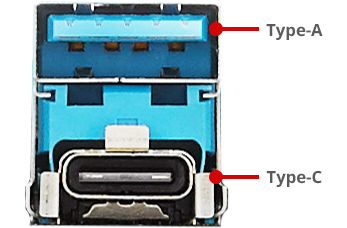

On-board Dual USB 3.1 Gen2

vr

up to 10 Gbps data transfer rates The ASROCK A520 motherboard features a pair of onboard Type-A and Type-C USB 3.2 Gen1 ports built on the rear i/o for supporting next generation USB 3.2 Gen1 devices and to deliver up to 5 Gbps data transfer rates.

Superior Motherboard Alloy

power choke

PREMIUM 60A POWER CHOKE Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

pcb

SAPPHIRE BLACK PCB Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

copper pcb

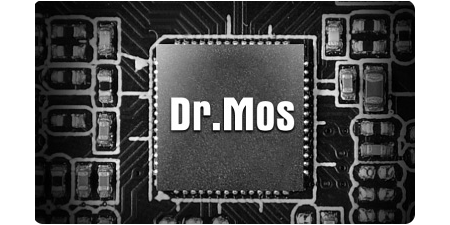

Dr. MOS Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.

fabric density

HIGH DENSITY GLASS FABRIC PCB ASRock features the High Density Glass Fabric PCB design, which reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Support Software and Premium Components

up

FULL SPIKE PROTECTIONSome sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

up

LIVE UPDATE & APP SHOPASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with the:
ASRock Live Update & APP Shop.

Specifications
Core Specifications
Edition A520M-ITX/ac
Form Factor Mini-ITX
CPU Socket AM4
Chipset AMD A520
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) ECC/Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2667
  • DDR4 - 2933
  • DDR4 - 3200
  • DDR4 - 3466(OC)
  • DDR4 - 3600(OC)
  • DDR4 - 3733(OC)
  • DDR4 - 3800(OC)
  • DDR4 - 3866(OC)
  • DDR4 - 4000(OC)
  • DDR4 - 4133(OC)
  • DDR4 - 4200(OC)
  • DDR4 - 4266(OC)
  • DDR4 - 4333(OC)
  • DDR4 - 4400(OC)
  • DDR4 - 4466(OC)
  • DDR4 - 4533(OC)
  • DDR4 - 4600+(OC)
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio Realtek ALC887 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort 1.4
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2 Key E (Occupied by Wi-Fi Module)
  • 1 x M.2, 22-80, PCIe Gen3/SATA
  • 1 x PCIe 3.0 x16
SATA Support SATA3
RAID Support via RAID-0/RAID-1
Storage Mode Support
  • AHCI
  • Hot Plug
  • NCQ
  • NVMe Boot (via M.2 PCIe Slot)
  • RAID 0
  • RAID 1
  • RAID 10
Internal I/O
  • 1 x 24-pin (Power)
  • 2 x 4-pin CHA_FAN connector
  • 1 x 4-pin CPU Fan Connector
  • 1 x 8-pin (Power)
  • 1 x Addressable Digital RGB Header
  • 1 x Front Panel Connector
  • 1 x RGB Header
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type
  • 802.11ac WiFi LAN
  • Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel 802.11ac WiFi + BT4 Module
  • 1 x Realtek RTL8111H-C (Gigabit LAN)

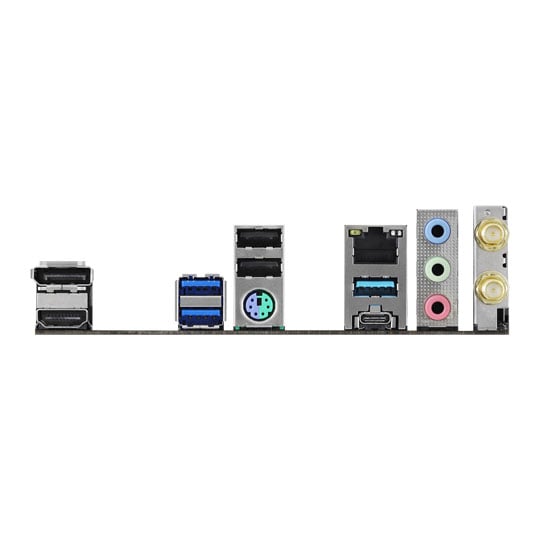

Rear I/O Connectors
  • 1 x 7.1 Audio I/O
  • 2 x Antenna Ports
  • 1 x DisplayPort 1.4
  • 1 x HDMI
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x RJ-45 with LED
  • 2 x USB 2.0
  • 3 x USB 3.2 Gen1 Type-A
  • 1 x USB 3.2 Gen1 Type-C
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions
Note Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G.
Additional Information
Scan Code LN110280
Model Number 90-MXBDG0-A0UAYZ
GTIN 4710483932045
