Corsair CS750M 750W Hybrid Modular Power Supply

750W Corsair CS750M, Hybrid Modular, 80 PLUS Gold, 1x120mm, ATX v2.92, PSU

Thumbnail 1 : Corsair CS750M 750W Hybrid Modular Power Supply Thumbnail 2 : Corsair CS750M 750W Hybrid Modular Power Supply Thumbnail 3 : Corsair CS750M 750W Hybrid Modular Power Supply Thumbnail 4 : Corsair CS750M 750W Hybrid Modular Power Supply
Scan code: LN54399 Manufacturer code: CP-9020078-UK
£84.98
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 21st Jun 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together

CS750M - Corsair Power Supply - Hybrid Modular ATX PSU

Corsair CS750M Power Supply 80PLUS - Gold

Corsair CSM 750W Power Supply

The CS750M is part of the CSM Series from Corsair, this PSU is perfect for people that low energy and noise with the bonus of a simple installation. The 750W Power Supply has an efficiency rating of 80PLUS GOLD which reduces the operating costs and excess heat. Since it generates less heat, the fan doesn’t need to work as hard, and you’ll enjoy near silent operation. The modular cables are sleeved in black and are clearly marked to make installation fast and easy.

View other CSM Series power supplies:
CS550M - CS650M - CS850M

Hybrid Modular Connectivity

Connections

CSM Hybrid Modular Cable Design

The flat, sleeved black cables are modular, so you’ll only use the cables you need and you’ll get great-looking results. The clearly-marked connectors make installation fast and straightforward.

CS750M Efficiency & Noise Graphs

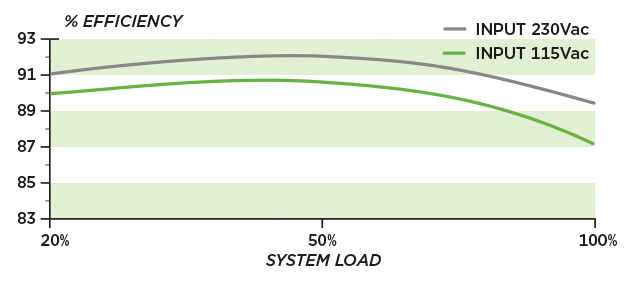

CS750M EFFICIENCY

Efficiency Graph

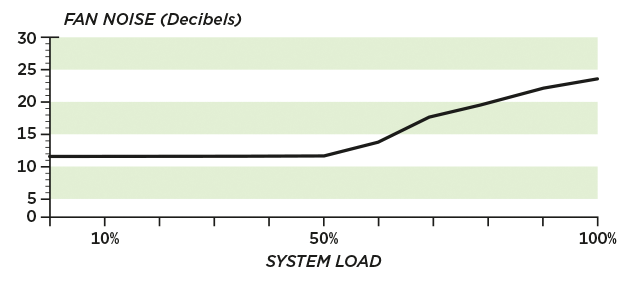

CS750M FAN NOISE

Noise Graph

Corsair CS750M Output Power Chart

Corsair CS750M ATX Power Supply
AC Input Rating DC Output Rating
AC Input: 100V - 240V DC Output +3.3V +5V +12V -12V +5Vsb
Current: 13A - 6.5A Max Load 25A 25A 62A 0.8A 3A
Frequency: 47Hz - 63Hz Maximum Combined Wattage 130W 744W 9.6W 15W
  Total Power: 750W
Specifications
Size ATX
Edition
Wattage 750 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency 92 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 62 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 62 A
Modular Yes
Modularity Hybrid Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 7 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 2 x FDD Power
  • 8 x SATA
Dimensions
Package Type
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
SCAN
Telephone:
0871 472 4747
Customers also bought
Reviews
750W Corsair CS750M, Hybrid Modular, 80 PLUS Gold, 1x120mm, ATX v2.92, PSU is rated 4.6 out of 5 by 15.
Rated 4 out of 5 by from pros and cons delivered within time box containing many parts slightly damaged in transit but survived because of Scan packing and the makers packing. It was Installed and working without a hitch however a third sata power cable would be a must for this unit, even though my ssd and hard drives sit a the side, so for back or side you only have two and makes it on the tight side,a really good product I would give it 5 stars but for the extra cable.
Date published: 2018-04-27
Rated 5 out of 5 by from excellent value ive had mine running 24/7 and its not let me down. i expect to have this a number of years. a total affordable workhorse of a psu.
Date published: 2018-03-02
Rated 5 out of 5 by from Exactly as required I brought this to replace a PSU that had just died due to extensive use, I wanted a 700+ watt supply that was gold rated so I know it wont fail me with my fairly middling gaming rig. I didn't expect to find a modular or hybrid modular supply at this price range so I was extremely pleased as it really improve airflow over the bottom of my case as a result of not having cable clutter there.
Date published: 2018-02-23
Rated 5 out of 5 by from Exelent Everything works like it should be quite i like it. Good price for good quality power supply semi modular.
Date published: 2017-12-20
Rated 5 out of 5 by from Power Supply if you need computer components look no further than scan Always The Best Service
Date published: 2017-11-10
Rated 5 out of 5 by from Excellent product I have received my order on time. Everything was perfectly protected and arrived without any damage. I would definitely order again. Express delivery. Fair prices
Date published: 2017-10-13
Rated 5 out of 5 by from Perfect Easy to install, came with all the leads + cable ties needed. Incredibly quiet fan. Highly recommend
Date published: 2017-05-06
Rated 4 out of 5 by from Does the job Works perfectly but i've noticed that mine can get quite loud, its not a psu whine as such, as it makes weird almost static-like sounds even when the pc isnt under load and barely drawing power. i've checked its seated correctly and it is, there's no vibration from the psu, just a weird and distracting noise made by it.
Date published: 2016-10-24
  • y_2018, m_6, d_18, h_19
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_15
  • loc_en_GB, sid_54399, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_scan
Questions & Answers

Is this enough for 2x R9 290

HI, Will this be able to power 2x R9 290 in a mining rig? Thanks
Asked by: Iru786
Would need to know the rest of your system specs to answer this but the recommended for that card running crossfired is 700watts but if you've got a lot of other power hungry hardware you might want 800-900 watts.
Answered by: crimsonsun
Date published: 2018-04-28

Is this sufficent to power crossifre

Will this power a 2x xtx r9 270x sufficiently
Asked by: DaveDavidson
Would need to know the rest of your system specs to answer this but the recommended for that card running crossfired is 700watts but if you've got a lot of other power hungry hardware you might want 800-900 watts.
Answered by: crimsonsun
Date published: 2018-04-28
