Corsair CS Series 850W Hybrid Modular Power Supply

850W Corsair CS850M, Hybrid Modular, 80 PLUS Gold, SLI/CrossFire, Single Rail, 70.8A, 120mm Fan, ATX PSU

Corsair
Scan code: LN60265 Manufacturer code: CP-9020086-UK Request call
Was: £109.99
£99.98
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 21st Aug 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

CS850M - Corsair Power Supply - Hybrid Modular ATX PSU

Corsair CS850M Power Supply 80PLUS - Gold

Corsair CSM 850W Power Supply

The CS850M is part of the CSM Series from Corsair, this PSU is perfect for people that low energy and noise with the bonus of a simple installation. The 850W Power Supply has an efficiency rating of 80PLUS GOLD which reduces the operating costs and excess heat. Since it generates less heat, the fan doesn’t need to work as hard, and you’ll enjoy near silent operation. The modular cables are sleeved in black and are clearly marked to make installation fast and easy.

View other CSM Series power supplies:
CS550M - CS650M - CS750M

Hybrid Modular Connectivity

Connections

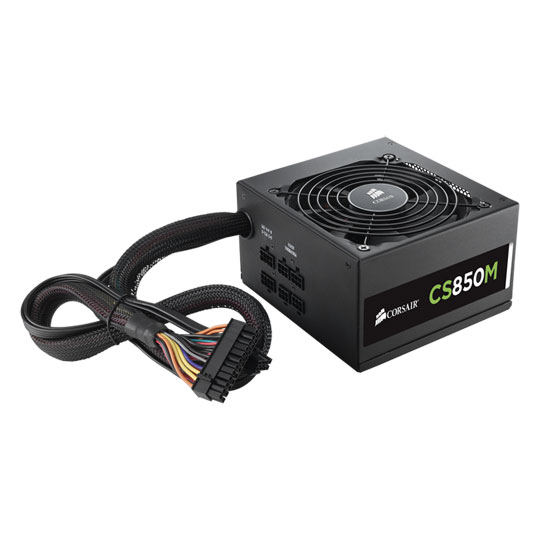

CSM Hybrid Modular Cable Design

The flat, sleeved black cables are modular, so you’ll only use the cables you need and you’ll get great-looking results. The clearly-marked connectors make installation fast and straightforward.

CS850M Efficiency & Noise Graphs

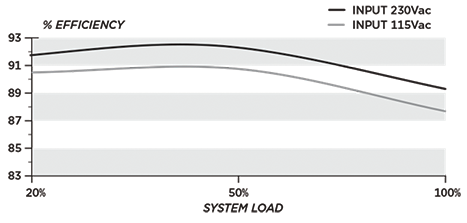

CS850M EFFICIENCY

Efficiency Graph

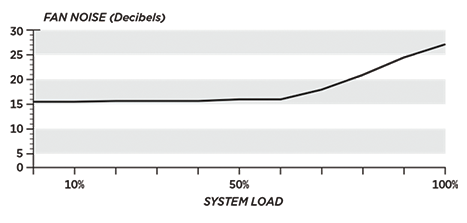

CS850M FAN NOISE

Noise Graph

Corsair CS850M Output Power Chart

Corsair CS850M ATX Power Supply
AC Input Rating DC Output Rating
AC Input: 100V - 240V DC Output +3.3V +5V +12V -12V +5Vsb
Current: 13A - 6.5A Max Load 25A 25A 62A 0.8A 3A
Frequency: 47Hz - 63Hz Maximum Combined Wattage 130W 744W 9.6W 15W
  Total Power: 750W
Specifications
Size ATX
Edition CS850M
Wattage 850 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency 92 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 70.8 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 70.8 A
Modular Yes
Modularity Hybrid Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 8 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 2 x FDD Power
  • 8 x SATA
Dimensions 150 x 86 x 160 (WxHxD)
Package Type Retail
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
SCAN
Telephone:
0871 472 4747
