Hot Seller Sale

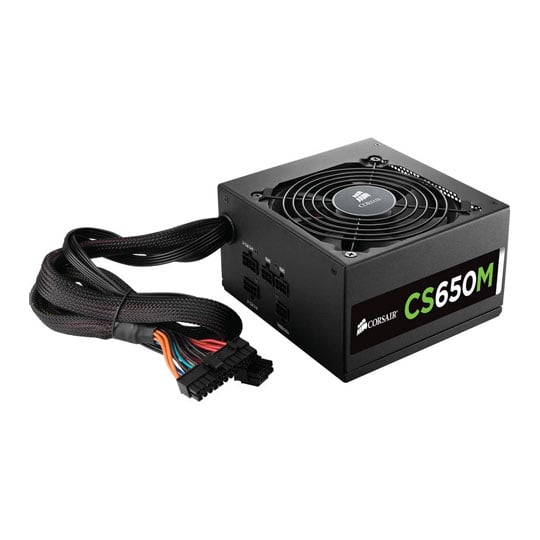

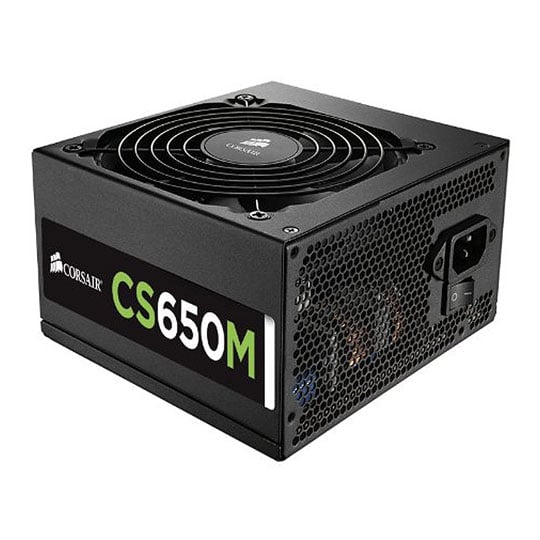

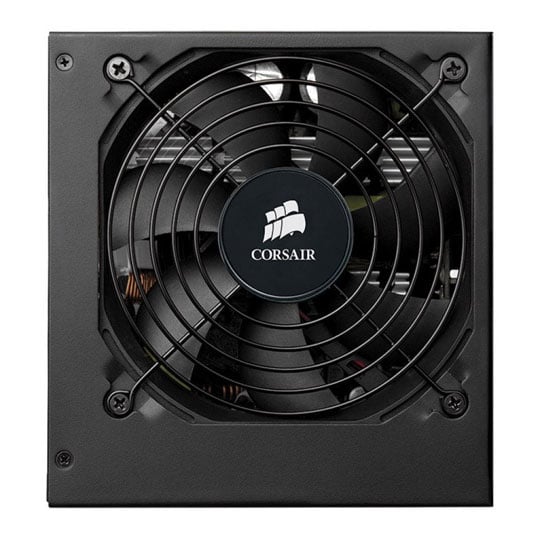

Corsair CS650M 650W Hybrid Modular Power Supply

650W Corsair CS650M, Hybrid Modular, 80PLUS Gold, 1x120mm Fan, ATX v2.92, PSU

Corsair
Scan code: LN54398 Manufacturer code: CP-9020077-UK Request call
£64.99
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 25th Aug 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Frequently Bought Together

CS650M - Corsair Power Supply - Hybrid Modular ATX PSU

Corsair CS650M Power Supply 80PLUS - Gold

Corsair CSM 650W Power Supply

The CS650M is part of the CSM Series from Corsair, this PSU is perfect for people that low energy and noise with the bonus of a simple installation. The 650W Power Supply has an efficiency rating of 80PLUS GOLD which reduces the operating costs and excess heat. Since it generates less heat, the fan doesn’t need to work as hard, and you’ll enjoy near silent operation. The modular cables are sleeved in black and are clearly marked to make installation fast and easy.

View other CMS Series power supplies:
CS550M - CS750M - CS850M

Hybrid Modular Connectivity

Connections

CSM Hybrid Modular Cable Design

The flat, sleeved black cables are modular, so you’ll only use the cables you need and you’ll get great-looking results. The clearly-marked connectors make installation fast and straightforward.

CS650M Efficiency & Noise Graphs

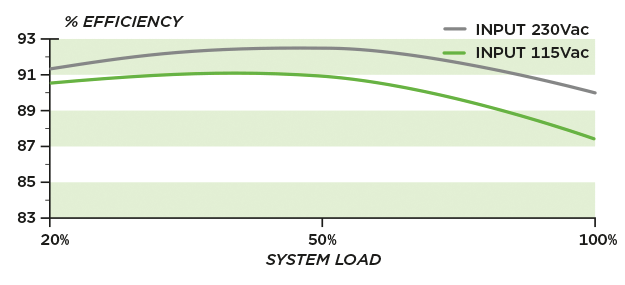

CS650M EFFICIENCY

Efficiency Graph

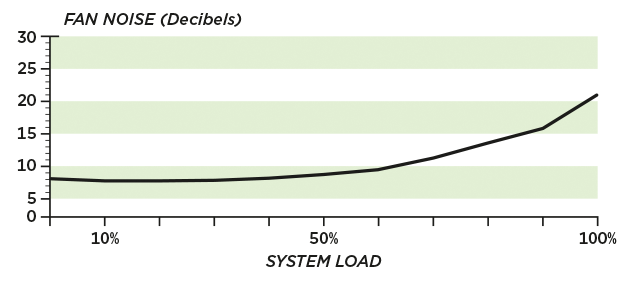

CS650M FAN NOISE

Noise Graph

Corsair CS650M Output Power Chart

Corsair CS650M ATX Power Supply
AC Input Rating DC Output Rating
AC Input: 100V - 240V DC Output +3.3V +5V +12V -12V +5Vsb
Current: 13A - 6.5A Max Load 25A 25A 51A 0.8A 3A
Frequency: 47Hz - 63Hz Maximum Combined Wattage 130W 612W 9.6W 15W
  Total Power: 650W
Specifications
Size ATX
Edition
Wattage 650 W
80 PLUS Certification 80 PLUS Gold
Max. Efficiency 92 %
Cooling Fan
Fans 1 x 120mm
Internal +12V Rails Single Rail
Rail 1 +12V 51 A
Rail 2 +12V N/A
Rail 3 +12V N/A
Rail 4 +12V N/A
Rail 5 +12V N/A
Rail 6 +12V N/A
Max. Combined Output +12V 51 A
Modular Yes
Modularity Hybrid Modular
SLI/CrossFire Yes
EPS 12V Yes
Motherboard Connector 20+4-pin
Connectors
  • 1 x 4+4-pin CPU +12V (EPS)
  • 4 x 4-pin Molex
  • 4 x 6+2-pin PCIe
  • 1 x FDD Power
  • 6 x SATA
Dimensions
Package Type
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
SCAN
Telephone:
0871 472 4747
Customers also bought
Reviews
650W Corsair CS650M, Hybrid Modular, 80PLUS Gold, 1x120mm Fan, ATX v2.92, PSU is rated 3.5 out of 5 by 11.
Rated 5 out of 5 by from Worth looking at if you want a relable, quiet PSU. There's not a lot to say about PSU's, but in a way it is one of the most important components of a system build. The amount of cards you can power, the quality of the power output and the quietness and heat generation. Of all the PSU's I have used, this has to be one of the better ones. The semi-modular design means you don't have unnecessary wires & cables to stash away out of sight yet the needed minimum mandatory cabling is hard-fixed to the PSU. The quality was above what I was expecting and was pleasantly surprised about the quality of the cables and connectors, meaning those awful multi-coloured PSU wires of old are consigned to history. If you buy this one, you wont regret it.
Date published: 2017-07-03
Rated 1 out of 5 by from Hopeless I'm a fan of Corsairs products so I got this power supply for my brand new rig. After about 3 days of use the fan would grind, click and pulsate randomly. I got an RMA through Scan which they were extremely helpful with, Corsair expected me to pay for the postage there and back for the new PSU's RMA but Scan sent me a pre-paid postage label! Scan sent me another brand new sealed PSU of the exact same model, 10 minutes after use, EXACT SAME PROBLEM. Fan grinding and clicking. I've yet to RMA this one but I will do soon. If you look at the other reviews just below mine you'll see this has become a problem with these power supplies, bad quality. I'm getting a refund this time, totally lost confidence in Corsair. Avoid these PSUs!.
Date published: 2015-11-06
Rated 1 out of 5 by from Don't waste your time! First 10 minutes after installation were great, after that it went incredibly loud and hasn't calmed down since. After the noise came about I did a quick google search to find out that loads of other people have been having the same problem. Don't waste your time and get something better!
Date published: 2015-10-29
Rated 1 out of 5 by from Do not get this power supply From my own experience and looking at review online (after purchase regrettably) I have come to a conclusion that there is a fault in the design of the power supply. The power supply is prone to coil wine. I had to get this replaced at first and at the time i only thought it was normal but now even the replacement has coil wine and looking online many people are reporting this. This specs on this PSU were very appealing especially at the price point but this only seems to be achieved by lack of quality control and use of low grade components. I repeat don't get this power supply and save you from the hassle of returning it ( now i cant use my computer again for another week and going to be behind on work )
Date published: 2015-09-27
Rated 3 out of 5 by from Connections Number of power socket connections could be improved.
Date published: 2015-02-11
Rated 3 out of 5 by from Cheap PSU It's a PSU. It powers stuff up and hasn't exploded so far. Sufficient my gaming PC
Date published: 2014-10-11
Rated 4 out of 5 by from Good value for a fully modular power supply. I got this power supply about a month ago as my last supply didn't have enough wattage. This power supply works very well with my R9 290, no problems whatsoever.
Date published: 2014-10-04
Rated 5 out of 5 by from Quality product, assured reliability A product you can install and forget, safe in the knowledge your machine will perform faultlessly.
Date published: 2014-04-02
