Yamaha StagePas 1K MkII Portable PA System
Yamaha StagePas 1K MkII 1100W Portable PA System with Digital Mixer, 125dB Max SPL, EQ Modes
Portable PA System
Yamaha - STAGEPAS 1K mkII
More Practical. More Professional. More Powerful.The Yamaha STAGEPAS 1K mkII is an all-in-one portable PA system that allows you to quickly and easily transform any location into your stage, providing professional-level audio performance with a simple setup that lets aspiring artists to focus on their music and get the most out of their performances.
Adding an even higher sound pressure level and more flexible remote functionality than its predecessor, the second-generation STAGEPAS 1K mkII features the same combination of lightweight cabinet design, professional mixing functions, and simple operability, that has taken the STAGEPAS all-in-one package further than all other portable PA systems.
By adding a built-in concert-quality mixer and speaker, Yamaha have set the new standard for portable PA by utilizing a unique experience and know-how that has been developed over decades of producing innovative, professional audio equipment from every stage of music engineering and production.
125dBMax SPL
37Hz - 20khzFrequency Response
1100WPower
Amazing Features
• Biggest in the class 12-inch subwoofer for low frequency
• 1.5-inch x10 slim line array speaker for high frequency
• High resolution SPX digital reverb (4 types, parameter control)
• Digital mixer (3 mono mic/line + 1 stereo line)
• Multi band comp “MODE” for master output
• Dedicated cover included
Simple Setup & Simple Control
focus on your performanceThe STAGEPAS 1K mkII includes a variety of sound adjustment features, including 1-knob EQ to perform multiple EQ processes simultaneously, and MODE that lets you to adjust optimized compression settings like “Speech” or “Music” to match several applications. All adjustments can be done using just one knob, making the perfect mix fast and easy without a complex workflow and letting you focus on your performance.
J-Curve Slim Line Array
Full coverageThe high-frequency speaker array is made up of 10 small-diameter 1.5-inch speakers. By employing a J-curve array configuration, the high-frequency unit achieves vertical coverage of 30° across a span of 170°.
With such a long, 10-driver array design the DXL1K delivers clear, high quality sound consistently over longer distances, projecting uniform, high-quality sound across the entire audience.
12-Inch “Compact” Subwoofer
Class-leadingThe subwoofer features a 12-inch speaker unit which is hardly “compact,” and actually the largest in its class. Despite housing a 12-inch speaker unit that is the largest in its class, the DXL1K features the smallest cabinet on the market for a subwoofer of this size and power.
By using Yamaha’s own Twisted Flare Port™ technology to reduce port wind noise that can occur with compact bass-reflex subwoofers, the low-end output is maximized, delivering very deep, powerful and distortion-free bass.
1100W Amplifier
great power & stabilityThe 1100W Class-D amplifier module is also at the top of its class for output power, capable of delivering an impressive 125 dB SPL from the deceptively compact speaker cabinet.
Just as importantly, decades-long of Yamaha's experience as a manufacturer of professional PA products, and innovator of related technologies ensure that with great power comes great stability, and that the DXL1K maintains the same accurate, superior-quality sound even at high output.
High-Grade Polyurea Coating
extremely portableThe lightweight ABS cabinet of the subwoofer features a high-grade polyurea coating to protect against wear and tear during transport.
It is light enough to make the system extremely portable, but also rugged and scratch-resistant enough to withstand challenging performance environments.
Professional Functionality

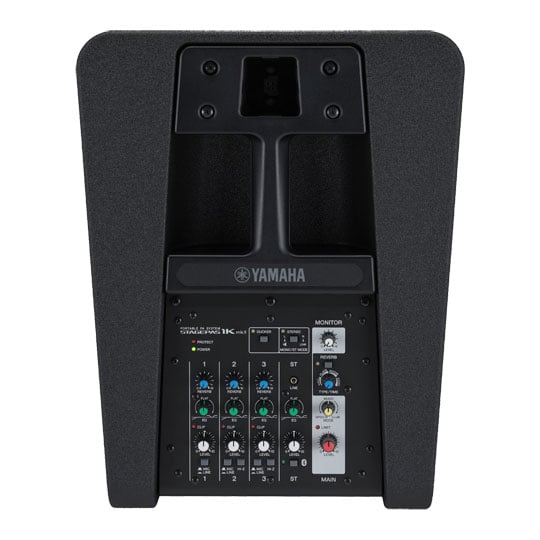

simple operationYamaha have been developing innovative digital mixers for professional engineers around the world for decades. The STAGEPAS 1K mkII’s digital mixer takes that wealth of expertise, featuring an intuitive UI that makes it possible to dial in otherwise complex operations with a single control, reducing setup time and streamlining system operation and so users can focus on their performance.

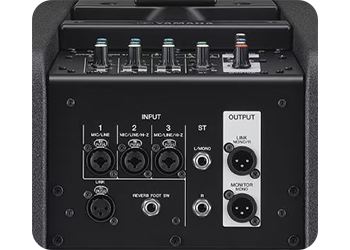

Digital mixer with versatile inputWith incredible flexibility for a PA system of this size, the 5-channel digital mixer includes three channels of mono microphone/line inputs and stereo inputs, with two of the mono input channels equipped with Hi-Z connectivity for direct input of acoustic-electric guitars and other instruments. Together with Phone and 1/8-inch mini jacks, the stereo connections support playback with Bluetooth devices as well as a wide variety of input sources from instruments to CDs, PCs and smartphones.

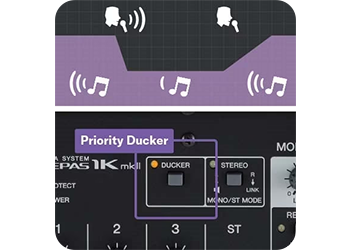

Priority DuckerSTAGEPAS 1K mkII has a “Priority Ducker” feature, which can be controlled from the STAGEPAS Controller application and also turned on/off directly from the device. An invaluable feature for applications that require both public-speaking and background music, Priority Ducker allows a microphone to automatically take priority over another sound source, just by speaking into the mic. Stop talking and the other sound source is brought back to its original level, so no console operator is required for this simple yet valuable function. You can also adjust the ducker attenuation of the sound source to suit your preferences.

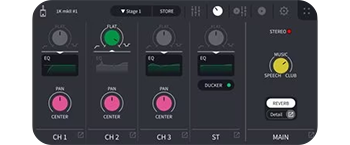

STAGEPAS ControllerWith an all-new interface, STAGEPAS Controller is a dedicated remote control application for the STAGEPAS 1K mkII that lets users adjust volume and 1-knob EQ or 4-band PEQ via Bluetooth during rehearsal or performance. You can also save the adjusted settings for certain songs or applications in order to shorten your setup process in the future and maintain consistency from one performance to the next, and even control the volume of multiple STAGEPAS 1K mkII units from within the application.

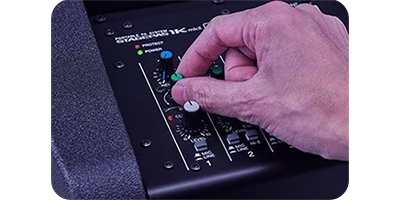

Professional Control With A Single Knob
sound shaping functionsSTAGEPAS 1K mkII comes with a range of sound shaping functions, including 1-knob EQ for optimized multi band EQ setting, industry standard SPX reverb, and the “Mode” control for master output compression settings that match various applications such as “Speech” or “Music.” Each of these functions can be set using a single knob, and have simplified many of the tough tasks like EQ and compression so you can quickly get quick sound. The optional FC5 foot switch can also be used for on/off operation.
SPX the standard digital reverbOne knob operation gives you access to four different Yamaha SPX reverb settings, ideal for vocals and acoustic instruments. Simply turn the knob to change the reverb type and time, and then you’re ready to apply just the right amount of high-resolution effect to each channel.
1-knob channel EQIf you're turning to the left to cut unnecessary low-end frequencies for speeches, or turning to the right to emphasize the bottom and high end for band performances, this innovative equalizer can dial in the perfect sound adjustment with a simple turn of the knob.
“MODE” for master outputThe multiband compressor adjusts optimized compression settings to suit various applications. By selecting MUSIC, SPEECH or CLUB MODE which is closest to your application, you can add a more professional edge to your sound without having to learn challenging compression/audio engineering techniques.
Compact Yet Powerful Package

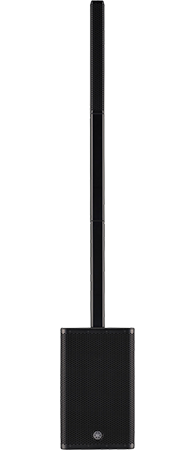

Despite its lightweight and compact cabinet construction, the STAGEPAS 1K mkII features a high-output 1100 W amplifier powering a high-frequency array speaker system with 10 x 1.5-inch drivers and a large 12-inch subwoofer, producing best-in-class sound pressure levels of up to 125 dB SPL. An impressive 170° horizontal and 30° vertical coverage delivers clear, high-quality sound consistently throughout a wide listening area.
Simple setupSimply attatch the 2 spacers and speaker unit into the subwoofer and setup is essentially done, with no cables, speaker stand, or additional gear needed beyond the main unit. All you need is in the package.
Expandable STAGEPAS systemsLinking two STAGEPAS 1K mkII or a STAGEPAS 1K mkII with a DXL1K offers improved coverage area and increased output power for large-scale performances. Both stereo and mono playbacks are supported, and when set to mono, the inputs of the two linked units can still be used.
Fitted cover includedThe STAGEPAS 1K mkII comes with its own cover which, along with protecting the unit, has pouches for both spacers and speaker array as well as additional storage for accessories to further streamline system setup and teardown.
Yamaha Portable PA System STAGEPAS 1K mkII
The Tech Spec
| Features | Specification | Type | Column PA System |
|---|---|
| Speaker Drivers | 1 x 12" LF, 10 x 1.5" HF |
| Number of Mixer Channels | 5 |
| EQ | 1-Knob EQ on Inputs |
| Effects | Reverb |
| Inputs | 3 x XLR-1/4" combo, 1 x XLR (link), 2 x 1/4" TS (L/Mono, R), 1 x 1/8" TRS |
| Outputs | 2 x XLR (link, monitor) |
| Bluetooth | v5.0 |
| Other I/O | 1 x 1/4" (footswitch) |
| Total Power | 1100W, Class D |
| Frequency Response | 37Hz - 20khz (-10db) |
| Mounting Options | Floor |
| Power Source | AC Power Cable |
| Dimensions | Width: 13.14" Height: 78.74" Depth: 16.45" |
| Weight | 50.7 lbs. |
