Yamaha DXL1K Powered Speaker System
Yamaha DXL1K Powered Speaker System To Expand Stagepas 1K MKII, 12-Inch Subwoofer, 10 x 1.5-Inch HF Speakers, 1100W
Email me when the availability or price changes
Finance this product
- From £30.64 / month (APR 16.9%) for 36 months or 0% for 4 months
- With a 10% deposit from just £21.85 / month (APR 15.9%)
- SCANPROTECT Protect against installation damage for 28 days.
Powered Speaker System
Yamaha - DXL1K

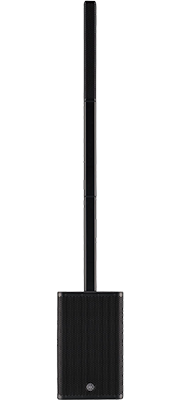

Compact Yet PowerfulThe Yamaha DXL1K is a column-type powered speaker with a powerful 125dB SPL peak@1m sound output. Made with an extremely portable slim body and the option of a dedicated carrying cart sold separately. The combination of an easy setup procedure that only requires the line-array speaker to be attached to the top of the subwoofer cabinet, with the system expandability offered by the Link function, enables the DXL1K to be used in combination with a compact mixer or with the fully compatible STAGEPAS 1K mkII, resulting in a simple, compact, and high-quality PA system.
Although it has a lightweight and compact cabinet construction, the DXL1K features a high-output 1100 W amplifier that powers a high-frequency array speaker system with 10 x 1.5-inch drivers and a large 12-inch subwoofer, offering the best-in-class sound pressure levels of up to 125 dB SPL and an impressive 170° horizontal and 30° vertical coverage. The DXL1K produces clear, high-quality sound consistently throughout a wide area.
125dBMax SPL
37Hz - 20kHzFrequency Response
1100WPower
Amazing Features
• Biggest in the class 12-inch subwoofer for low frequency
• 1.5-inch x10 slim line array speaker for high frequency
• Link in/out for expanding system
• Easy-to-use 2-Channel Mixer
• 1100W power output
• Dedicated cover included

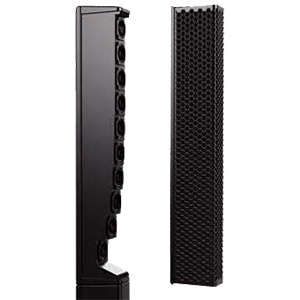

J-Curve Slim Line Array
Full coverageThe high-frequency speaker array is made up of 10 small-diameter 1.5-inch speakers. By employing a J-curve array configuration, the high-frequency unit achieves vertical coverage of 30° across a span of 170°.
With such a long, 10-driver array design the DXL1K delivers clear, high quality sound consistently over longer distances, projecting uniform, high-quality sound across the entire audience.

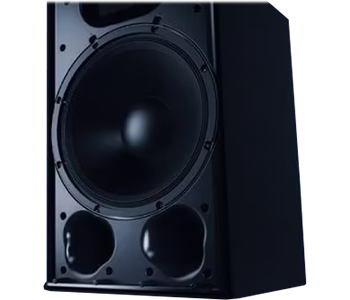

12-Inch “Compact” Subwoofer
Class-leadingThe subwoofer features a 12-inch speaker unit which is hardly “compact,” and actually the largest in its class. Despite housing a 12-inch speaker unit that is the largest in its class, the DXL1K features the smallest cabinet on the market for a subwoofer of this size and power.
By using Yamaha’s own Twisted Flare Port™ technology to reduce port wind noise that can occur with compact bass-reflex subwoofers, the low-end output is maximized, delivering very deep, powerful and distortion-free bass.

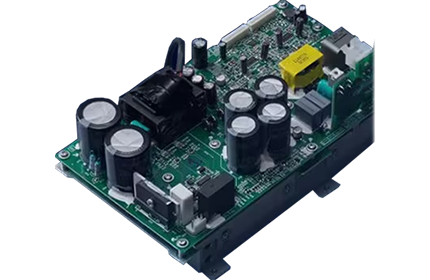

1100W Amplifier
great power & stabilityThe 1100W Class-D amplifier module is also at the top of its class for output power, capable of delivering an impressive 125 dB SPL from the deceptively compact speaker cabinet.
Just as importantly, decades-long of Yamaha's experience as a manufacturer of professional PA products, and innovator of related technologies ensure that with great power comes great stability, and that the DXL1K maintains the same accurate, superior-quality sound even at high output.

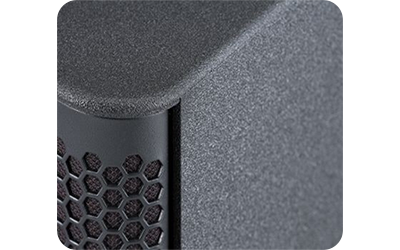

High-Grade Polyurea Coating
extremely portableThe lightweight ABS cabinet of the subwoofer features a high-grade polyurea coating to protect against wear and tear during transport.
It is light enough to make the system extremely portable, but also rugged and scratch-resistant enough to withstand challenging performance environments.
Superior Utility & Portability
The DXL1K doesn't just fill a wide area with high-quality and uniform sound, but it is also lightweight enough to be carried easily by anyone, simple enough to set up in about one minute, and durable enough to withstand tough environments.

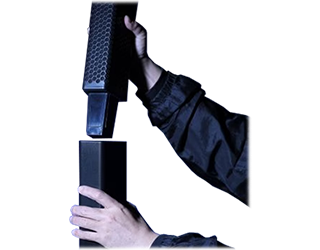

Simple setupSimply attatch the 2 spacers and speaker unit into the subwoofer and setup is essentially done, with no cables, speaker stand, or additional gear needed beyond the main unit. All you need is in the package.

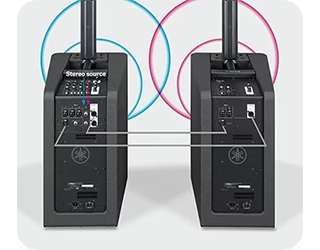

Expandable STAGEPAS systemsLinking a DXL1K and STAGEPAS 1K mkII provides greater coverage area and increased output power for large-scale performances. Both stereo and mono playback are supported, and when the STAGEPAS 1K mkII is set to mono, the inputs of the DXL1K and STAGEPAS 1K mkII can still be used (up to five mono inputs plus one stereo input).

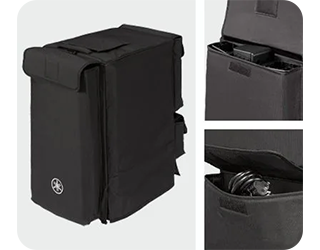

Fitted cover includedThe DXL1K comes with its own cover which, along with protecting the unit, has pouches for both spacers and speaker array as well as additional storage for accessories to further streamline system setup and teardown.
Yamaha Powered Loudspeaker DXL1K
The Tech Spec
| Features | Specification | Powered | Yes |
|---|---|
| Channels | 2-channel mixer |
| LF Driver Size | 12" woofer |
| HF Driver Size | 10 x 1.5" Line Array |
| Total Power | 1100W Peak |
| Inputs | 2 x XLR-1/4" combo |
| Outputs | 1 x XLR |
| Frequency Response | 37Hz - 20kHz |
| Crossover Frequency | 240Hz |
| Maximum Peak SPL | 125dB SPL @ 1m |
| Horizontal Coverage Angle | 170° |
| Vertical Coverage Angle | 30° |
| Mounting Options | Floor |
| Power Source | Standard IEC AC cable |
| Dimensions | Width: 13.14" Height: 78.74" Depth: 16.45" |
| Weight | 50.7 lbs. |
