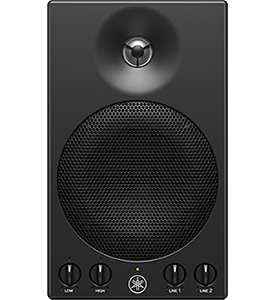

Yamaha - MSP3A
Powered Monitor Speaker (Single)
Compact Reference Monitor with Faithful Sound ReproductionThe Yamaha MSP3 versatile reference monitor has been renewed as the MSP3A, featuring a new Twisted Flare Port that provides clearer bass from a simpler, more stunning design. Featuring a 22-watt built-in amplifier, the MSP3A offers faithful sound reproduction, similar to its predecessor, it has a range of inputs and controls and is compatible with multiple optional support brackets. The MSP3A is a great choice for small studios and post-production setups, as well as also for monitoring electronic instruments and surround reproduction.
4"Driver Size
67Hz - 22kHzFrequency Response
22WOutput Power
At A Glance
• Authentic sound in a compact body
• Clear bass from unique Twisted Flare Port technology
• Mounting points for ceiling and wall mounting brackets and mic stand adaptor options
• Versatile inputs and controls
Authentic Sound In A Compact Body
Natural Reference SoundThe MSP3A features a 10 cm (3.94") woofer with a Twisted Flare Port design and a 2.2 cm (0.87") tweeter. The built-in power amp is customized for the speaker units to deliver a clear and natural reference sound.
Although the built-in amp puts out a powerful 22 watts, the MSP3 weighs only 3.6 kilograms (7.9 lbs), resulting in a portable and easy to reposition.

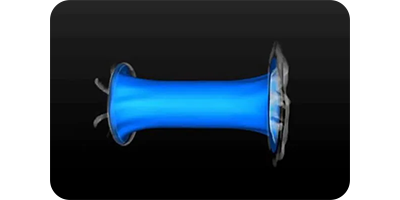

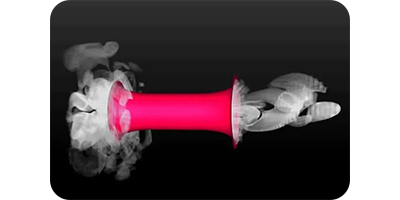

Clear Bass from Unique Twisted Flare Port Technology
The Twisted Flare Port design makes the most of the extensive subwoofer development experience. The flared, gently twisting shape diffuses the vortex of air generated around the port edge, creating smooth air flow. This reduces extraneous noise not in the original input signal and reproduces low frequencies clearly and accurately. Anything from movie special effects to live venue atmospheres, the bass remains clear, tight and realistic.
Versatile Inputs & Controls
Along with combo XLR/TRS connectors that allow direct input from a +4 dB mixer or other professional equipment, the MSP3A provides TRS and RCA jacks for convenient connection to electronic instruments and other audio devices. Tone controls allow you to shape the sound for your monitoring environment and effectively compensate for frequency imbalances caused by speaker placement or room resonance.

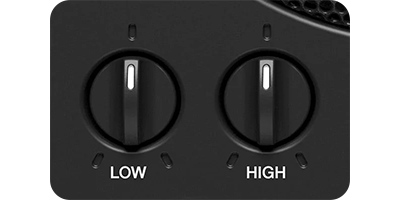

Front (Left : Tone)

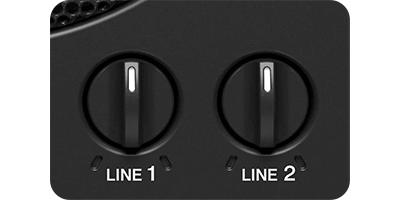

Front (Right : Level)

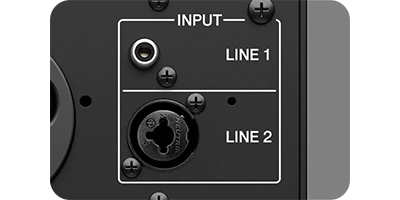

Rear (Inputs)
Yamaha MSP Studio Monitors
The Tech Spec
| Features | Specification | Speaker type | 2-way powered speaker, Bass-reflex type (Twisted Flare Port) |
|---|---|
| Frequency response (-10dB) | 67Hz - 22kHz |
| Components | LF: 4" (10 cm) Cone HFl 0.8" (2.2 cm) Dome |
| Crossover | 4kHz |
| Output power | 22W |
| Maximum Output Level (Measured peak, IEC [email protected]) | 99dB SPL |
| Input sensitivity | LINE 1 : -10 dBu, 10kΩ (RCA), LINE 2 : +4.0 dBu, 10kΩ (Combo) |
| I/O connectors | LINE 1 : RCA, LINE 2 : Combo (XLR/TRS phone) |
| Indicators | Power ON (Green LED) |
| Power requirements | May vary depending on region : 120V 50/60Hz, 110 – 120V 50/60Hz, 230V 50/60Hz, 220 – 230V 50/60Hz, 220V 50Hz, 240V 50Hz |
| Power consumption | 30W |
| Others | Level control (LINE1, LINE2); Tone control (LOW: -3.0dB - +3.0dB @100Hz, HIGH: -3.0dB - +3.0dB @10kHz) |

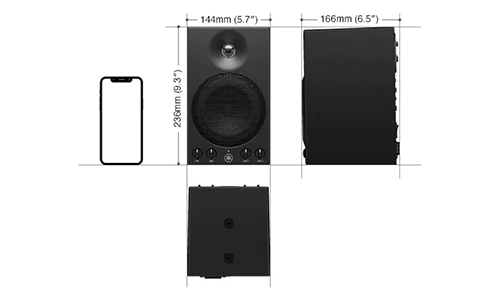

| Dimensions (WxHxD) | 144mm (5-5/8") 236mm (9-1/4") 166mm (6-5/8") |
| Net weight | 3.6kg (7.9 lbs.) |
| Accessories | Power cord, Owner's manual |
| Packaging | Single |

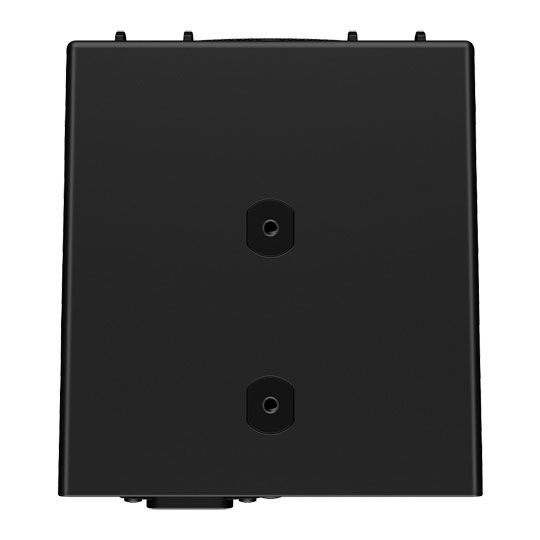

| Flying and mounting hardware | 2 x M5, Depth 15 mm (9/16") |
| Options | Mic stand adaptor BMS-10A, Free-angle clamp BAS-10, Wall mounting bracket BWS20-120 / BWS20-190, Ceiling bracket BCS20-150 / BCS20-210 |
