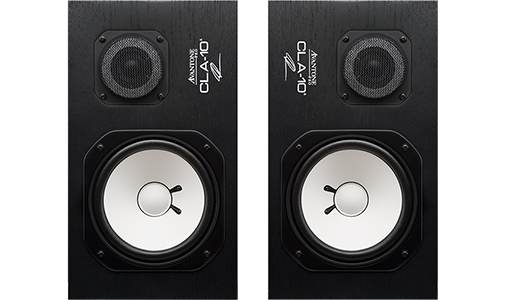

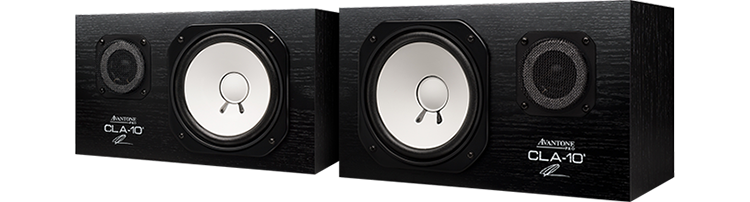

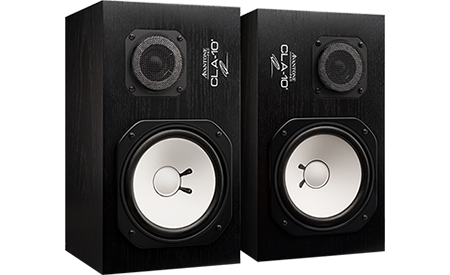

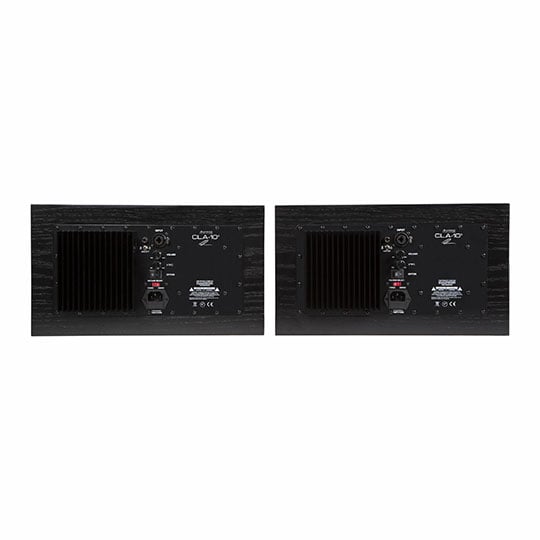

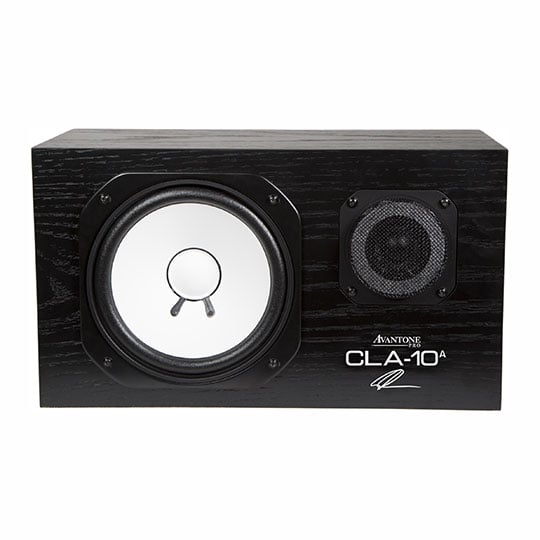

Avantone CLA-10A Monitor Speakers (Pair)

Avantone CLA-10A Active Full-Range Two-Way Monitor Speakers, 60Hz-20kHz, 104dB SPL, Ground Lift Switch

Thumbnail 1 : Avantone CLA-10A Monitor Speakers (Pair) Thumbnail 2 : Avantone CLA-10A Monitor Speakers (Pair) Thumbnail 3 : Avantone CLA-10A Monitor Speakers (Pair) Thumbnail 4 : Avantone CLA-10A Monitor Speakers (Pair)
Scan code: LN95911 Manufacturer code: CLA-10A
£1,099.49Item overdue since 05 February 2019
Pre order
From £52.78 / month (APR 14.9%)
Monthly Payment: £190.79
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,099.49
Total inc. interest: £1,144.73
Monthly Payment: £98.71
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,099.49
Total inc. interest: £1,184.45
Monthly Payment: £68.06
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,099.49
Total inc. interest: £1,225.10
Monthly Payment: £52.78
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,099.49
Total inc. interest: £1,266.58
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £27.46 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview In June 2018, Avantone Pro released the CLA-10 studio monitors, becoming the #1 selling passive studio monitor in the world. The CLA-200 power amp, which soon followed has become another success filling a void for a reasonably priced class AB studio power amp. Avantone Pro is now proud to announce the release of the CLA-10A active studio monitors.

The CLA-10A's feature the AV10MHF and AV10MLF drivers from the CLA-10 as well as cabinet construction. The CLA-10A's also feature a beefy Class A/B power amp section.

One of the most common questions asked about the CLA-10's is which version of the originals are they based on. Now we can proudly say... all of them! The CLA-10A's have an all new “VTPC” knob or “Variable Tissue Paper Control.” This VTPC allows you to simulate any thing from the Vertical “m” model to the horizontal “Studio” model and everything in between. This tone control allows each user to choose the best tweeter brightness that serves their individual needs.

Most two way active speakers use a switch mode supply and Class D amplifier. While this has proven to work well in recent years, we are still traditionalists. With the success of the CLA-10 and CLA-200 amplifier combination, we decided to stay with what engineers all over the world have come to expect from this combination. The CLA-10 Active uses a linear power supply and 200 watts of Class AB output. Yes, it requires a heatsink. Yes, it weighs more. Yes, it sounds awesome.

We use a monolithic integrated circuit Class AB amplifier with wide voltage range and high current output capability. Operating in Parallel Mode with two devices ganged together to deliver higher output power into low impedance loads, allowing better thermal performance at high power. At low power, THD is a phenomenal 0.005%; at rated load it is 0.1%, yielding excellent performance at power compared to class D amps. The circuit uses a mixed bipolar MOS high voltage technology called BCDII 100/120 which avoids secondary breakdown phenomena. This technology handles high current output without unwieldy circuit complexity and external components. This makes it possible to deliver very high power in a reasonable package with the clean, smooth sound of a linear amplifier.

The system is being run at +/-40 VDC, yielding a rock solid 200WRMS at 1kHz into 8 ohms. Rather than use a switch mode power supply with the associated noise, we decided to stay traditional with a linear power supply. The power supply uses a massive old school toroidal transformer for the classic performance of an AB amplifier. Many companies use SMPS and Class D for this type of system. We made the decision to stay with classic technology in order to maintain the legacy sound that everybody associates with this design. Features • System Type: Active Full-Range Two-Way Stereo Pair
• System Frequency Response: 60Hz-20,000Hz (Accessible Musical Range)
• Components: Low Frequency: AV10-MLF 18Cm Cone, High Frequency: AV10-MHF 3.5Cm Soft Dome
• Cabinet: 10.4 Liter Sealed Design, 18mm MDF With Real Wood Veneer
• Cabinet Dimensions: 381.5mm X 215mm X197.5mm ( 15”X 8 ½”X 7- ¾ ” )
• Weight: 8.2Kg / 18 Lbs (Each)
• Shipping Weight: 18.5 Kg / 40.5 Lbs
• SPL: 104dB
• Peak Musical Output: 110dB (Music Program Material)
• Amplifier: 200W Class Ab Linear Supply
• Thd 0.05% At 1Khz, 1W

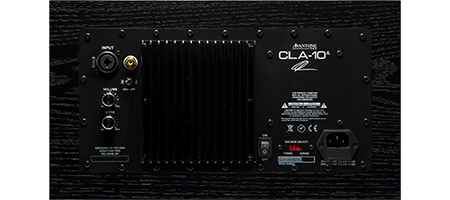

• Balanced Inputs: Combination XLR And Phone Jack
• Unbalanced Input: RCA Phono Jack
• Volume: +0dB, -120dB
• VTPC: Variable Tissue Paper Control Fc 1.8Khz +6dB, -30dB.
• Power: On/off Switch
• Ground Lift Switch
• Power: 115Vac/230Vac Selectable
• Power Consumption:
- StandBy: 3W
- Full Output: 250W
Specifications
Speaker Type Nearfield
Total Wattage (RMS) 200W
I/O Connections
  • 1 x RCA In
  • 1 x XLR/Jack Combo
Bass Port None
Frequency Response 60Hz-20,000Hz
Max SPL 104 dB
Cone Size 7 Inch
