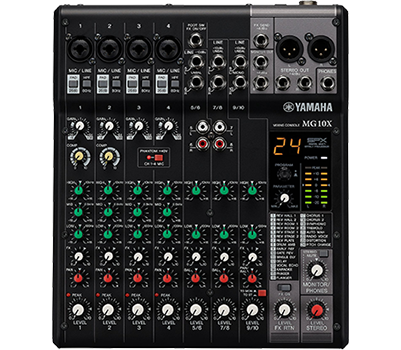

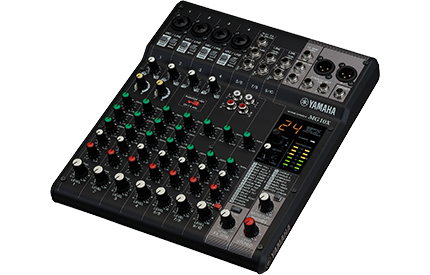

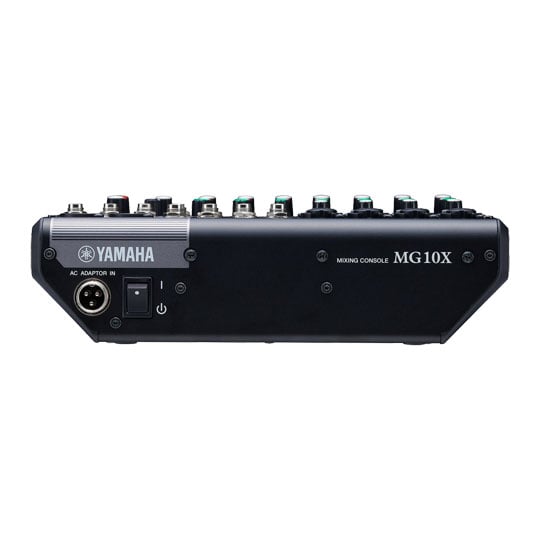

Yamaha - MG10X CV - 10-Channel Mixing Console With SPX
Yamaha - MG10X CV, 10-Channel Mixing Console: Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)/1 Stereo Bus/1 AUX
Email me when the availability or price changes
10-Channel Mixing Console With SPX
Yamaha - MG10X CV
Road Tough. Studio Ready.For over 100 years, Yamaha has been at the forefront of superior craftsmanship and innovation, all of which is clearly displayed and exemplified across the entire range of products. From an unmatched collection of world-class musical instruments to tour-grade pro audio.
Now in its 3rd generation, Yamaha’s MG Series is the manifestation of excellence in design, and showcases some of the same technologies which have been developed for use in high-end consoles, including studio-grade preamps, powerful digital processing and a tough, road-ready construction.
Featuring a highly intuitive and simple-to-use user interface, the MG Series boasts a broad range of compact mixing desks with models ranging from 6 to 20 channels, each suitable for a broad range of uses and applications. For installed, recording or live music settings, the MG Series tough construction and flexible design of this range allows you to fine-tune your sound with unbridled confidence, continuously delivering unmatched performance and a level of sound quality which is simply unrivalled in its class.
Similar to the XU models, X models feature SPX effects. Users can have wide range of applications during live sessions, along with installation cases like conference rooms, banquet halls and weddings. The X series enhance your performance and come in a stylish grey finish.
10Channels
4 x XLR-1/4" ComboMic Preamps
1 x 1/4"Headphones
at a glance
• 10-Channel Mixing Console
• Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
• 1 Stereo Bus
• “D-PRE” mic preamps with an inverted Darlington circuit
• XLR balanced outputs
• PAD switch on mono inputs
D-PRE Preamps
natural-sounding bass and smooth highsNeither the audience or the engineer wishes to listen to mics that are connected to thin, distorted or generally poor preamps. Yamaha’s MG Series mixers uniformly feature Yamaha’s ultra-transparent D-PRE preamps, which offer greater power with lesser impedance, serving up wonderfully organic sounding bass and clear highs.
D-PRE preamps offer a professional and high-grade sound, without ever adding unwanted colouration to your mix. These high-quality of these preamps ensure that you won’t need to spend hours tweaking and adjusting just to achieve an acceptable sound.
The Tech Spec
| Features | Specification | Type | Analogue |
|---|---|
| Channels | 10 |
| Inputs - Mic Preamps | 4 x Combo (TRS/XLR) |
| Phantom Power | 48V, Channels 1-4 |
| Inputs - Line | 6 x 1/4" |
| Inputs - Other | 2 x Dual RCA Stereo |
| Outputs - Main | 2 x XLR, 2 x 1/4" |
| Outputs - Other | 2 x 1/4" (Monitor) |
| Aux Sends | 1 x 1/4" (FX send) |
| Busses/Groups | 1 x Stereo |
| Headphones | 1 x 1/4" TRS |
| Other I/O | 1 x 1/4" (footswitch) |
| EQ Bands | 3-Band (High, Mid, Low) |
| Effects | SPX with 24 programs |
| Power Source | PA-10 (Power Supply Included) | Height | 2.8" |
| Width | 9.6" |
| Depth | 11.6" |
| Weight | 2.1 kg (4.63 lbs.) |
