Scan code: LN78116 Manufacturer code: CHS7UK

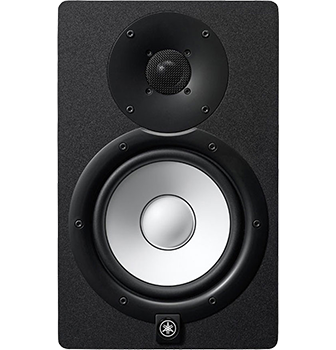

Yamaha - 'HS7' Powered Studio Monitor (Single)

Yamaha - 'HS7' 2-Way 6.5" Bi-Amped Powered Nearfield Monitor 95W, 43Hz - 30kHz, XLR And TRS Inputs (Single)

Thumbnail 1 : Yamaha - 'HS7' Powered Studio Monitor (Single) Thumbnail 2 : Yamaha - 'HS7' Powered Studio Monitor (Single) Thumbnail 3 : Yamaha - 'HS7' Powered Studio Monitor (Single)
Scan code: LN78116 Manufacturer code: CHS7UK
Order now and get it tomorrow, Thu 7th Jul
£166.00
Get it Tomorrow, 07 JulIn stock
FREE DELIVERY ON YOUR ENTIRE BASKET
From £14.27 / month (APR 5.9%) or 0% for 4 months
Monthly Payment: £14.27
Instalment Rate: 5.9% p.a. (fixed)
Cost of purchase: £166.00
Total inc. interest: £171.21
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 7th Jul to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Yamaha - HS7 (Black)
6.5" Powered Studio Monitor (Single)

yamaha hs7

2-way bass-reflex bi-amplified nearfield studio monitorFrom as early as the 1970's the instantly recognizable white cone speaker and signature sound of Yamaha's nearfield reference monitors have become a consistent industry standard for their unmatched accuracy. Different to studio monitors with added bass or treble frequencies which may sound more impressive at first, HS Series speakers were designed to give you the truest, precise reference possible, resulting in an ideal sonic platform to build on throughout the mixing process.

By joining together acquired knowledge and expertise with state-of-the-art sound technologies, Yamaha's speaker engineering team have studied and optimized every element that has contributed to making these monitors the most trusted available. The second-generation HS Series also includes a new 6.5" model to the line-up, offering its incredible accuracy to an even larger range of recording environments.

6.5"Driver Size

43Hz - 30kHzFrequency Response

95WTotal Power

At A Glance • 2-way bass-reflex bi-amplified nearfield studio monitor with 6.5" cone woofer and 1" dome tweeter
• 60W LF plus 35W HF bi-amp system for high-performance 95W power amplification
• XLR and TRS phone jack inputs accept balanced or unbalanced signals
• ROOM CONTROL and HIGH TRIM response controls

The HS Series Philosophy

yamaha hs7

Fully Natural Sound ImageStarting with the legendary NS-10M, and continuing with the MSP and previous HS Series, this new lineup shares a design pprocess that enhances sonic purity without any coloration or change to the original sound. While many manufacturers shape the sound of their monitors to make them sound more impressive, Yamaha studio monitors are designed to provide the best possible mix by keeping the sound from your speakers is true to the original. HS Series nearfield reference monitors are the result of this philosophy, delivering a consistent sound image, with high resolution, and a flat response.

Highly Efficient Transducers

yamaha hs7

The HS Series features updated transducers that achieve incredibly smooth response over a large range of bandwidth. These transducers utilize an advanced magnetic field design that regulates the flow of magnetic response, providing seamless, natural sonic transitions. Each component's materials and design were meticulously re-examined, then optimized, to greatly improve the accuracy of signal reproduction throughout the audio spectrum.

TweeterThe HS Series feature a newly designed, highly efficient 1" dome tweeter that extends the usable frequency range considerably and provides superb high-resolution sound. Utilizing a thick wave guide designed to minimize vibration the new tweeter is able to deliver smooth, distortion-free high end up to 30 kHz.

WooferWith newly designed, ultra-responsive woofers that utilize large, carefully selected magnets, HS Series monitors generate low distortion sound with a clear bottom end at any output level. All of the components in these high-power woofers, including the woofer ring and the basket further contribute to the HS Series' stunning bass while providing clear, accurate mids.

High Performance Amp Unit

HS Series speakers use an amplifier unit perfectly matched to the transducers utilized in each model of the series. Featuring bi-amp technology with an individual dedicated amp for both the woofer and the tweeter, this amplifier unit ensures that each HS Series speaker repeatedly delivers high-resolution sound with exceptionally flat response across the sound spectrum.

yamaha hs7

Low Resonance Enclosure DesignHS Series cabinets are made to eliminate unwanted resonance and increase the accuracy of sound reproduction to their utmost limit. The enclosures are constructed from a very dense and resilient MDF with a damped acoustic response that is perfectly suited for reference monitors. From Yamaha's over 100 years of piano design experience, HS Series engineers also used a traditional three-way mitered-joint technique. As a popular architectural design, this construction firmly anchors the corners of the enclosure to dramatically improve durability and eliminate unwanted resonance that can influence overall sound.

yamaha hs7

Cutting Edge Noise Reduction TechnologySpeaker port design can make a big difference to the clarity of overall sound. Often a vortex at the either end of the port can generate air vibrations inside of the port, causing unwanted noise. By using advanced noise reduction technology that incorporates a thorough analysis of a visual representation of the sound, Yamaha's engineers are able to control and reduce the vortex. Using this in-depth analysis has resulted in the ideal port design, and a reduction of audible noise up to 6dB. The utilization of this state-of-the-art technology allows HS Series studio monitors to meet the demands of more strict professional production environments.

yamaha hs7

Controls & ConnectivityHS Series full-range models feature two response controls with complex settings that allow them to adapt to the surface acoustics of rooms of varying shape and size. ROOM CONTROL allows you to shape the unnatural, exaggerated low-end that can often take place when speakers are placed next to walls, while HIGH TRIM allows for more flexible control of high frequency response. For inputs, HS full-range speakers can accommodate a wide range of balanced and unbalanced sources including mixers, keyboards and audio interfaces with XLR and TRS phone jacks.

With the HS8S subwoofer, HIGH CUT control sets the cutoff frequency of subwoofer output high-frequency attenuation from 80Hz to 120Hz, while PHASE switch adjusts the phase of the subwoofer output. The LOW CUT switch and LOW CUT controls allows attenuation of low frequencies for output between 80Hz and 120Hz. The HS8S subwoofer features XLR and TRS phone jacks for inputs and XLR for outputs.

Yamaha Powered Studio Monitor Speaker "HS Series"

The Tech Spec

Features Specification
Powered Yes
Power Configuration Bi-amped
LF Driver Size 6.5"
LF Driver Type Cone
HF Driver Size 1"
HF Driver Type Dome
LF Driver Power Amp 60W
HF Driver Power Amp 35W
Total Power 95W
Frequency Range 43Hz-30kHz
Crossover Frequency 2kHz
Input Types 1 x XLR, 1 x 1/4" TRS
Enclosure Type Rear Ported
Enclosure Material MDF
Dimensions Height: 13.1"
Width: 8.3"
Depth: 11.2"
Weight 18.1 lbs.
Specifications
Speaker Type Nearfield
Total Wattage (RMS) 95
I/O Connections
  • 1 x 6.35mm (1/4") Jack Input
  • 1 x XLR In
Bass Port Rear
Frequency Response 43Hz - 30kHz
Max SPL
Bass Cone Size 6.5 Inch
Additional Information
Scan Code LN78116
Model Number CHS7UK
GTIN 4957812533027
