10" 2-way Powered Loudspeaker

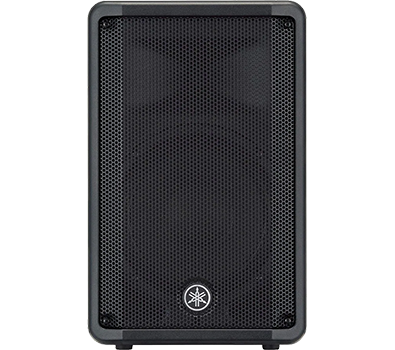

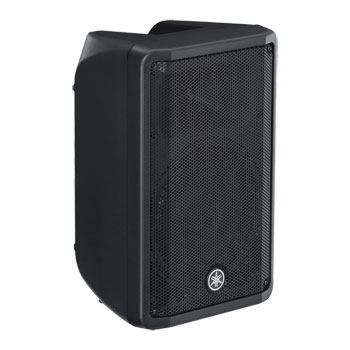

Yamaha - DBR10
POWER TO PLAYThe Yamaha DBR Series loudspeakers are built to deliver powerful, high-quality sound with an un-matched economy of transport and setup time wherever the music takes you. As the most portable powered loudspeakers Yamaha have to offer, the versatile DBR Series feature the same state-of-the-art Yamaha DSP and amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at all output levels.
Comprised of 10”, 12” and 15” models, each DBR loudseaker is built within a newly designed, durable, lightweight cabinet optimized for FOH sound, floor-monitoring and even rigged applications. If you're powering your band’s live performance, DJ-ing a party, or MC-ing an event, the DBR Series speakers will to take your performance to the next level.
The DBR10 is the most compact model in its series and in its class. Capable of delivering a maximum SPL of 129dB from its small enclosure, the DBR10 can be used as a utility speaker in a range of environments.
700WTotal Power
55Hz - 20kHzFrequency range
10"Speaker Size
at a glance
• FIR-X tuning provides incredible sound quality with high resolution and a smooth frequency response
• Onboard mixer allow you to select both a direct output or a mixed output
• D-Contour optimizes the DBR10 for main speaker or floor monitor use
• DSP-controlled protection functionality enables optimum reliability
Enhanced Performance Features

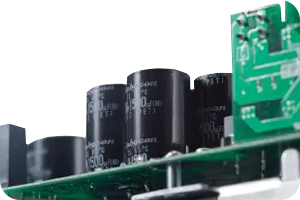

High-Efficiency 700W Class-D AmplifiersThe DBR's lightweight, high performance Class-D amplifier is capable of producing up to 700W of power, achieving an SPL of 129dB, delivering remarkable clarity and dynamic characteristics.

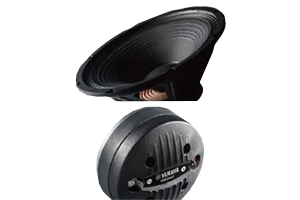

Custom Designed TransducerThe high power output woofers provide well-defined, powerful bass with minimal distortion, while the 1" precision compression driver produces clear mid-range and high frequencies.

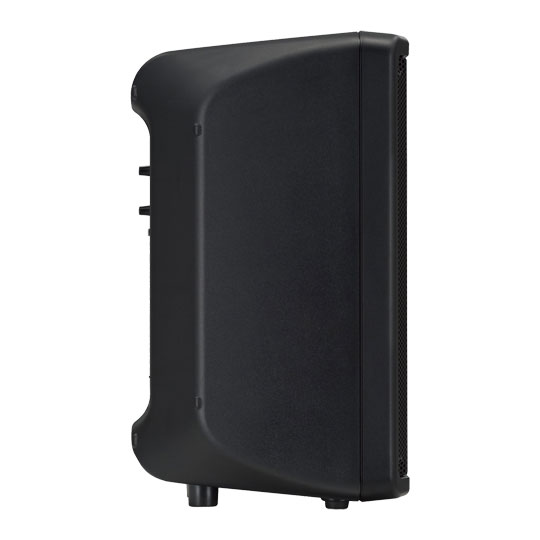

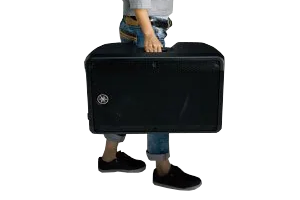

A Rugged, Highly Portable CabinetDBR Series speakers feature a compact, lightweight, and durable plastic cabinet which gives the highest level of portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while a newly designed ergonomic handles make for easy transportation and system setup.

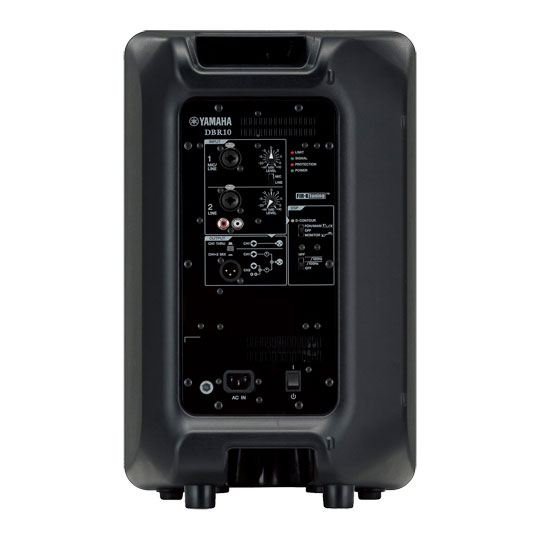

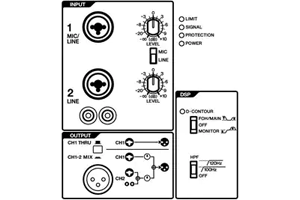

Easy-to-use Onboard 2-Channel MixerDBR Series speakers feature two input channels. CH1 has a combo jack which takes both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.

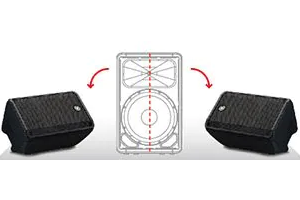

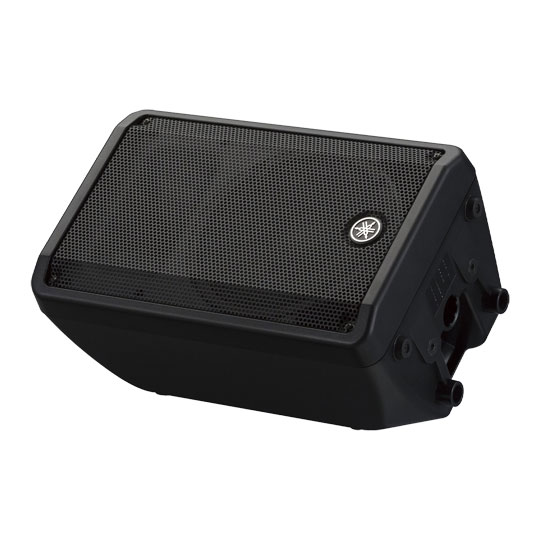

Smart Enclosure Design for Floor MonitoringDBR Series speakers feature an optimized 50°wedge angle for floor monitoring. In addition the DBR12 and DBR15's symmetrical shape enables effortless configuration of a mirror-mode floor monitoring system in either symmetrical or stereo sound field setups.

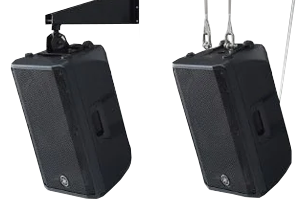

Rigging Points for Installation ApplicationsDBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts (not included).
Yamaha Powered Loudspeakers DSR/DXR/DBR/DXS
The Tech Spec
| Features | Specification | Powered | Yes |
|---|---|
| Power Configuration | Bi-amped |
| LF Driver Size | 1 x 10" |
| HF Driver Size | 1" |
| LF Driver Power Amp | 500W |
| HF Driver Power Amp | 200W |
| Total Power | 700W |
| Inputs | 2 x XLR/TRS Combo, 1 x Stereo |
| Outputs | 1 x XLR |
| Frequency Range | 55Hz-20kHz (-10dB) |
| Crossover Frequency | 2.1kHz |
| Maximum Peak SPL | 129dB |
| Horizontal Coverage Angle | 90 Degrees |
| Vertical Coverage Angle | 60 Degrees |
| Enclosure Material | Plastic |
| Mounting Options | Pole Mount with 1.37' socket, Floor Wedge, 2 x M8 Fly Points |
| Power Source | Standard IEC AC cable |
| Dimensions | Width: 12.1" Height: 19.4" Depth: 11.4" |
| Weight | 23.2 lbs. |
