Scan code: LN126223 Manufacturer code: CDBR15UK

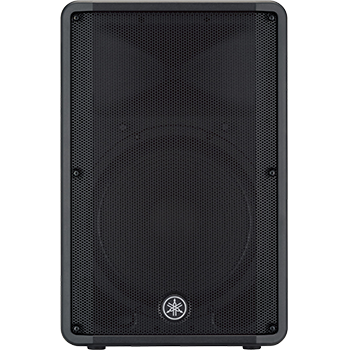

Yamaha - DBR15 Active Loudspeaker

Yamaha - DBR15, 12" 2-way Powered Loudspeaker, Onboard Mixer, FIR-X Tuning, DSP-Controlled Protection

Thumbnail 1 : Yamaha - DBR15 Active Loudspeaker Thumbnail 2 : Yamaha - DBR15 Active Loudspeaker Thumbnail 3 : Yamaha - DBR15 Active Loudspeaker Thumbnail 4 : Yamaha - DBR15 Active Loudspeaker
Scan code: LN126223 Manufacturer code: CDBR15UK
Order in the next 48 mins and get it tomorrow
Get it Tomorrow, 21 MayIn stock
From £20.14 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £52.10
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £575.00
Total inc. interest: £625.11
Monthly Payment: £28.08
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £575.00
Total inc. interest: £673.79
Monthly Payment: £20.14
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £575.00
Total inc. interest: £724.80
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £15.28 / month (APR 19.9%)
Delivery Options
  • By DPD On 21st May to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

15" 2-way Powered Loudspeaker
Yamaha - DBR15

Yamaha DBR15

POWER TO PLAYThe Yamaha DBR Series loudspeakers are built to deliver powerful, high-quality sound with an un-matched economy of transport and setup time wherever the music takes you. As the most portable powered loudspeakers Yamaha have to offer, the versatile DBR Series feature the same state-of-the-art Yamaha DSP and amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at all output levels.

Comprised of 10”, 12” and 15” models, each DBR loudseaker is built within a newly designed, durable, lightweight cabinet optimized for FOH sound, floor-monitoring and even rigged applications. If you're powering your band’s live performance, DJ-ing a party, or MC-ing an event, the DBR Series speakers will to take your performance to the next level.

The DBR15 achieves best-in-class SPL of up to 132dB and provides the lowest frequency in its lineup. The DBR15 delivers incredible performance for the main front-of-house sound for the live performance or DJ events that require highly prominent low and more power.

1000WTotal Power

50Hz - 20kHzFrequency range

15"Speaker Size

at a glance • FIR-X tuning provides incredible sound quality with high resolution and a smooth frequency response
• Onboard mixer allow you to select both a direct output or a mixed output
• D-Contour optimizes the DBR10 for main speaker or floor monitor use
• DSP-controlled protection functionality enables optimum reliability

Enhanced Performance Features

Class-D Amplifiers

High-Efficiency 100W Class-D AmplifiersThe DBR's lightweight, high performance Class-D amplifier is capable of producing up to 1000W of power, achieving an SPL of 132dB, delivering remarkable clarity and dynamic characteristics.

Custom Designed Transducer

Custom Designed TransducerThe high power output woofers provide well-defined, powerful bass with minimal distortion, while the 1" precision compression driver produces clear mid-range and high frequencies.

Highly Portable Cabinet

A Rugged, Highly Portable CabinetDBR Series speakers feature a compact, lightweight, and durable plastic cabinet which gives the highest level of portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while a newly designed ergonomic handles make for easy transportation and system setup.

Onboard 2-Channel Mixer

Easy-to-use Onboard 2-Channel MixerDBR Series speakers feature two input channels. CH1 has a combo jack which takes both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.

Smart Enclosure Design

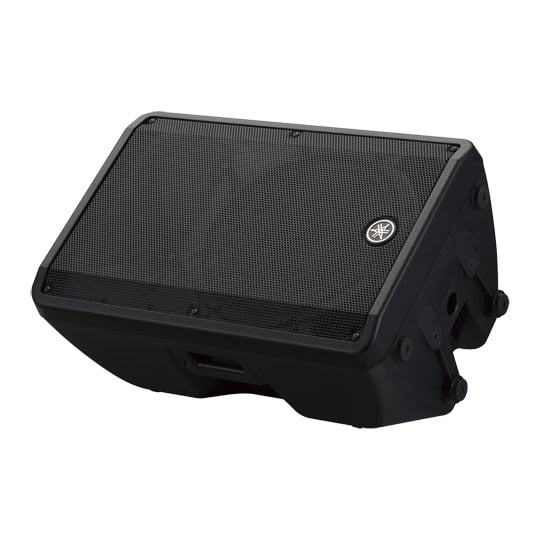

Smart Enclosure Design for Floor MonitoringDBR Series speakers feature an optimized 50°wedge angle for floor monitoring. In addition the DBR12 and DBR15's symmetrical shape enables effortless configuration of a mirror-mode floor monitoring system in either symmetrical or stereo sound field setups.

Rigging Points

Rigging Points for Installation ApplicationsDBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts (not included).

Yamaha Powered Loudspeakers DSR/DXR/DBR/DXS

The Tech Spec

Features Specification
Powered Yes
Power Configuration Bi-amped
LF Driver Size 1 x 15"
HF Driver Size 1.4"
LF Driver Power Amp 800W
HF Driver Power Amp 200W
Total Power 1000W
Inputs 2 x XLR/TRS Combo, 1 x Stereo
Outputs 1 x XLR
Frequency Range 50Hz-20kHz (-10dB)
Crossover Frequency 2.1kHz
Maximum Peak SPL 132dB
Horizontal Coverage Angle 90 Degrees
Vertical Coverage Angle 60 Degrees
Enclosure Material Plastic
Mounting Options Pole Mount with 1.37" socket, Floor Wedge, 3 x M8 Fly Points
Power Source Standard IEC AC cable
Dimensions Width: 17.9"
Height: 27.6"
Depth: 14.9"
Weight 42.6 lbs.
Number of Input Channels 2
Frequency Response -3dB N/A
Frequency Response -10dB N/A
Max SPL 132 dB
Power rating (Peak) 1000 Watts (Peak)
Power rating RMS 465 Watts (RMS)
Speaker size 15 Inches
Enclosure Type Composite
Dimensions 700 x 455 x 378
Net weight 19.3 KG
Shipping weight 0 KG
  • 2 x RCA Phono
  • 2 x XLR / Jack Combi
Connectivity (Output) 1 x XLR
Colour Black
Bluetooth No
Battery Powered No
Wifi No
App control No
Rigging Points Yes
Pole Mountable Yes
Integrated Bracket No
Sub Woofer No
Built in DSP Yes
Front of House Yes
Floor Monitor Yes
Additional Information
Scan Code LN126223
Model Number CDBR15UK
GTIN 003403446741
