Warm Audio WA-14 Condenser Microphone
Warm Audio WA-14 Large Diaphragm Condenser Microphone, Three Polar Patterns, 20Hz to 20kHz, Cinemag USA Transformer
- SCANPROTECT Protect against installation damage for 28 days. More info
Warm Audio - WA-14
Large Diaphragm Condenser Microphone
An Authentic RecreationThe Warm Audio WA-14 is a classic condenser microphone inspired by the early 1970's microphone used on multiple hit records. The WA-14 features a custom all-brass CK12-style capsule, CineMag USA transformer, and a completely discrete signal path. The WA-14 can be used on a range of sources, such as; punchy/warm intimate lead vocals, acoustic/electric guitars, bass, drums/percussion, strings/orchestral material, and many more. The WA-14 offers a realism and thickness that stays true to the vintage microphone, but now at a much more accessible price.
150ΩImpedance
20Hz - 20kHzFrequency Range
150dBMax SPL
Amazing Features
• Large Diaphragm Condenser Microphone With Variable Pad And Three Polar Patterns
• Features Custom WA-12-B-60V Edge-Terminated, Dual-Backplate, All-Brass Vintage CK12-Style Capsule
• Polar Patterns: Cardioid, Figure Of Eight And Omnidirectional
• Custom CineMag USA Transformer
All Brass Capsule
consistent & reliableThe WA-12-B-60V is an all-brass, edge-terminated capsule that captures all the smoothness, top end clarity, and warm vintage character of the original CK12 capsule. The WA-12-B-60V uses a variant CEK-12 back plate as a basis, which overcomes manufacturing limitations of the original CK12 capsule.
The o-ring and housing of the WA-12-B-60V are all made from brass (no teflon parts), and the diaphragm is 24k gold sputtered 6 micron, NOS PET film (mylar). Resulting in a very consistent, reliable capsule which matches the frequency response and tonality of the classic 1970's classic capsule.
Born Out Of Need
Years of researchWhen designing their first microphone Warm Audio knew that the single greatest challenge would be to create a capsule that was built to a high standard and priced in a range that every-day musicians and engineers could afford. They already knew where to find great microphone transformers, precision resistors, polystyrene, tantalum and WIMA film capacitors; but came to realize that a quality affordable microphone capsule that met the right specifications simply wasn’t available. So they had to develop their own line of capsules.
The WA (Warm Audio) brand of capsule is the product of multiple years of research, a lifetime of listening, and a passion for great sound. Above all else, Warm Audio capsules came from the desire to give customers far more quality/value than what they are used to getting in an affordable microphone. Every Warm Audio capsule is made in the same small assembly house in a clean-room environment, and packaged in its own protective jewel case until the moment it is loaded into the microphone. Every capsule visually inspected and electrically tested for imperfections.
Every capsule is also made with all brass parts (no teflon or other cost saving material), and is carefully skinned from the same supply of high purity NOS Mylar (PET film). Knowing with confidence that you will be just as pleased with their microphone capsules as Warm Audio are to offer them, ensuring they will give you a lifetime of great recordings and enjoyment.
Warm Audio // Dave Fenley "Turn The Page" (Bob Seger Cover)
The Tech Spec
| Features | Specification | Microphone Type | Condenser |
|---|---|
| Polar Pattern | Cardioid, Figure-8, Omnidirectional |
| Diaphragm Size | 1" (25.4mm) |
| Frequency Range | 20Hz-20kHz |
| Max SPL | 150 dB SPL |
| Output Impedance | 150 ohms |
| Pads | -10dB, -20dB |
| Colour | Black with silver grille |
| Connector | Gold Plated XLR |
| Power Source | 48V phantom power |

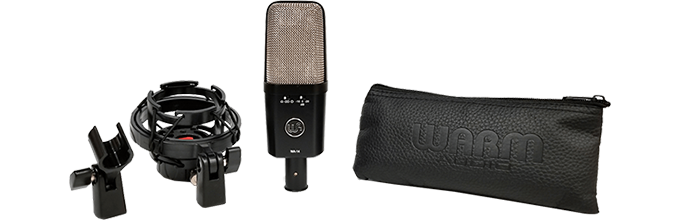

| Included Accessories | Shockmount, Soft Zippered Case |
| Dimensions | 7" x 2.5" x 1.75" |
| Weight | 1 lb. |
