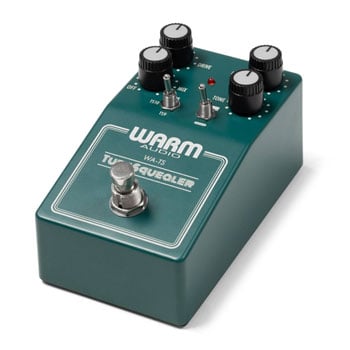

Warm Audio Tube Squealer Pedal
Warm Audio - Tube Squealer Pedal, Three Classic Overdrives, Pickup Voicing Switch
Email me when the availability or price changes
Finance this product
- From £14.41 / month (APR 16.9%) for 12 months or 0% for 4 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
Suggested Alternatives
Warm Audio - Warmdrive, Amp-In-A-Box Overdrive PedalWarm Audio Warmdrive Guitar Pedal
LN130349
No customer review

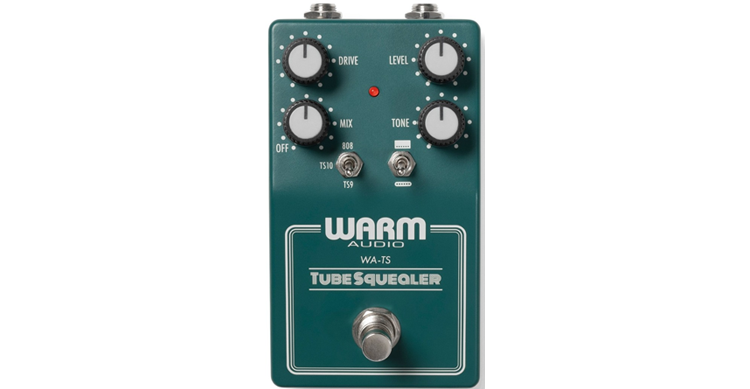

Warm Audio - Tube Squealer
The Most Played Overdrive Of All TimeThe Tube Squealer faithfully recreates not one, not two, but three of the most famous flavors of the most played overdrive pedal of all time. While there are seemingly countless revisions and tributes, the venerable original 808, TS9, and TS10 versions of the circuit have famously been used by iconic guitar players like Stevie Ray Vaughan, John Mayer, Slash, John Frusciante and many more. Like all three original pedals, Tube Squealer delivers that classic amp-driving tone with all the nuance of the different circuits to support all types of playing - from edge of breakup blues, to searing metal solo boosts.
Three Legendary Circuits, All The Classic ModsTube Squealer has three distinct signal paths for the 808, TS9, and TS10 settings. Switching to any setting delivers the authentic version of that circuit, not a simple re-voicing. The 808 delivers the earliest version of the circuit with breakup and grit. The TS9 delivers that added drive and compressed tone that dominated the 80s and beyond. TS10 revives a previously underrated circuit known for buttery smooth tones that add that famed ‘sparkle’ to any rig. Tube Squealer adds previously celebrated mods as permanent features with the mix knob allowing for clean signal blending, and the pickup voicing switch, which changes the midrange emphasis to better suit humbuckers and lower-midrange heavy pickups.
At a glance
• Three Classic Overdrive Circuits in One
• Mix Knob for Clean/Drive Blending
• Pickup-Voicing Selector
• External Voltage Booster for Headroom
• Premium Analog Design & Bypass Options
Introducing Tube Squealer | Faithful Recreation Of 3 Screaming Overdrives With Rig-Ready Features
The Tech Spec
| Features | Specification | Controls | Level Drive Tone Mix Pickup-Voicing Selector Circuit Selector Voltage Boost Bypass Selector |
|---|---|
| Components | ICs: 2x (Including JRC4558 Op-Amps) Discrete Transistors: 3x JFETs Diodes: 4x Voltage Supply: Switch Cap Voltage Doubler |
| Power Consumption | Standard Mode: 12mA Boosted Mode: 25mA |
| Input Sensitivity | Input Impedance: 500kΩ |
| Outputs | Max Output Level: +2.1dBu @ 9V | +9dBu @ 18V |

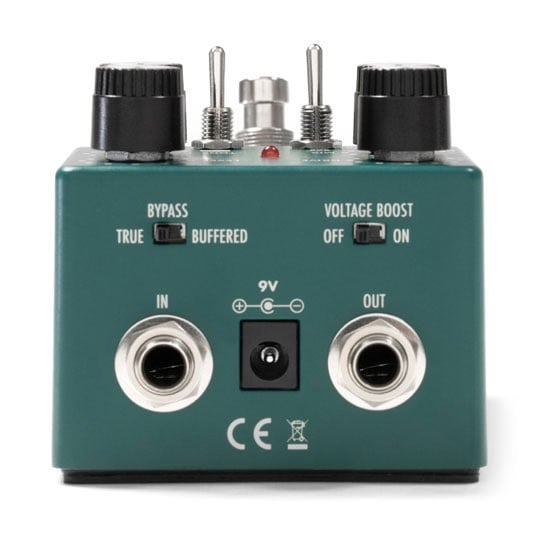

| Jacks | Connections: Input & Output + 9V Center-Negative Power |
| Weight/Dimensions | Width: 5.1" Height: 2.75" Depth: 2.63" Weight: 1 Lb |
