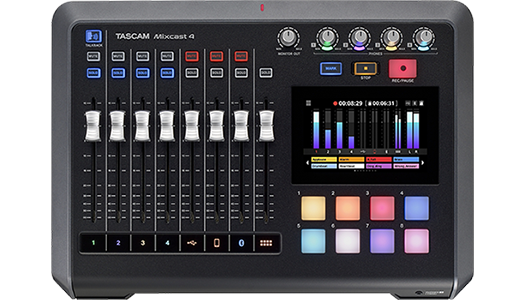

Tascam - 'Mixcast 4' Podcast Recording Console

Tascam - 'Mixcast 4' Podcast Recording Console With Built-In Recording/USB Interface

Thumbnail 1 : Tascam - 'Mixcast 4' Podcast Recording Console Thumbnail 2 : Tascam - 'Mixcast 4' Podcast Recording Console Thumbnail 3 : Tascam - 'Mixcast 4' Podcast Recording Console Thumbnail 4 : Tascam - 'Mixcast 4' Podcast Recording Console
Scan code: LN119383 Manufacturer code: Mixcast-4
Was: £529.00
£499.00
FREE DELIVERY ON YOUR ENTIRE BASKET
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
From £17.05 / month (APR 14.9%)
Monthly Payment: £44.80
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £499.00
Total inc. interest: £537.58
Monthly Payment: £23.96
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £499.00
Total inc. interest: £574.79
Monthly Payment: £17.05
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £499.00
Total inc. interest: £613.69
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 21.9% and may be even lower.

Representative Example:

Purchase Rate: 21.9% p.a. (variable)

Representative: 21.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £12.46 / month (APR 15.9%)
Delivery Options
  • By DPD On 18th Oct to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Podcast Recording Console
Tascam - 'Mixcast 4'

tascam mixcast 4

Audio creation made easyThe Tascam Mixcast 4 is a one-stop workstation that allows recording and mixing of audio sources without complicated settings. It offers all the audio-related operations and workflow needed for live-streaming, events, podcasts, and other uses. In addition to allowing content to be assigned to the internal touchpads, the included TASCAM Podcast Editor software will enable smooth and easy track arming, effects assignment, audio editing and more with no expertise required.

Podcasts, live streams, events, or voice overs are easy with Mixcast 4, this workhorse will record mic inputs, internal sounds and music via the trigger pads, and external audio from your phone or PC. From pre-production to post-production, the TASCAM Podcast Editor software offers a complete solution, including waveform editing and sound pad control.

At A Glance • Production of podcasts with up to four people: 4 mic inputs with auto-mix, 4 headphones outputs
• Mix-Minus to include call-ins with echo-free audio via Bluetooth, USB input or 4-pole TRRS audio cable
• Fully compatible with the dedicated Tascam Podcast Editor software
• Built-in USB audio interface with 14 inputs and two outputs
• Easy and intuitive control using a 5-inch touchscreen

Stress-Free Touch Panel Control

tascam mixcast 4

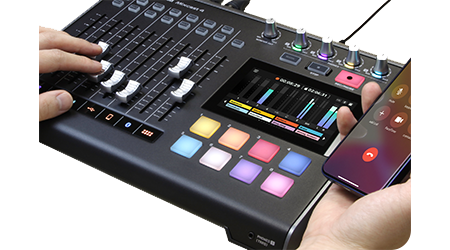

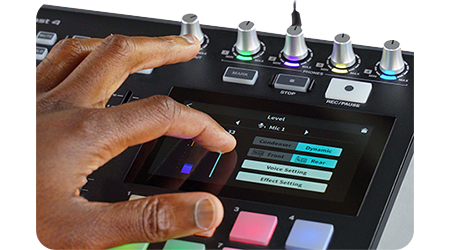

5-inch colour touch screenThe Mixcast 4 features four mic inputs and four individual outputs, so it is always ready for podcast production without requiring a complex set up.

The auto-mixing function, for example, can automatically adjust levels and set mic priority for a perfect mix when used for live-streaming, events, podcasts, and other applications.

With the 5-inch colour touch screen, you can access the well-structured menu and easily make the desired settings with just a few simple steps.

A Complete Workstation

tascam mixcast 4

all the functions you needIn addition to recording audio and mixing recorded audio, the Mixcast 4 features multiple convenient features, such as 14-track recording straight to the unit's SD card or Bluetooth audio input.

There is also an Aux input available for mixing and recording phone conversations (with mix-minus) as well as USB connectivity for adding sound from a computer. You can even use Mixcast 4 with your favourite DAW software as a 14-in/2-out USB audio interface.

Real-Time Sound Effects

tascam mixcast 4

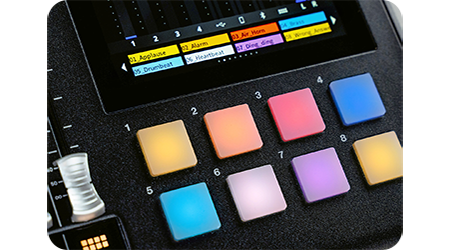

Enhanced contentThe Mixcast 4 features eight banks of completely customisable, illuminated sound pads which can be used during a podcast production or live broadcast.

Alongside preset sound effects, users can easily assign new sounds, music or even mic sounds that have been pre-recorded on the device.

The Mixcast 4 sound pads also allow for simple and on-time voice effects, for example, pitch transformation, reverb and more to make live streams and recordings even more enjoyable.

Tascam Podcast Editor Included

back

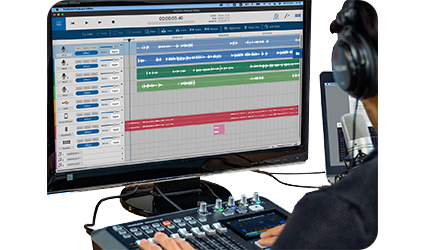

post-editing controlThe Tascam Podcast Editor gives you simple and practical editing of audio content, track arming, along with easy configuration and assignment of sound effects and background music to the sound pads.

Without needing expert knowledge on DAW software, the Podcast Editor also offers intuitive graphics that assist users in recording audio easily using the Mixcast 4. Tascam Podcast Editor is created specifically for Mixcast 4 and is available for both computers and mobile devices.

The Tech Spec

Features Specification
Recording media SD cards (64 MB – 2 GB)
SDHC cards (4–32 GB)
SDXC cards (48–512 GB)
Recording/playback format WAV, 48 kHz, 24 bit, 2-channel stereo / 14-channel poly (BWF)
Approximate recording times with 16-GB SD card (in hours:minutes) Stereo recording: 16:30
14-track recording: 2:20
Mic inputs 1-4 XLR/TRS combo jacks
XLR-3-31 (1: GND, 2: HOT, 3: COLD)
6.3-mm standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level: +10 dBu (when LEVEL at min.)
Nominal input level: −10 dBu (when LEVEL at min.)
Minimum input level: −76.5 dBu (when LEVEL at max.)
Gain range: 66.5 dB
Input impedance: 2.1 kΩ
Headset input (TRRS, CTIA standard) 3.5-mm, 4-pole mini jack
Maximum input level: +4 dBV (when LEVEL at min.)
Nominal input level: −16 dBV (when LEVEL at min.)
Minimum input level: −82.5 dBV (when LEVEL at max.)
Gain range: 66.5 dB
Input impedance: 2 kΩ
Line input (TRRS, CTIA standard) 3.5-mm, 4-pole mini jack
Maximum input level: +8 dBV
Nominal input level: −12 dBV
Input impedance: 12 kΩ
Line inputs L/R (balanced) 6.3-mm standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level: +24 dBu
Nominal input level: +4 dBu
Input impedance: 11 kΩ
Phones outputs 1-4 6.3-mm standard stereo jacks
Maximum output power: 45 mW + 45 mW (0.1% THD+N or less, 32 Ω)
Headset output (TRRS) 3.5-mm, 4-pole mini jack (signal mirrors Phones 1 output)
Line output (TRRS, CTIA standard) 3.5-mm, 4-pole mini jack
Maximum output level: −25 dBu
Nominal output level: −45 dBu
Output impedance: 100 Ω
Monitor output L/R (balanced) 6.3-mm standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum output level: +20 dBu
Nominal output level: 0 dBu
Output impedance: 200 Ω
Line output 3.5-mm stereo mini jack
Maximum output level: +6 dBV
Nominal output level: −14 dBV
Output impedance: 200 Ω
USB port USB Type-C connector
Formats: USB 2.0 High Speed, USB Audio Class 2.0, USB Mass Storage Class
Equivalent input noise, mic inputs ≤−125 dBu (150 Ω termination, LEVEL at max.)
Frequency response (mic inputs 1–4) 20 Hz – 20 kHz: ±0.3 dB (JEITA)
S/N ratio (mic inputs 1–4) 101 dB (channel faders at 0, 20 kHz SPCL LPF, A-weighted)
Distortion (mic inputs 1–4) 0.003 % (1 kHz sine wave, channel faders at 0, 20 kHz SPCL LPF)
Crosstalk ≥95 dB
Bluetooth Output class: Class 2 (approx. 10 m* unobstructed transmission distance)
Supported profile: A2DP
Supported A2DP codecs: SBC, AAC
Supported A2DP content protection: SCMS-T
Computer hardware requirements Windows: Windows computer with a USB 2.0 (or higher)
CPU/processor speed: 2 GHz or faster dual core processor (x86)
Memory: 2 GB or more

Mac: Mac computer with a USB 2.0 (or higher)
CPU/processor speed: 2 GHz or faster dual core processor
Memory: 2 GB or more
Power supply Dedicated AC adapter (PS-P1220E NUT), DC 12 V
Power consumption 12.5 W (maximum)
Weight 2.55 kg
Permissible operating temperature range 0–40 °C
Dimensions (W × H × D) 375 mm × 57 mm × 264 mm (excluding protrusions)
375 mm × 71 mm × 267 mm (overall)
Specifications
Total Channels 4
Max Mic Inputs 4
Computer Interface USB 2
Mixer Type Digital
Computer Interface Channels 0
Total Aux Channels 1
Subgroups 0
Max Line Inputs 4
Analogue Insert Points No
Direct Channel Outputs 4
Internal FX No
Flying Faders No
Additional Information
Scan Code LN119383
Model Number Mixcast-4
GTIN 4907034133444
