Tascam DR-07XP Portable Recorder
Tascam - DR-07XP Stereo Handheld Audio Recorder with USB Audio Interface and Adjustable Microphones
Email me when the availability or price changes
Stereo Handheld Audio Recorder

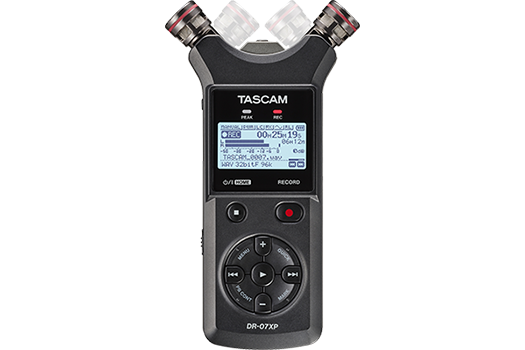

Tascam - DR-07XP

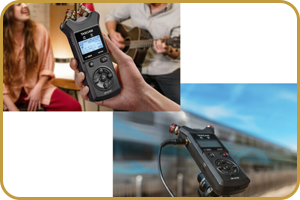

Professional Audio Recordings From the Palm of Your HandThe Tascam DR-07XP is a portable handheld recorder that makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation and more. With 32-bit float recording mode, you’ll never need to worry about setting audio levels, and adjustable stereo condenser microphones give you full control over your sound. With easy one-handed operation, the DR-07XP makes it easy to start recording with very little setup time.
Amazing Features
• Two-channel portable handheld audio recorder with microSDXC card storage
• 32-bit float resolution ensures low-noise, distortion-free recordings
• Built-in condenser microphones handle loud environments and sources (up to 125 dB SPL)
• 2-in/2-out USB-C audio interface for recording directly to your computer
• More than 17 hours operation with two AA alkaline batteries
32-Bit Float Mobile Recording

Capture Pro-Level
Recordings Every TimeWith its 32-bit float recording mode, the DR-07XP ensures your audio recordings will always be clear, distinct and free of distortion that could ruin your recording – and you’ll never need to worry about setting input levels.

Adjustable Stereo
Condenser MicrophonesThe DR-07XP features stereo condenser microphones with adjustable A-B or X-Y configurations, allowing you to capture incredibly vivid stereo recordings in any setting.

Simplicity

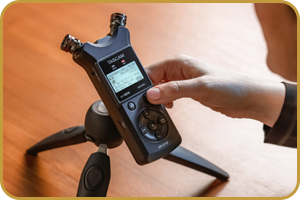

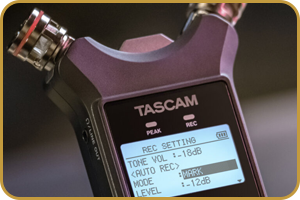

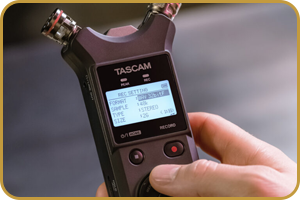

in Your PalmWith the DR-07XP, the complications of audio recordings are a thing of the past. Easily access every feature from the palm of your hand. Plus, the backlit LCD screen means no squinting, just clear and concise navigation any time of day, in any environment.

Your Portable

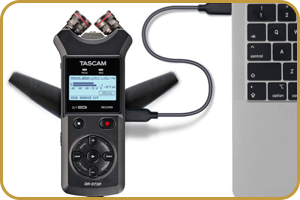

Recording StudioThe DR-07XP isn’t only a powerful portable recorder — it’s also a 2-in/2-out USB-C audio interface you can use to record anywhere, directly to audio recording software on your Mac or PC.

Ideal
for MusiciansThe DR-07XP is a fantastic portable recording solution for musicians with its high-quality microphones, 32-bit float recording, built-in tuner, reverb, overdubbing and more.

On

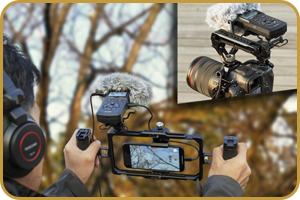

locationWith its compact size, the DR-07XP can travel anywhere for exceptional field recording. Choose from three different low cut filter options for getting rid of unwanted noises. As a companion for video, the DR-07XP can attach easily to tripods and the Auto Tone output for cameras makes post-production a simple task.
User-Friendly Design

Record Anything, AnywhereFrom dialogue to vlogs, whether you’re in an alley or a recording booth, the DR-07XP captures clear, crisp audio with ease. In addition to the built-in mics, use the stereo mini-jack to add microphones with plug-in power or external line inputs to capture audio from any source in mono or stereo.

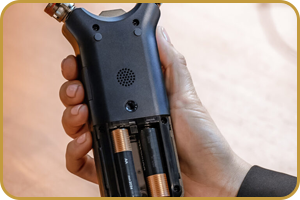

Long Battery LifeWith up to 17½ hours of continual usage from two AA alkaline batteries, users can focus on the audio rather than how much power is left.

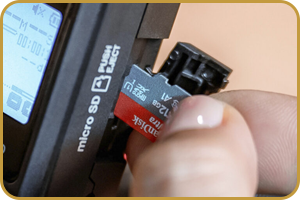

Large Recording CapacitySupport of microSDXC cards up to 512 GB gives you ample recording capacity for on-the-go use.

Sound-Sensitive Auto RecordingAutomatically start recording when sound is detected with Auto Recording mode.

Ready for DSLR and iPhoneAuto Tone output for DSLR optimises the DR-07XP for use in videography and content creation.

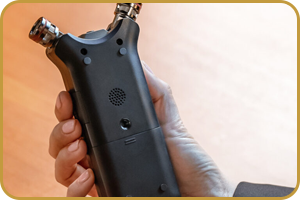

Built-in Reference SpeakerA built-in monaural loudspeaker allows you to check your recordings without putting on headphones.

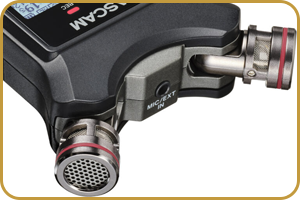

Input for External SourcesA stereo mini jack is provided for external stereo microphones or other stereo line-level sources.

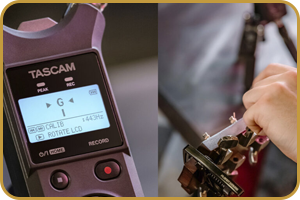

Built-In Chromatic TunerEasily tune your musical instruments in different scales with the built-in chromatic tuner.

Multiple-Language MenuNavigate the on-screen menus in one of the most widely used languages (English, French, German, Italian, Spanish, Portuguese, Japanese, Chinese, Korean).

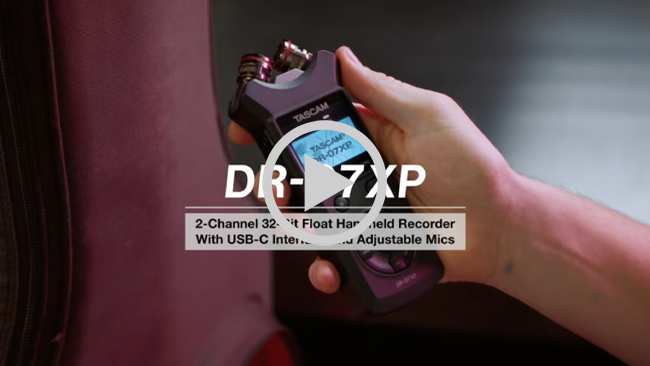

DR-07XP - 2-Channel 32-bit Float Portable Handheld Recorder and USB-C Interface

The Tech Spec
Features | Specification | Recording media | microSD/microSDHC/microSDXC card (up to 512 GB) |
---|---|
Recording/playback format | WAV: Sampling frequency: 44.1/48/96 kHz, Quantization bit depth: 16-bit / 24-bit / 32-bit float MP3: Sampling frequency: 44.1/48 kHz, Bit rate: 32/64/96/128/192/256/320 kbit/s Number of channels: Input channels: 2 (stereo), Recording tracks: 2 (stereo) |
Microphone/External input (can provide plug-in power) | 3.5-mm stereo mini jack |
Input impedance | ≥18 kΩ (plug-in power off) ≥2 kΩ (plug-in power on) |
Nominal input level | −20 dBV |
Maximum input level | −4 dBV |
Headpones/Line output | 3.5-mm stereo mini jack |
Output impedance | 12 Ω |
Nominal output level | −14 dBV (10 kΩ load) |
Maximum output level | +2 dBV (10 kΩ load) |
Maximum output power | 20 mW + 20 mW (32 Ω load) |
Working impedance | 16−250 Ω |
Built-in loudspeaker | 0.3 W (mono) |
USB | Type-C connector |
Format | USB 2.0 HIGH SPEED mass storage class USB 1.1 FULL SPEED audio class |
USB Audio | Sampling frequency: 44.1/48 kHz Quantization bit depth: 24 bit Number of audio inputs: 2 channels Number of audio outputs: 2 channels |
Frequency response | 20 Hz – 20 kHz, +0/−1 dB (MIC/EXT IN to LINE OUT, 44.1 kHz, JEITA) 20 Hz – 22 kHz, +0/−1 dB (MIC/EXT IN to LINE OUT, 48 kHz, JEITA) 20 Hz – 40 kHz, +0/−1.5 dB (MIC/EXT IN to LINE OUT, 96 kHz, JEITA) |
Total harmonic distortion ratio (THD+N) | ≤0.01 % (MIC/EXT IN to LINE OUT, 44.1/48/96 kHz, JEITA) |
Power supply | 2 AA batteries (alkaline or NiMH, sold separately) USB bus power from a computer Dedicated AC adapter (TASCAM PS-P520U, sold separately, DC 5 V, 2 A) |
Power consumption | 1.7 W / 5 V, 0.5 A (maximum) |
Dimensions (W × H × D) | 68 mm × 160 mm × 27 mm (microphones in XY configuration) 90 mm × 160 mm × 27 mm (microphones pair in AB configuration) |
Weight | 184/136 g (with/without batteries) |
Permissible operating temperature range | 0–40 °C |
