SWIT - 'CL-M100D 100W Mini Size Studio LED Panel Light'

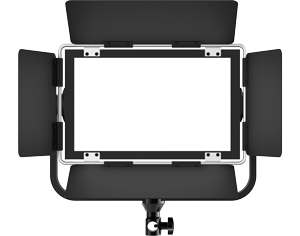

SWIT CL-M100D 100W Bi-Color LED Panel Light

Mini Size 100W LED PanelThe SWIT CL-M100D is a 100W bi-colour LED Panel light designed for high intensity operations like broadcast studios, live entertainment, theater, and film applications, thanks to its compact 1:1/2 mini size and fanless design suiting low ceiling space setups. With SMD LEDs providing a higher uniformity of illuminace and higher colour rendering index it is ideal for creative solutions.

Bi-Colour SMD LEDs

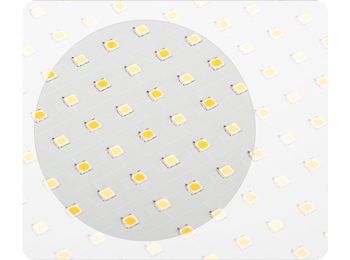

Close up photograph of Swit CL-M100D SMD LED panel

576pcs Surface Mounted LEDsCL-M100D adopts 576pcs of SMD LEDs that provide a higher uniformity of illuminance, wider beam angle, higher colour rendering index, softer and brighter light; and a longer lifetime, ideal for broadcast studios, chromakey, live streaming etc.

100W Output

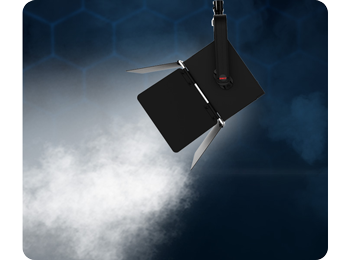

image of swit CL-M100D illuminating white fog in dark blue room

3400Lux @ 1mCL-M100D provides 100W light output, 3400Lux luminance at 1 meter distance, 62° half-peak wide beam angle, supports 0-100% PWM digital dimming, smoothly, and non-flickering.

Fanless Cooling

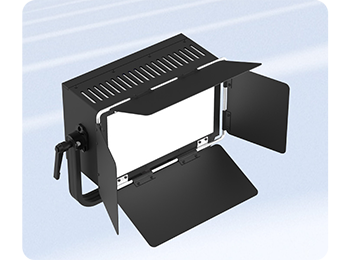

image of swit CL-M100D on light blue background

No Fan, No NoiseThe large size fin consender inside CL-M100D ensures a 100W high bright output within the small housing with no fan and no noise, provide silent operation for production sets.

Continuos Bi-Colour Adjustment

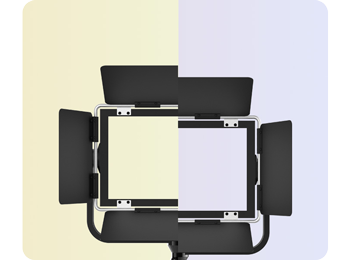

swit CL-M100D split comparision between two colour temperatures

2700-6500K Continuously AdjustableFeaturing 100W of both 2700K and 6500K SMD LEDs, the CL-M100D Light panel can output 100W of power at any colour temperature between in the 2700-6500K range giving you endless adjustment with no drop in power.

CRI 98, TLCI 99

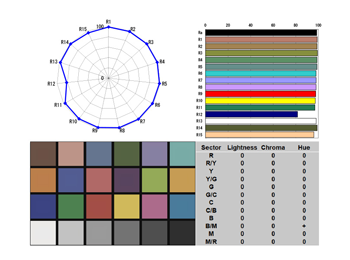

Swit CL-M100D CRI Colour accuracy charts

High Colour Rendering AccuracyAdopting high-end surface-mounted LEDs with high CRI and TLCI scores of 98 and 99 respectively, objects will be rendered with their true and accurate colours.

Built-in LCD Display

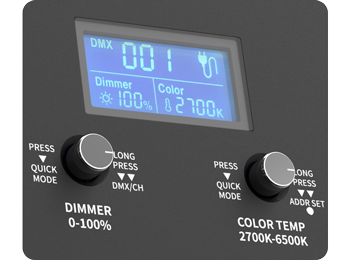

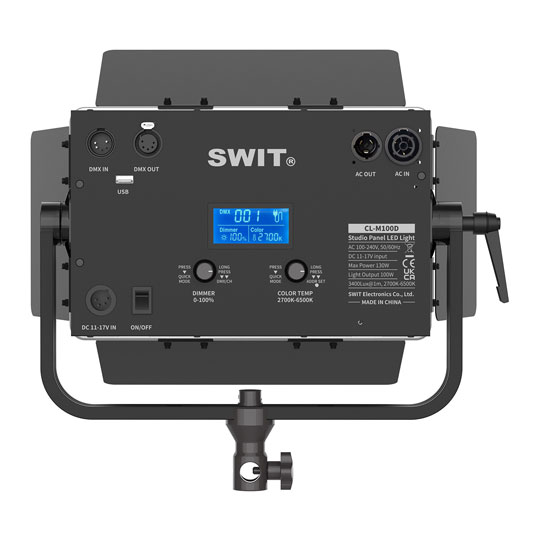

Close up image of LCD display and control dials on back of Swit LED panel light

Control Info DisplayFeaturing a rear LCD screen to display dimmer percentage, colour temperature, DMX address, group channel, and power indicators. Long press colour temp knob to set DMX address, and long press dimmer knob to switch between DMX consoler mode and Group interactive control mode.

DMX Support

image of swit CL-M100D rear

5pin DMX512 in & outFeaturing 5-pin XLR DMX512 in & out with a 5V USB-A port to power the wireless DMX receivers.

Multiple Power Options

image of swit CL-M100D rear powercon True power connector

PowerCon True 1 AC in & outThe CL-M100D adopts PowerCON true 1 AC connectors, and supports AC loop output to the next lights, for convenient studio installation. The standard package includes a PowerCon AC cable, and the loop cable PA-LC20 is for optional purchase, 2 meter length, 16A load, will loop more than 25x CL-M100D lights under 220V AC voltage, and 13x CL-M100D lights under 110V voltage.

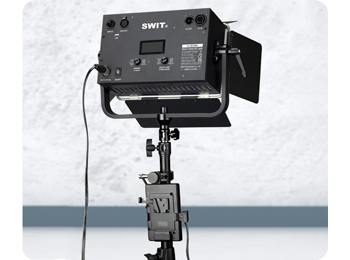

image of swit CL-M100D with DC battery plate

11-17V DC InputWith optional battery plate clamps an D-tap cable, you can power the CL-M100D light by V-mount or Gold mount batteries via the 2-pin XLR DC in socket.

Specifications
Power 100 W
Max Output 3400 lux@1m
Beam Angle 62 °
CRI 98
TLCI 99
Colour Temperature 2700-6500 K
Modifier Mount
Control
  • DMX
  • On-Board Controls
Fixture Type Panel
Weather Resistance
Dimensions 275x173x130 WxHxD
Weight 5.6 g
Whats Included
  • Barn Doors
  • Light Fixture
  • Power Cable
  • Standard Yoke
  • Steel Rope
Additional Information
Scan Code LN154607
Model Number CL-M100D
GTIN 6948193511184
