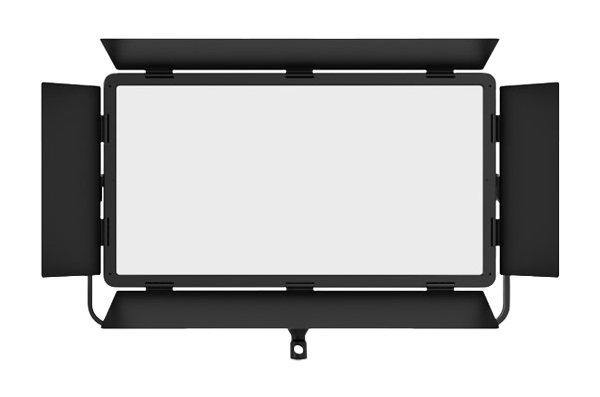

SWIT - 'CL-120D 120W 2:1 Bi-Colour SMD LED Panel Light'
Brighter, Softer, Wider Beam AngleThe CL-120D is a SMD LED panel light, operating at 120W and featuring a bi-colour 2:1 ratio and DMX control. With high CRI/TCLI and precise colour rendering capabilities, it is well-suited for various applications including broadcast studios, mobile studios, live streaming studios and interview kits.
An Ideal Light Source For Your Studio

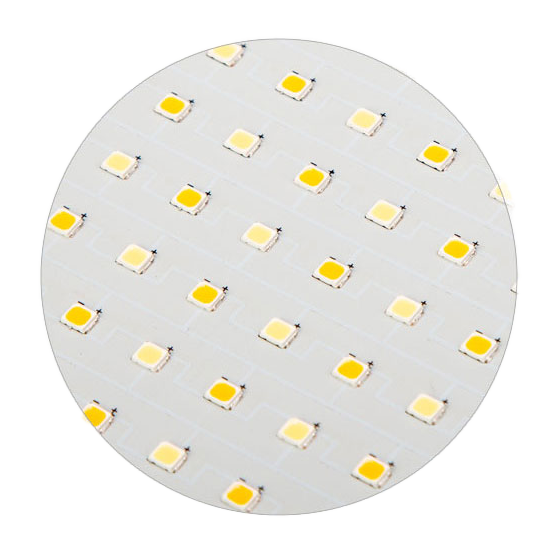

1800pcs Surface Mounted LEDsCL-120D adopts 1800pcs SMD LEDs, featured:
• Higher uniformity of illuminance
• Wider beam angle
• Higher colour rendering index
• Softer and Brighter
• Longer life time
Which is an ideal light source for Broadcast studios, green keyer, interview kit, live streaming etc.

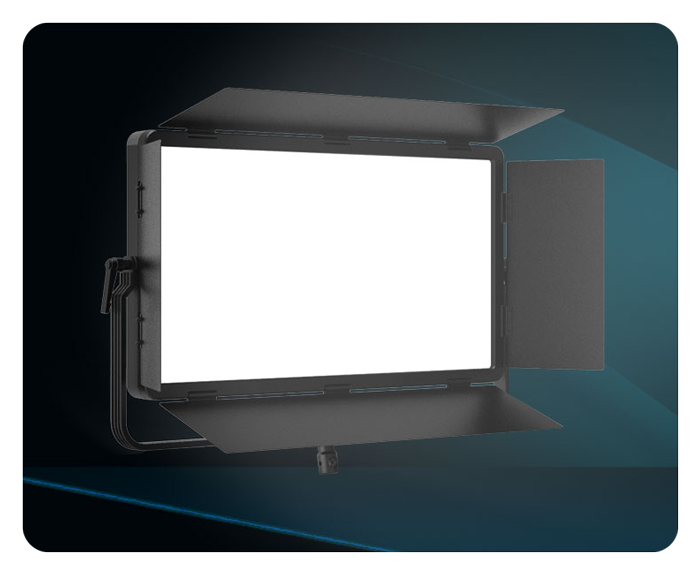

3700 Lux At 1 Meter
Fanless DesignCL-120D outputs 120W power, feeds 3700Lux luminance at 1-meter distance (centre), supports 0 to 100% PWM digital dimming, smoothly and non-flickering. The active cooling system ensures high bright output with no fan or louver, to provide a silent video production environment.

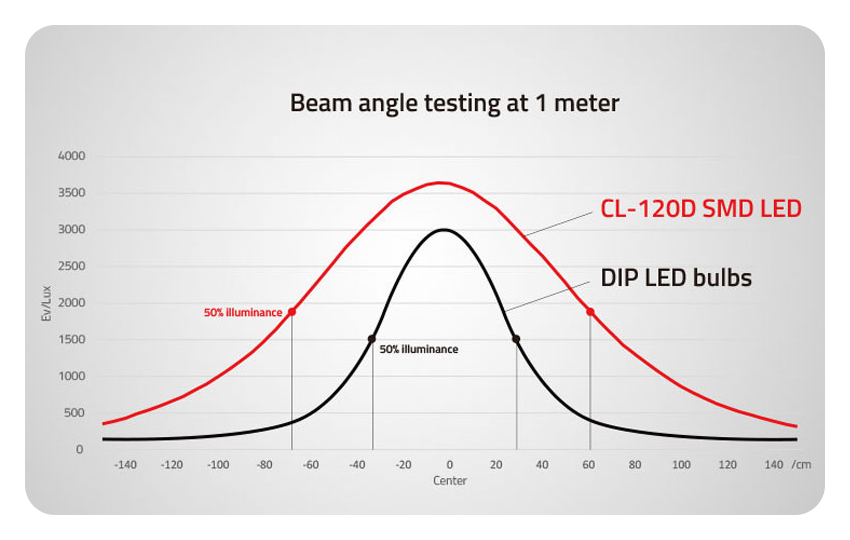

Wider Beam Angle
Produce A nature light environment in your studioThe SMD LEDs have wider beam angle comparing to the traditional DIP LED bulbs. It will generate an equally spread area light from centre to edge, instead of a glaring light spot that suddenly declined from centre to edge. The wider angle equally spread light produces a nature light environment in studio.
2700K-6500K Continuously Adjustable
Bi-color temperatureCL-120D alternated with 120W 2700K LEDs and 120W 6500K LEDs, and can be continuously adjusted between 2700K and 6500K, 50K step.

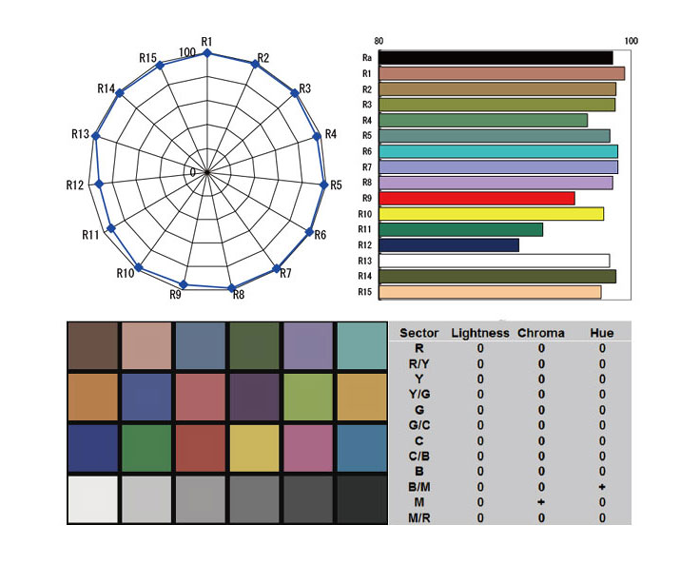

CRI 98; TLCI 99
Accurate Colour RenderCRI (Colour Rendering Index) is a measure of the ability of a light source to reveal the colours of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the colour reveal ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while CL-120D offers the super high CRI at 98 and TLCI at 99, and will not lose the object original colours.

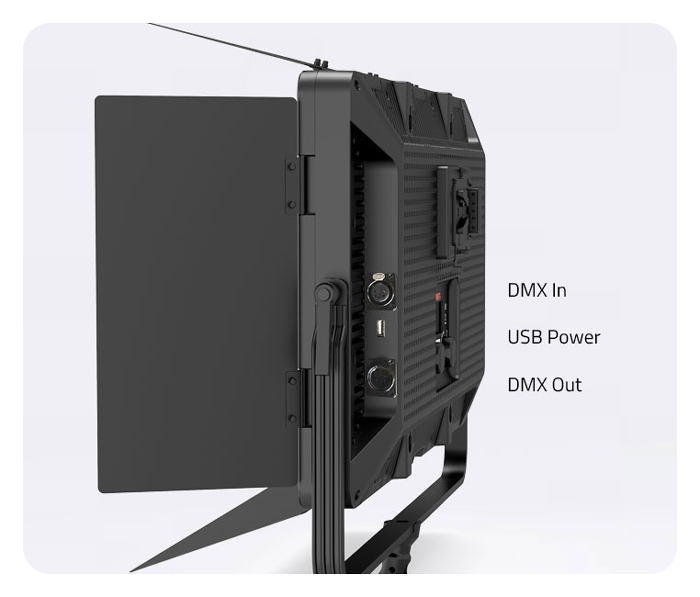

5pin XLR In And Out
DMX512 ControlDMX address: N= Dimmer; N+1= Colour temp Provides a 5V USB power output socket. You can use SWIT LA-WR8 Pocket Wireless DMX controller and power the wireless DMX adaptor by the on board USB socket.
Press and hold dimmer knob for 2 seconds to enter DMX address setting from 001 to 512.

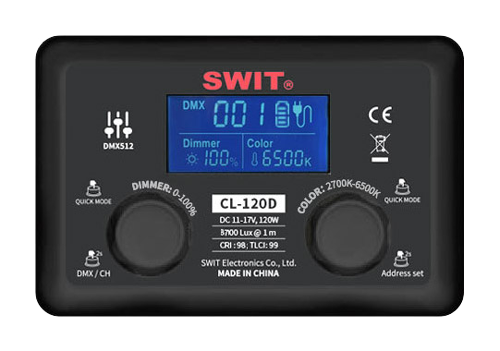

LCD Screen Display

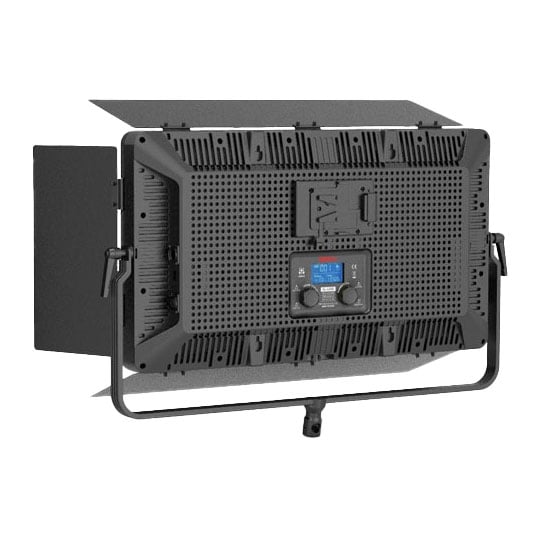

Dimmer / colour temp / DMX addressThe rear LCD screen can display the current dimmer percentage, colour temperature value, DMX channel and CH channel, and remaining battery indications.

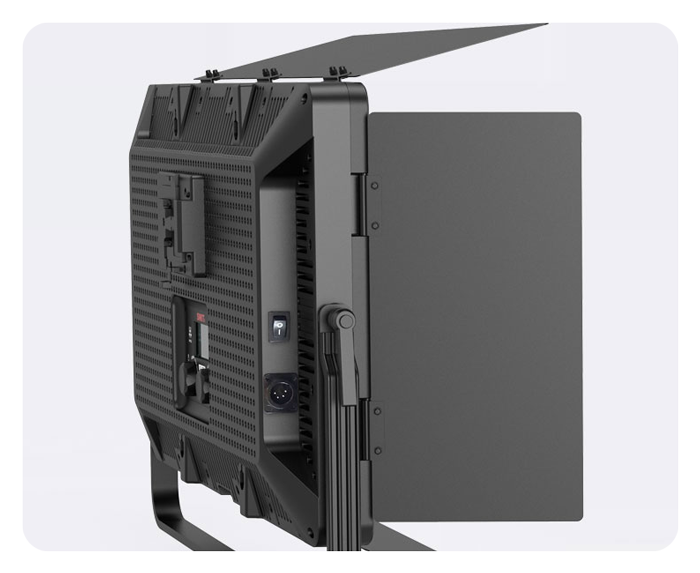

DC 11-17V Power Supply
V-mount battery or AC-DC adaptorCL-120D supports 11-17V voltage input, with 4-pin XLR DC socket, and equipped with V-mount or Gold mount plate to power by batteries. (The default battery plate is V-mount.)
