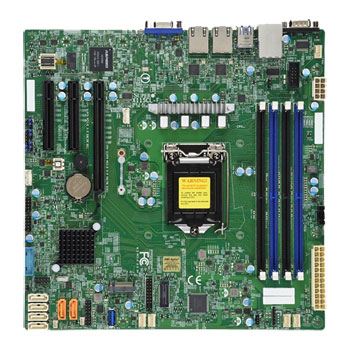

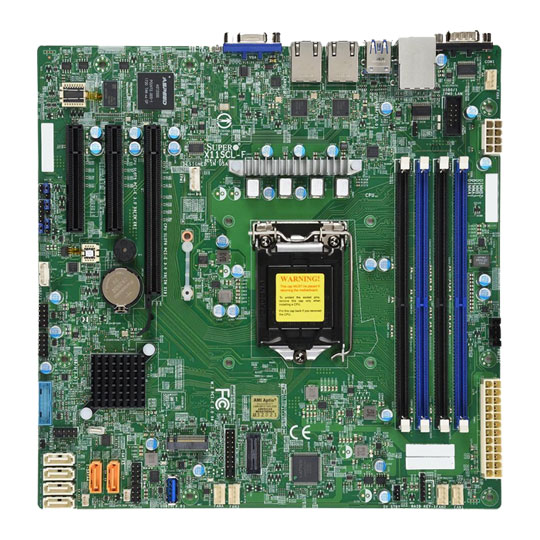

Supermicro X11SCL-F-O Micro ATX Motherboard
Supermicro X11SCL-F-O Server Motherboard, supports Core i3/Xeon E-2100, S 1151, DDR4, ECC UDIMM, SATA, M.2, mATX
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
Suggested Alternatives
Trusted Superior Performance
Ideal for SMB, embedded storage solutions, and cloud-computing platforms, this server motherboard melds superior performance and rich features into a micro ATX form factor. Powered by Intel C242 chipset, this board supports 4-DIMM DDR4 ECC unbuffered (UDIMM) memory (2-DIMM per channel) with speeds of up to 2666MHz. It features PCI-Express 3.0 slots, SATA 3.0 and dual 1GbE LAN ports, a Trusted Platform Module (TPM) header, and a M.2 connector with Intel Optane Memory support. It's also manufactured with premium components, advanced circuit and rigorous testing, guaranteeing the reliability, stability and durability you’d expect from a trusted name.
• 8th/9th Generation Intel Core i3/Pentium/Celeron Processor, Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor, Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP.
• Intel C242 chipset.
• Up to 128GB DDR4 2666MHz ECC UDIMM; 4 DIMM slots.
• Expansion slots: 1 PCI-E 3.0 x8 (in x16), 2 PCI-E 3.0 x4 (in x8).
• Dual GbE LAN with Intel i210-AT.
• 6 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10.
• M.2 Interface: 1 PCI-E 3.0 x4; Form Factor: 2280/22110; Key: M-Key; Double Height Connector.
• I/O: 1 VGA, 2 COM, 2 SuperDOM, and TPM header.
