Scan code: LN95135 Manufacturer code: IMB-1215

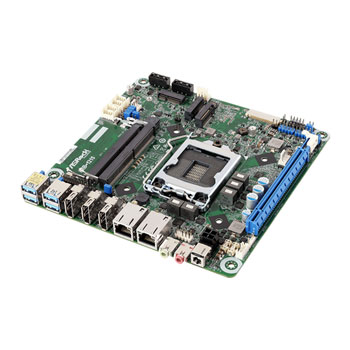

ASRock IMB-1215 Intel Coffee Lake Q370 Industrial Thin ITX Motherboard

ASRock Industrial, IMB-1215, Intel Q370, S1151, DDR4 SODIMM, SATA3, Dual M.2, 2x GbE, 4x COM, USB3.1 G1 A, Thin Mini-ITX

Thumbnail 1 : ASRock IMB-1215 Intel Coffee Lake Q370 Industrial Thin ITX Motherboard Thumbnail 2 : ASRock IMB-1215 Intel Coffee Lake Q370 Industrial Thin ITX Motherboard Thumbnail 3 : ASRock IMB-1215 Intel Coffee Lake Q370 Industrial Thin ITX Motherboard
Scan code: LN95135 Manufacturer code: IMB-1215
£258.49Item due on 24 January 2019
Pre order
From £12.41 / month (APR 14.9%)
Monthly Payment: £44.86
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £258.49
Total inc. interest: £269.13
Monthly Payment: £23.21
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £258.49
Total inc. interest: £278.47
Monthly Payment: £16.00
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £258.49
Total inc. interest: £288.03
Monthly Payment: £12.41
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £258.49
Total inc. interest: £297.78
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £6.46 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview ASRock IMB-1215 Industrial-grade Mini-ITX motherboard utilizing the Intel Q370 & LGA 1151 socket for ‘Coffee Lake’ Intel Core i7/i5/i3 & Intel Celeron processors. Features • Socket LGA 1151 for Intel Core i7/i5/i3/Celeron.
• Supports Dual Channel DDR4 SO DIMM 2400/2666, up to 32GB.
• 3x Displayport, 1x eDP.
• 4x USB 3.1, 4x USB 2.0, 2x SATA3, 4x COM.
• 1x PCIe x16, 1x M.2 Key E , 2x M.2 Key M.
• 1x TPM.
• 19V DC-in (DC Jack/4-pin ATX PWR Con) (Option: +19V~28V).
• Supports RAID function.
Specifications
Core Specifications
Edition IMB-1215
Form Factor Thin Mini-ITX
CPU Socket 1151
Chipset Intel Q370
RAM Memory Support
Memory Type DDR4 SO-DIMM
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2400
  • DDR4 - 2666
Max. Memory Capacity 32GB (2x16GB)
Audio
Audio
Graphics Support
Primary GPU Interface PCIe 3.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics
On-Board Graphics Connectors DisplayPort 1.2
Internal Connectivity
Expansion Slots
  • 1 x M.2, 2230 (Supports WiFi/Bluetooth Cards)
  • 1 x M.2, 2242/2260, PCIe
  • 1 x M.2, 2242/2280, PCIe/SATA
  • 1 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via Not Supported
Storage Mode Support
  • NVMe Boot (via M.2 PCIe Slot)
  • NVMe Boot (via PCIe 3.0 Slot)
Internal I/O
  • 1 x 4-pin (Power)
  • 1 x DC-In (+19V~28V)
  • 1 x eDP
  • 1 x On-Board TPM Module
  • 2 x SATA III - 6Gb/s
  • 1 x SATA Power Connector
  • 3 x Serial (COM) Header
  • 1 x speaker header
  • 2 x USB 2.0 Header
External Connectivity
Network Interface Type Dual Wired Gigabit LAN (10/100/1000)
Network Chip/Modules
  • 1 x Intel® I219LM (Gigabit LAN)
  • 1 x Realtek RTL8111H (Gigabit LAN)
Rear I/O Connectors
  • 3 x DisplayPort 1.2
  • 1 x Line Out
  • 1 x Mic-In
  • 2 x RJ-45
  • 4 x USB 3.1 Gen1 Type-A
Other Motherboard Specifications
Water Cooled No
QPI Speed N/A
Board Dimensions 170 x 170 mm
