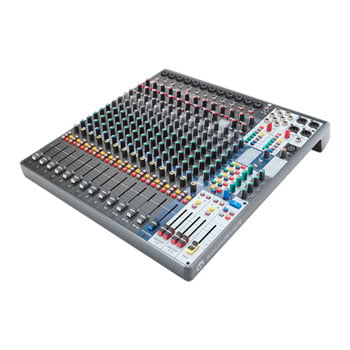

Soundcraft Signature Plus 16 Analogue Mixer with Rack-Ear Mounts
Soundcraft - Signature Plus 16, 16-Channel Analogue Mixer with Lexicon Effects
Email me when the availability or price changes
Finance this product
- From £22.20 / month (APR 0%) for 36 months
- With a 10% deposit from just £19.96 / month (APR 15.9%)
Suggested Alternatives

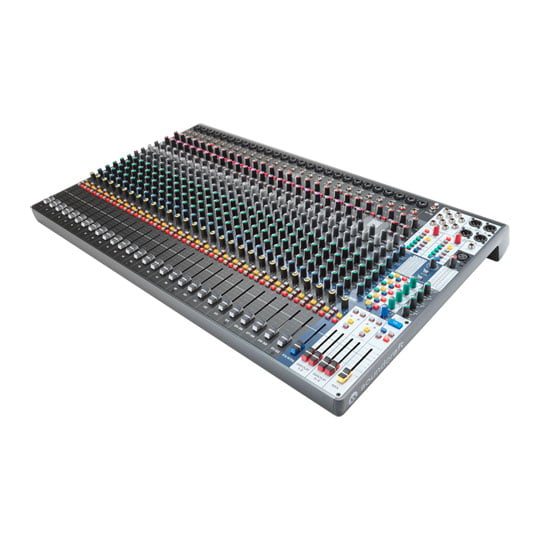

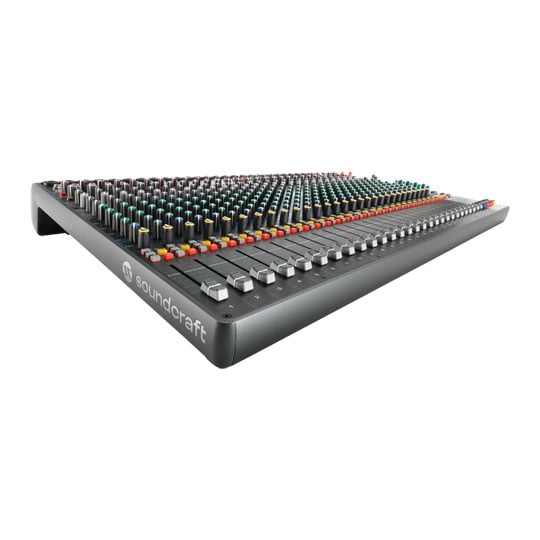

Soundcraft - Signature Plus 32, 32-Channel Analogue Mixer with Lexicon EffectsSoundcraft Signature Plus 32 Analogue Mixer with Rack-Ear Mounts
LN173295
No customer reviewKey Specifications
- Soundcraft - Signature Plus 32
- 32-Channel Analogue Mixer with Lexicon Effects

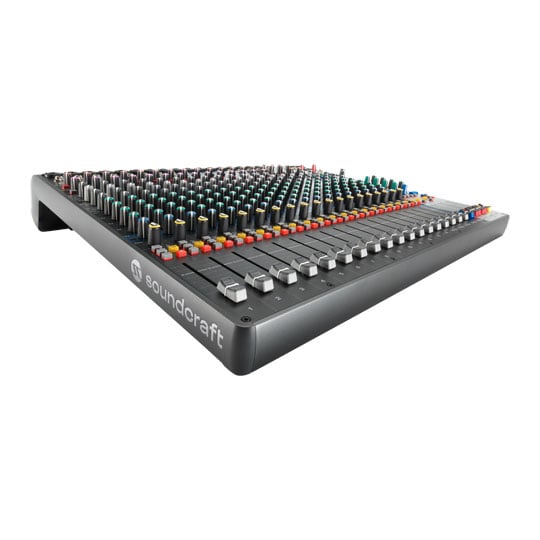

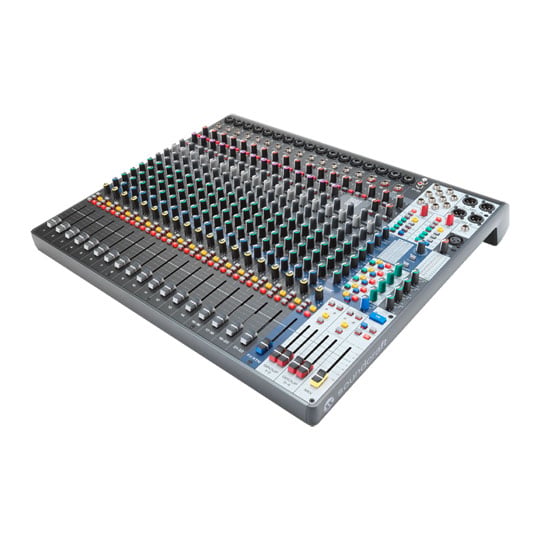

Soundcraft - Signature Plus 22, 22-Channel Analogue Mixer with Lexicon EffectsSoundcraft Signature Plus 22 Analogue Mixer with Rack-Ear Mounts
LN173296
No customer reviewKey Specifications
- Soundcraft - Signature Plus 22
- 22-Channel Analogue Mixer with Lexicon Effects

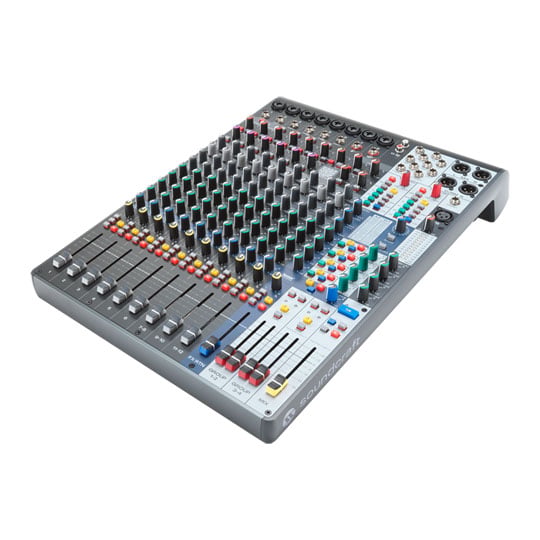

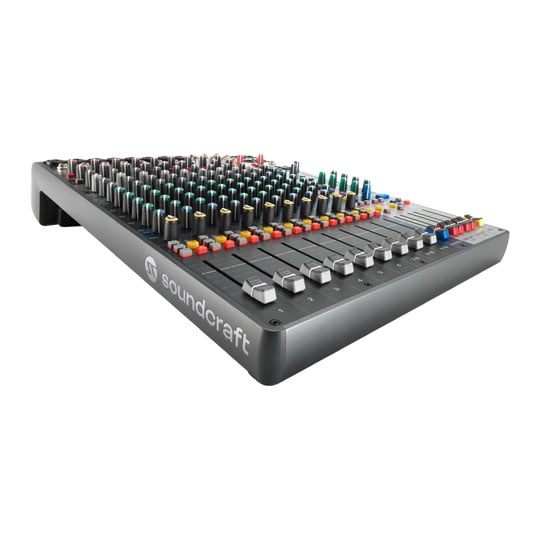

Soundcraft - Signature Plus 12, 12-Channel Analogue Mixer with Lexicon EffectsSoundcraft Signature Plus 12 Analogue Mixer with Rack-Ear Mounts
LN173298
No customer reviewKey Specifications
- Soundcraft - Signature Plus 12
- 12-Channel Analogue Mixer with Lexicon Effects
16-Channel Analogue Mixer with Lexicon Effects

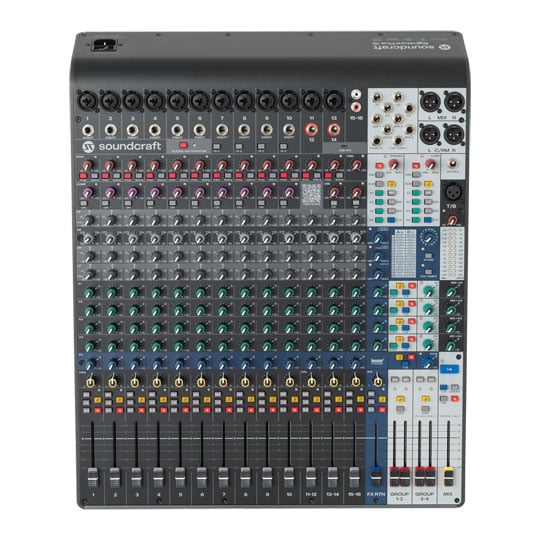

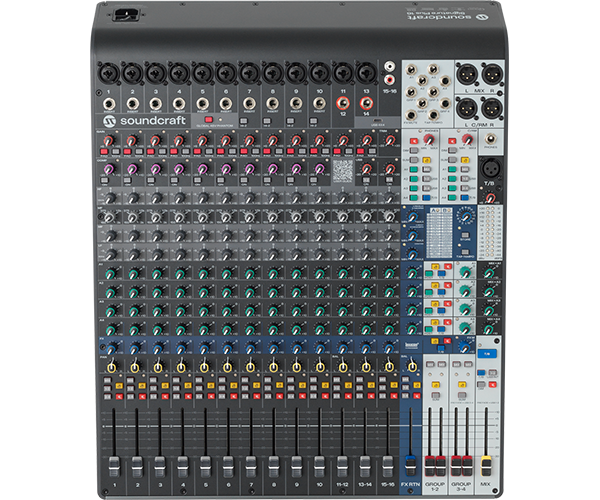

Soundcraft - Signature Plus 16
Designed for intuitive real-world ease of useThe Soundcraft Signature Plus 16 is a next-generation console in the Signature Plus Series. It features 16 creative input channels and delivers professional workflows and flagship features at a competitive price. As an evolution of the acclaimed Soundcraft Signature Series, Signature Plus models integrate professional audio performance with it's clear layout, including colour coded and tactile knobs for fast adjustments. Premium creative audio quality comes from Ghost mic preamps, Sapphyre EQ, dbx one-knob compressor, and a Lexicon hardware effects processor with Store and Tap Tempo. Pro flexibility features include SSM (Simple Success Metering), Listen bus and Talkback To, Mix to Auxes, 4x4 USB-C 192kHz interface, and flexible monitoring controls.
Rugged construction and a surface-mounted QR code, linking to training videos, manuals, and support resources, ensure Signature Plus models are ready for any environment. The Signature Plus 16 isn't just another analogue mixing console—it's a professionalgrade creative hub that empowers artists, engineers, and creators to deliver exceptional sound in studios, on stage, and across streaming platforms.
Creative Character Mono Inputs
• Soundcraft Ghost mic preamps delivering smooth high-gain behavior
• Built-in dbx one-knob compressors with harmonic enhancement for gentle compression on voices and acoutic instruments
• TRS insert points for flexible sound shaping, like aggressive drum compression processors
• Extensive SSM (Simple Success Metering) for precise visual feedback end-to-end
• Sapphyre EQ, famous for musical tone shaping
• Exclusive Lexicon hardware effects processor, now with Store and Tap Tempo for expanded creative control
• Intuitive layout with colour-coded buttons and tactile “squircle” knobs for fast, confident navigation and operation
• Smooth, premium-quality faders for precise control
Professional Style Workflows On Every Size
• 4x4 USB-C 192kHz interface for seamless playback and recording with laptops or mobile devices
• Pro Listen bus, without interrupting the main mix to artists or the audience
• “Talkback To” routing, powering talkback to the user's selection of outputs
• 4x Aux sends and Mix to Auxes simplicity for versatile monitoring output control
• User-configurable monitoring controls, including headphone/control room outs, Mute / Dim / Mono Sum, and direct USB routing
• Front-panel QR code for instant access to training, manuals, and support
• Included software bundle supporting modern hybrid workflows
Professional Console Workflow
Intuitive, Professional ControlSignature Plus features a clean, purpose-driven layout that optimizes input and output sections for fast, confident navigation. Colour-coded buttons and tactile “squircle” knobs make adjustments quick and precise—even in low-light or high-pressure environments.
Advanced Talkback To, Listening and MeteringA dedicated Listen bus allows engineers to monitor channels without interrupting the main mix, while Talkback To routing ensures clear communication where and when needed. Extensive SSM (Simple Success Metering) provides fast visual feedback across all inputs and outputs.
Creative Analogue CharacterSoundcraft Ghost mic preamps deliver smooth overload behavior and rich harmonics, paired with Sapphyre EQ for musical tone shaping. Built-in dbx one-knob compressors with harmonic enhancement and insert points provide flexible sound shaping.
USB-C Connectivity For Modern WorkflowsA 4x4 USB-C 192kHz interface enables seamless playback and recording with laptops or mobile devices. USB inputs can be routed into channel strips or override the mix for break music and DJ sets. Additionally, single press select empowers direct headphone and control listening between sessions.
Exclusive Lexicon Hardware EffectsAs the only console in its class with a built-in Lexicon hardware processor, Signature Plus 12 adds preset Store and Tap Tempo functions for expanded creative control.
Simple, Flexible MonitoringUser-configurable monitoring controls include independent headphone/control room outs, with Mute / Dim / Mono Sum, and user selection from Auxes, Listen, Mix, or direct USB returns for streamlined monitoring precision per listener.
The Tech Spec
| Features | Specification | Equivalent Input Noise (EIN) | Preamp Gain @ 65dB, A-weighted, AES17 filter (20kHz): -128dBu |
|---|---|
| Frequency Response | Audio band flatness, relative to 1kHz, 20Hz to 20kHz: +0.5dB/-1.5dB |
| Frequency Response | -3dB cutoff: 15Hz to 80kHz |
| Residual Noise | One channel routed, unity gain, A-weighted: -90dBu |
| Residual Noise (Rca Channel Only) | Channel trim at noon, A-weighted, USB not routed: -78dBu |
| THD+N | 30dB preamp gain, +14dBu at any output, AES17 filter (20kHz): <0.005% |
| CMRR | 30dB preamp gain, -10dBu input level: >80dB |
| Crosstalk | +30dB preamp gain, +14dBu at output, Measured signal on non-routed output, relative to +14dBu: -80dB |
| Aux Send Isolation | +30dB preamp gain, Relative to +14dBu at aux output with unity gain, Aux pot at minimum, Aux main pot at unity: -75dB |
| Sample Rates | 44.1kHz, 48kHz, 88.1kHz, 96kHz, 176.2kHz, 196kHz |
| Full Scale Playback Level | USB trim knob at noon, Routed through unity gain channel to MIX: +17dBu |
| Full Scale Recording Level | 0dBFS equivalent level at MIX output: +20dBu |
| Dynamic Range, Playback | 94dB |
| Dynamic Range, Recording | 107dB |
| THD+N, Playback | -0.5 dBFS playback level, Adjust USB trim to get +14dBu at any output: <0.01% |
| THD+N, Recording | Input to mono channel, Preamp gain 30dB, Route to MIX and Group 3-4, Adjust channel fader to reach -1dBFS: <0.005% |
| Dimensions | 438 x 535 x 106 mm (17.24 x 21.06 x 4.17 in) |
| Weight | 7.8kg (17.2 lbs) |
