Sennheiser EW-DX SKM (S1-10) For EW-DX Digital Wireless Receivers

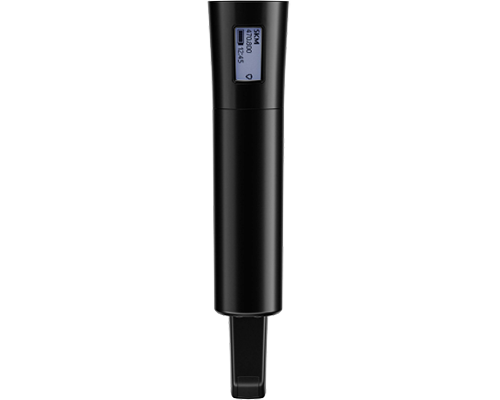

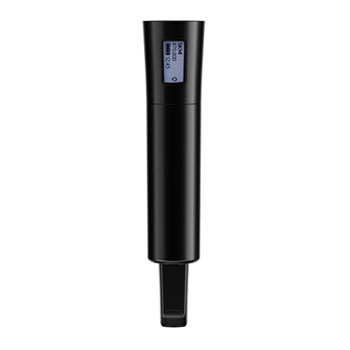

Sennheiser - EW-DX SKM (S1-10), Digital Wireless Handheld Transmitter, No Mic Capsule
- SCANPROTECT Protect against installation damage for 28 days. More info
Handheld Transmitter without Switch
Sennheiser - EW-DX SKM
(S1-10 - 606.2 - 693.8 MHz)
handheld transmitter for use with a companion receiver
as part of a digital wireless RF transmission systemSennheiser’s EW-DX SKM is a digital handheld wireless transmitter/mic compatible with EW-DX wireless receivers. The perfect choice for a broad range of professional performance and presentation applications, the transmitter is seen here without the capsule included, leaving you free to choose the one that best suited to your application.
Lightweight and comfortable for performers and presenters to hold, the transmitter features a rugged, all-metal housing built to withstand daily use on stage!.
at a glance
• 10mW RF power with up to 100m/328ft working range
• Charging contacts for in-device charging with CHG 70N
• Persistent eInk display - parameters visible on screen
even when device is not powered on
• Programmable mute switch on EW-DX SKM-S - customize the device depending on your professional needs
• Function buttons - control all the transmitter settings
directly from handheld microphone
• Extended runtime with lithium-ion batteries - up to 12
hours operation time
• Standard capsule interface - compatible with a wide
range of Sennheiser and Neumann capsules
• Mic input trim control
• Metal housing
what's included?
• 1 x EW-DX SKM Handheld Transmitter
• 1 x MZQ 1 Microphone Clamp
• 1 x Batteries Set (AA)
• 1 x Quick Guide
• 1 x Safety Guide
• 1 x Manufacturer Declaration Sheet
Choosing The Right Capsule
With Sennheiser's Digital EW-D and EW-DX ranges, only the (SM58 equivalent) MMD835 Cardioid Capsule is available as a factory packed bundle along with the mic handle and receiver. For any other combination, you choose your desired capsule separately and combine it with your desired wireless mic handle, or combined mic handle receiver pack in either S or U band frequencies in the UK.
MMD 845Pattern:Super Cardioid
Type:Dynamic
Use:Vocal/Speech
Detail: 3
MMD 935Pattern:Cardioid
Type:Dynamic
Use:Vocal/Speech
Detail: 4/5
MMD 945Pattern:Super Cardioid
Type:Dynamic
Use:Vocal/Speech
Detail: 4
MMD 42-1Pattern:Omnidirectional
Type:Dynamic
Use:Interview
Detail: 3
MM 435Pattern:Cardioid
Type:Dynamic
Use:Vocal/Speech
Detail: 4.5/5
MM 445Pattern:Super Cardioid
Type:Dynamic
Use:Vocal/Speech
Detail: 4.5/5
MMD 865Pattern:Super Cardioid
Type:Condenser
Use:Vocal/Speech
Detail: 3/5
MMD 965Pattern:Super Cardioid
Type:Condenser
Use:Vocal/Speech
Detail: 4
DPA 401VPattern:Super Cardioid
Type:Condenser
Use:Vocal/Speech
Detail: 4/5
DPA 2028Pattern:Super Cardioid
Type:Condenser
Use:Vocal/Speech
Detail: 5/5
The Tech Spec
| Features | Specification | Audio link frequency ranges | S1-10 - 606.2 - 693.8 MHz |
|---|---|
| Bluetooth® Low Energy (BLE) frequency range | 2402 - 2480 MHz |
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
| Audio THD | ≤ -60 dB for 1 kHz @ -3 dBfs input level |
| Dynamic range | 134 dB |
| System latency | 1.9 ms |
| Operating temperature | -10 °C - +55 °C (14 °F - 131 °F) |
| Relative humidity | 5 - 95 % (non-condensing) |
| Input voltage | 2.0 - 4.35 V |
| Input current | < 300 mA |
| Transmit power (radiated) | Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) LD mode: 10 mW ERP BLE: max. 10 mW EIRP |
| Dimensions | (without microphone module) - 40 x 200 mm (1.57" x 7.87") |
| Weight (without batteries) | (without microphone module) - approx. 195 g (7.14 lbs) |
