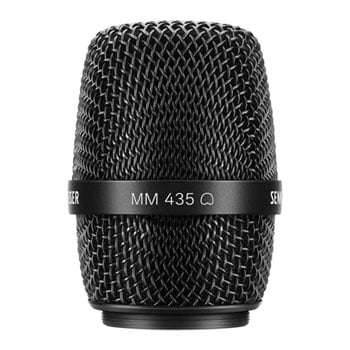

Sennheiser MM 435 Microphone Module (cardioid, dynamic)
Sennheiser MM 435 Dynamic Microphone Capsule, Frequency response 40 – 20,000 Hz, Cardioid
- SCANPROTECT Protect against installation damage for 28 days. More info
Dynamic Microphone Capsule
Sennheiser - 'MM 435'
More power. More shine.Sennheiser’s ‘MM 435’ vocal mic capsule offers the chance for every voice to be a truly commanding force. Thanks to its high-grade aluminium-copper voice coil, the MM 435 refines even the highest of frequencies with incredible transparency and highlights even the tiniest of nuances. Those previously unheard subtle vocals can now be heard and accentuated with ease in the mix.
The MM 435 might be sensitive when reproducing vocals, but it’s incredibly robust when it comes to handling. Its cardioid pickup patter enables the user to be at all kinds of varying distances and angles from the mic, and still provide trusted protection from feedback.
The MM 435 is the true evolution of the classic ‘MD 9235’ head. It’s proven itself in the most intensely demanding live and broadcast productions and professional wireless systems across the globe. ‘MM435’ is fully compatible with all of Sennheiser’s wireless systems based on the standard capsule interface.
163dBMax SPL
40 – 20,000HzFrequency Response
245ΩImpedance
at a glance
• Super lightweight, rapidly responding aluminum-copper voice coil
• Hum compensation coil to eliminate electromagnetic interference
• Detailed sound through nuanced resolution of high frequencies
• Spring-mounted capsule to shield from body-borne noise
• Uniform directionality: cardioid
• Tough metal basket
The Tech Spec
| Features | Specification | Transducer principle | Dynamic |
|---|---|
| Frequency response | 40 – 20,000 Hz |
| Pick-up pattern | Cardioid |
| Sensitivity | 1.8 mV/Pa |
| Max SPL at 1 kHz | 163 dB |
| Equivalent noise level | 17 dB(A) |
| Dynamic range | 146 dB(A) |
| Nominal impedance | 245 Ω |
| Dimensions | 51 x 72.5 mm |
| Weight | 119 g |
