Sapphire NITRO+ B850M WIFI AM5 DDR5 PCIe 5.0 MicroATX Motherboard

Sapphire NITRO+ B850M WIFI, AMD B850, AM5, DDR5, PCIe 5.0, 3x M.2, 2.5GbE / Wi-Fi 6, USB 3.2 Gen2, mATX
MORE INFO
MORE INFO

Scan code: LN167683 Manufacturer code: 52123-01-40G
£119.99
£5.48 Next day delivery
Order now and get it tomorrow (upgrade to Sunday delivery at checkout)
Add To Basket
Get it Tomorrow, 14 JunIn stock
Pay in 3 interest-free payments of £40.00

Email me when the availability or price changes

  • By DPD On 15th Jun Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • From £10.87 / month (APR 16.9%) for 12 months or 0% for 4 months
  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.

Frequently Bought Together

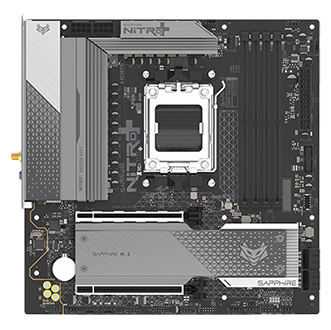

NITRO+ B850M WIFI AMD AM5 Micro-ATX Motherboard from Sapphire

NITRO+ B850M WIFI AMD AM5 Micro-ATX Motherboard from Sapphire

Reliable Power, Ready to Play The SAPPHIRE NITRO+ B850M WIFI is a Micro-ATX AMD AM5 motherboard built to deliver stable high-end performance in compact builds. With a 12+2+1 phase power design and robust VRM, M.2, and chipset cooling, it is engineered for reliable operation under heavy loads. It supports high-speed dual-channel DDR5 memory up to 8000 MHz OC and offers a PCIe 5.0 x16 slot for next-generation graphics. Integrated Wi‑Fi, rich USB connectivity, and HDMI/DisplayPort outputs round out a well-balanced, feature-packed platform.

AMD® B850Chipset

AM5CPU Socket

Ryzen™ 9000/8000/7000 SeriesProcessors

mATXForm Factor

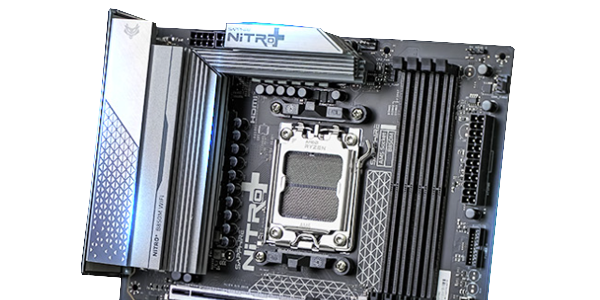

Hero angle of NITRO+ motherboard.

Power for Performance 12+2+1 smart power phase design with dual 8-pin connectors deliver stable, efficient power - letting the CPU reach its full potential with NITRO+ performance.

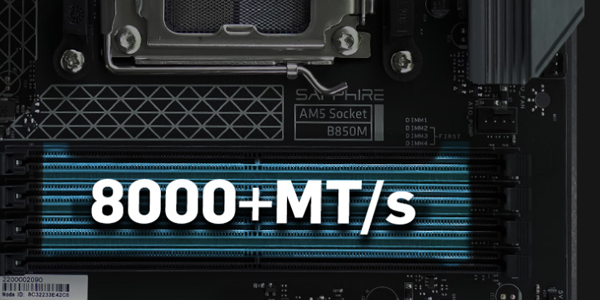

NITRO+ motherboard with 8000+ MT/s written over the DDR5 slots.

Memory Performance Boost Features a 4-slot, dual-channel design with support for 8000+ MT/s memory overclocking. An independent circuit layout reduces signal resistance and interference, ensuring enhanced stability and reliability.

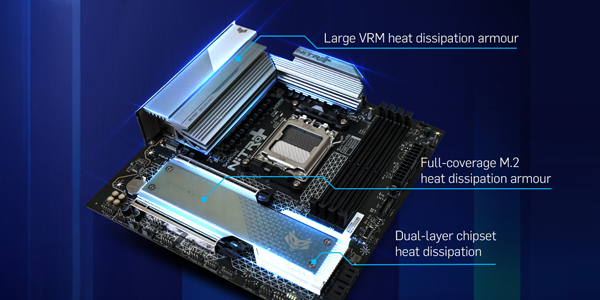

NITRO+ motherboard with outlined thermal design.

Signature NITRO+ Thermal Design Built with NITRO+ aesthetics and a high-conductivity aluminium heatsink, engineered for powerful cooling. The solid, dual-layer chipset armour enhances both thermal performance and system stability, while delivering a bold, performance-driven look.

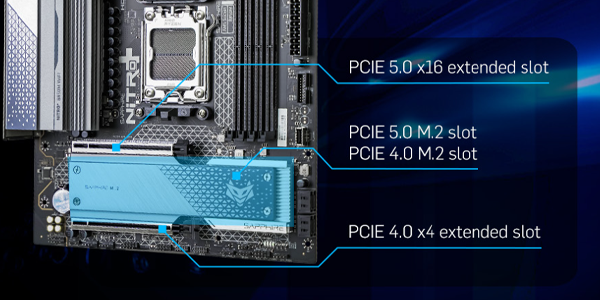

NITRO+ motherboard, highlighting M.2 slots.

Dual M.2 Slots for Maximum Speed Equipped with two high-speed M.2 slots, the motherboard delivers ultra-fast storage and unlimited bandwidth for high-performance devices.

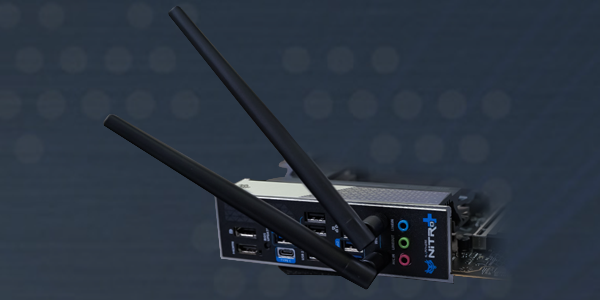

Rear of NITRO+ motherboard, highlighting connectivity.

Wireless Connectivitv Enjoy ultra-fast Wi-Fi and low-latency Bluetooth for seamless audio and true wireless freedom — perfect for gaming and streaming.

Durable Connectivity

Features SD protection and stainless steel, moisture-resistant components, along with rich I/O options — giving you the flexibility to build your ultimate gaming setup.

NITRO+ motherboard rear IO panel.
DP Interface
USB 10G
Network Interface
HDMI Interface
Type-C 10G
4x USB 2.O
2x USB 10G
WiFi Antenna
Audio Interface x3
DP Interface
USB 10G
Network Interface
HDMI Interface
Type-C 10G
4x USB 2.O
2x USB 10G
WiFi Antenna
Audio Interface x3
Specifications
Core Specifications
Edition NITRO+ B850M WIFI
Form Factor MicroATX
CPU Socket AM5
Chipset AMD B850
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 8000(OC)
Max. Memory Capacity 192GB (4x48GB)
Audio
Audio Realtek ALC897 5.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/80, PCIe Gen4x4
  • 1 x M.2, 22-42/80, PCIe Gen5x4
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable RGB LED 5V Connector
  • 1 x BIOS Flashback connector
  • 1 x Clear CMOS jumper
  • 4 x Diagnostic LED
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x RGB LED connector
  • 1 x Serial (COM) Header
  • 1 x speaker header
  • 1 x TPM (SPI_TPM) header
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.3
  • 1 x Realtek RTL8125BG
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 4 x USB 2.0
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 245 x 245 mm
Note
Additional Information
Scan Code LN167683
Model Number 52123-01-40G
GTIN 4895106296916
