Sapphire NITRO+ B850A AM5 DDR5 PCIe 5.0 ATX Motherboard
Sapphire NITRO+ B850A AM5 DDR5 PCIe 5.0 ATX Motherboard
Scan code: LN167682 Manufacturer code: 52123-03-40G
£143.99Item due on 18 June 2026
Pre Order
Due 18th Jun
  • Thumbnail 1 : Sapphire NITRO+ B850A AM5 DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 2 : Sapphire NITRO+ B850A AM5 DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 3 : Sapphire NITRO+ B850A AM5 DDR5 PCIe 5.0 ATX Motherboard
  • Thumbnail 4 : Sapphire NITRO+ B850A AM5 DDR5 PCIe 5.0 ATX Motherboard

Sapphire NITRO+ B850A AM5 DDR5 PCIe 5.0 ATX Motherboard

Sapphire NITRO+ B850A WIFI 7, AMD B850, AM5, DDR5, PCIe 5.0, 3x M.2, 2.5GbE, USB 3.2 Gen2, ATX
MORE INFO
MORE INFO

Scan code: LN167682 Manufacturer code: 52123-03-40G
£143.99
£5.48 Next day delivery
Item due on 18 June 2026
Pre Order
Due 18th Jun
Pay in 3 interest-free payments of £48.00

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • From £13.05 / month (APR 16.9%) for 12 months or 0% for 4 months
  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.

Suggested Alternatives

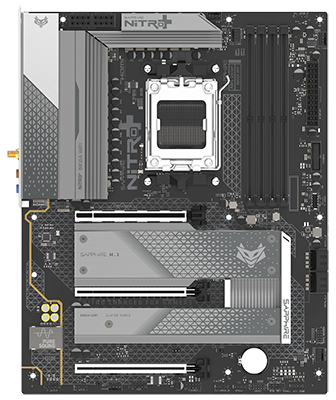

NITRO+ B850A WIFI 7 AM5 ATX Motherboard from Sapphire

NITRO+ B850A WIFI 7 AM5 ATX Motherboard from Sapphire

CHARGED FOR GAMERS SAPPHIRE NITRO+ B850A WIFI 7 is a finely engineered AMD AM5 motherboard built for gamers, creators, and performance enthusiasts. With a sleek industrial aesthetic, robust VRM design, and extensive heatsinking, it delivers stable power and cool operation under heavy loads. Next-gen WIFI 7, 2.5Gb Ethernet, and high-speed USB provide cutting-edge connectivity, while SAPPHIRE CORE BIOS offers an intuitive dashboard for tuning, monitoring, and overclocking with confidence.

AMD® B850Chipset

Ryzen™ 9000/8000/7000 SeriesAM5 CPU Support

ATXForm Factor

Power for Performance

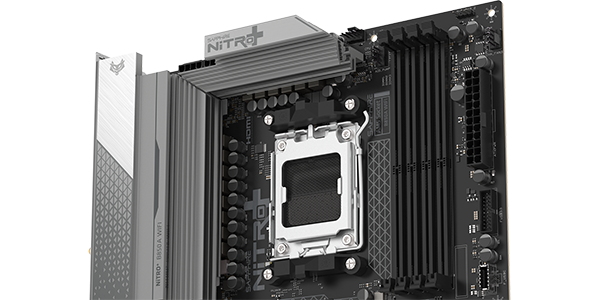

Nitro+ motherboard front angle key visual.

Performance without Limits 12+2+1 smart power phase design with dual 8-pin connectors deliver stable, efficient power - letting the CPU reach its full potential with NITRO+ performance.

Dual 8-pin PSU connectors.

High-Efficiency Power Delivery.

NITRO+ capacitors.

Memory Performance Boost

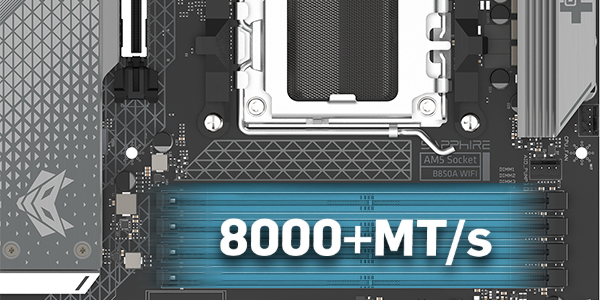

Close up of the NITRO+ motherboard DDR5 sockets.

Unleash DDR5 Features a 4-slot, dual-channel design with support for 8000+ MT/s memory overclocking. An independent circuit layout reduces signal resistance and interference, ensuring enhanced stability and reliability.

Signature NITRO+ Thermal Design

Built with NITRO+ aesthetics and a high-conductivity aluminium heatsink, engineered for powerful cooling. The solid, dual-layer chipset armour enhances both thermal performance and system stability, while delivering a bold, performance-driven look.

VRM heat dissipation armour.

M.2 heat dissipation armour.

Chipset heat dissipation.

NITRO+ motherboard with highlighting around its cooling armour.

Dominate with Blazing Speed

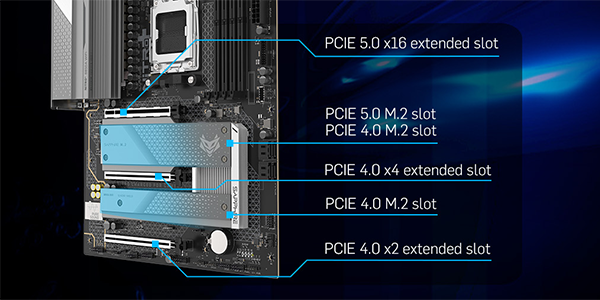

NITRO+ motherboard with lines pointing to the PCIe slots.

Triple M.2 Slots Equipped with three high-speed M.2 slots, the motherboard delivers ultra-fast storage and unlimited bandwidth for high-performance devices.

Durable Connectivity

Features SD protection and stainless steel, moisture-resistant components, along with rich I/0 options — giving you the flexibility to build your ultimate gaming setup.

Rear IO ports of the NITRO+ motherboard.
DP Interface
USB 10G
Network Interface
HDMI Interface
Type-C 10G
4x USB 2.0
2x USB 10G
WiFi Antenna
Audio Interface x6
DP Interface
USB 10G
Network Interface
HDMI Interface
Type-C 10G
4x USB 2.0
2x USB 10G
WiFi Antenna
Audio Interface x6
Specifications
Core Specifications
Edition NITRO+ B850A WIFI 7
Form Factor ATX
CPU Socket AM5
Chipset AMD B850
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 8000(OC)
Max. Memory Capacity 256GB (4x64GB)
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/80, PCIe Gen4x4
  • 1 x M.2, 22-42/80, PCIe Gen5x4
  • 1 x PCIe 4.0 x16 (x2 Bandwidth)
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable RGB LED 5V Connector
  • 1 x BIOS Flashback connector
  • 1 x Clear CMOS jumper
  • 4 x Diagnostic LED
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x RGB LED connector
  • 1 x Serial (COM) Header
  • 1 x speaker header
  • 1 x TPM (SPI_TPM) header
  • 1 x USB 2.0 Header
  • 1 x USB 3.2 Gen1 Header
  • 1 x USB 3.2 Gen1 Type-C Front Panel Header
External Connectivity
Network Interface Type
  • 802.11be Wi-Fi 7
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11be WiFi 7 + BT5.4
  • 1 x Realtek RTL8125BG
Rear I/O Connectors
  • 1 x Center/Subwoofer Speaker Out
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x Rear Speaker Out
  • 1 x Side Speaker Out
  • 4 x USB 2.0
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 305 x 245 mm
Note
Additional Information
Scan Code LN167682
Model Number 52123-03-40G
GTIN 4895106296930
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Warranty information has not yet been updated for this product. For further information please call 01204 474747.
