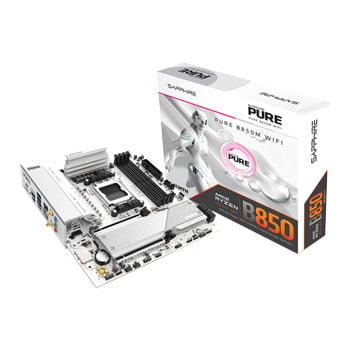

Sapphire PURE B850M WIFI AM5 DDR5 PCIe 5.0 MicroATX Motherboard
Sapphire PURE B850M WIFI AM5 DDR5 PCIe 5.0 MicroATX Motherboard
Scan code: LN167684 Manufacturer code: 52123-02-40G
£129.95Item overdue since 18 June 2026
Pre Order
Pre order
  • Thumbnail 1 : Sapphire PURE B850M WIFI AM5 DDR5 PCIe 5.0 MicroATX Motherboard
  • Thumbnail 2 : Sapphire PURE B850M WIFI AM5 DDR5 PCIe 5.0 MicroATX Motherboard
  • Thumbnail 3 : Sapphire PURE B850M WIFI AM5 DDR5 PCIe 5.0 MicroATX Motherboard
  • Thumbnail 4 : Sapphire PURE B850M WIFI AM5 DDR5 PCIe 5.0 MicroATX Motherboard

Sapphire PURE B850M WIFI AM5 DDR5 PCIe 5.0 MicroATX Motherboard

Sapphire PURE B850M WIFI, AMD B850, AM5, DDR5, PCIe 5.0, 3x M.2, 2.5GbE / Wi-Fi 6, USB 3.2 Gen2, mATX
MORE INFO
MORE INFO

Scan code: LN167684 Manufacturer code: 52123-02-40G
£129.95
£5.48 Next day delivery
Item overdue since 18 June 2026
Pre Order
Pre order
Pay in 3 interest-free payments of £43.32

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • From £11.78 / month (APR 16.9%) for 12 months or 0% for 4 months
  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.

Suggested Alternatives

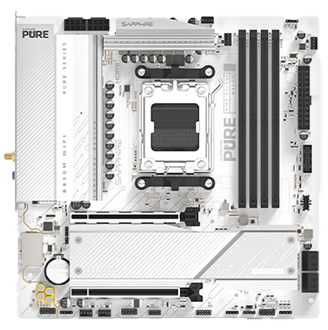

PURE B850M WIFI AMD AM5 Micro-ATX Motherboard from Sapphire

PURE B850M WIFI AMD AM5 Micro-ATX Motherboard from Sapphire

Forged for the Frost Unleash next-level power and performance with the Sapphire Pure B850M WiFi mATX motherboard. Built on AMD’s AM5 platform with DDR5 memory support and PCIe 5.0, it delivers cutting-edge speed, efficiency, and stability. From intense gaming to demanding creative workloads, experience seamless connectivity and exceptional responsiveness in every task.

AMD® B850Chipset

AM5CPU Socket

Ryzen™ 9000/8000/7000 SeriesProcessors

Unleash Power & Performance

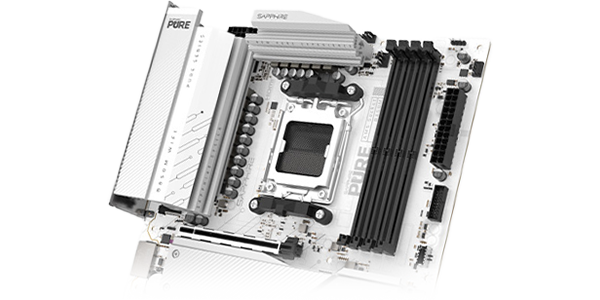

Angled view of B850M mATX motherboard, highlighting power phases.

Smart Power Supply 12+2+1 Dual 8-pin power connectors deliver reliable power to the CPU, enabling the motherboard to maximise processor performance and achieve exceptional computing power.

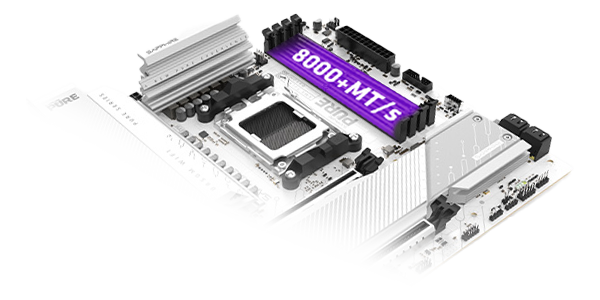

Angled view of B850M mATX motherboard, highlighting 8000 MT/s memory speed.

Metal-Reinforced Memory Slot 8000+ MT/s The motherboard features a 4-slot dual-channel memory layout supporting overclocked speeds of up to 8000+ MT/s. Its independent routing design minimises impedance and electrical interference for enhanced stability and reliability.

Frosty Cooling

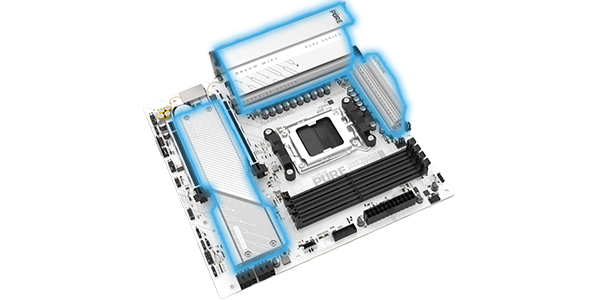

Angled view of B850M mATX motherboard, highlighting cooling armour.

Push Flagship CPUs to the Limit 9950X/9950 X3D Equipped with an integrated, high-efficiency, large-area cooling armour that effectively covers the motherboard’s heat-generating components, delivering consistent cooling for the VRM, M.2, and chipset.

Link Performance

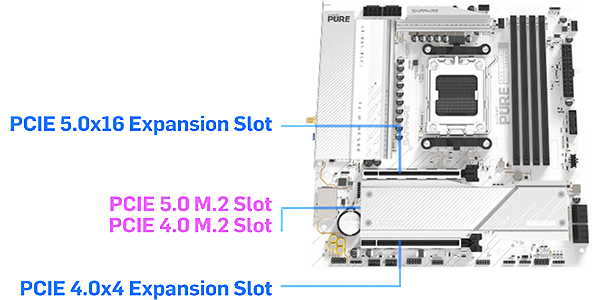

B850M mATX motherboard, highlighting PCie 5.0 slots.

Future-Ready Standard Gen 5 Offers comprehensive Gen 5 support, accommodating a wide range of ultra-fast storage and expansion devices while delivering unrestricted bandwidth for maximum performance.

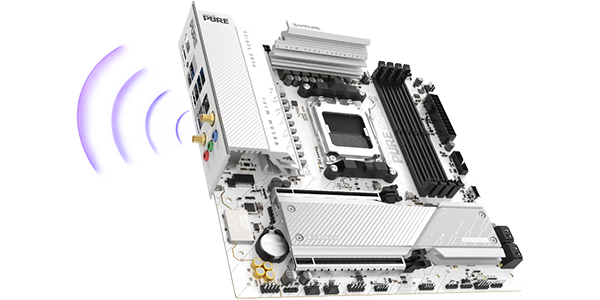

Smooth Wireless Connection

Angled view of B850M mATX motherboard, highlighting cooling armour.

Equipped with a premium wireless module Supports WiFi 6 and Bluetooth 5 for high-speed, stable transmission. The standard wireless module provides multiple connectivity options for your devices.

All-in-One Interfaces

Rear IO of the B850M mATX motherboard.
DP Interface
USB 10G
Network Interface
HDMI Interface
10G Type-C
4x USB 2.0
2x USB 10G
WiFi Antenna
3x Audio Interface
DP Interface
USB 10G
Network Interface
HDMI Interface
10G Type-C
4x USB 2.0
2x USB 10G
WiFi Antenna
3x Audio Interface
Specifications
Core Specifications
Edition PURE B850M WIFI
Form Factor MicroATX
CPU Socket AM5
Chipset AMD B850
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 8000(OC)
Max. Memory Capacity 192GB (4x48GB)
Audio
Audio Realtek ALC897 5.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 2 x M.2, 22-42/80, PCIe Gen4x4
  • 1 x M.2, 22-42/80, PCIe Gen5x4
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 2 x 8-pin (Power)
  • 3 x Addressable RGB LED 5V Connector
  • 1 x BIOS Flashback connector
  • 1 x Clear CMOS jumper
  • 4 x Diagnostic LED
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x RGB LED connector
  • 1 x Serial (COM) Header
  • 1 x speaker header
  • 1 x TPM (SPI_TPM) header
  • 1 x USB 2.0 Header
  • 2 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.3
  • 1 x Realtek RTL8125BG
Rear I/O Connectors
  • 1 x BIOS Flashback Button
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 4 x USB 2.0
  • 3 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen2 Type-C
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 245 x 245 mm
Note
Additional Information
Scan Code LN167684
Model Number 52123-02-40G
GTIN 4895106296923
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
36 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
01204-474747
