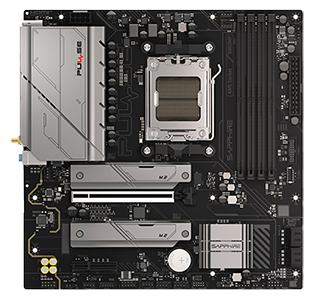

PULSE B850M WIFI AMD AM5 Micro-ATX Motherboard from Sapphire

PULSE B850M WIFI AMD AM5 Micro-ATX Motherboard from Sapphire

Reliable Power, Ready to Play The PULSE B850M WIFI is a compact Micro-ATX motherboard built for AMD Socket AM5 Ryzen 7000, 8000 and 9000 processors. It supports DDR5 memory up to 7600 MHz (OC), 7+2+1 phase 60A power design, and robust cooling for VRM, M.2 and PCH. With PCIe 4.0 x16, PCIe 5.0 and 4.0 M.2 slots, 4x SATA, plus WiFi 6, 2.5Gb LAN and Bluetooth 5.3, it targets stable, feature-rich mainstream gaming and creator builds.

AMD® B850Chipset

AM5CPU Socket

Ryzen™ 9000/8000/7000 SeriesProcessors

mATXForm Factor

Unleash Next Gen Power

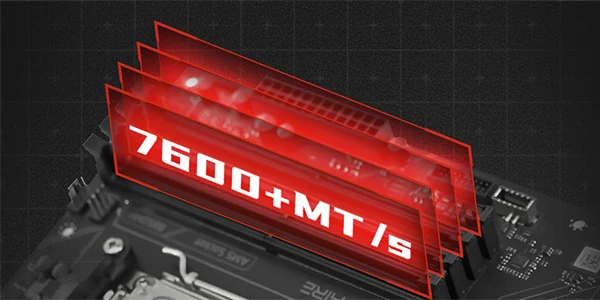

High speed memory modules, highlighted in the PULSE B850M motherboard.

Dual Memory Slot Design Engineered for precision tuning, unlocking faster speeds with unwavering control — power in your hands.

Built for Stability

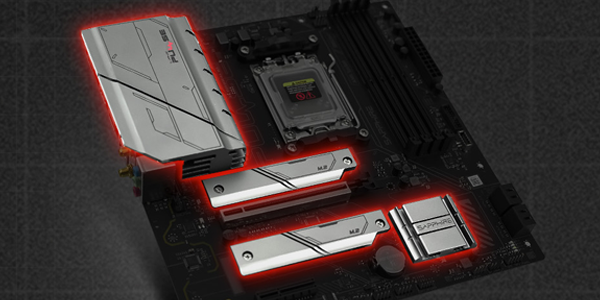

PULSE heatsink armour highlighted above the B850M motherboard.

Flexible Cooling Options Outfitted with five fan headers, offering users the freedom to tailor and create a more sophisticated cooling configuration.

Ready for High Performance Graphics Cards

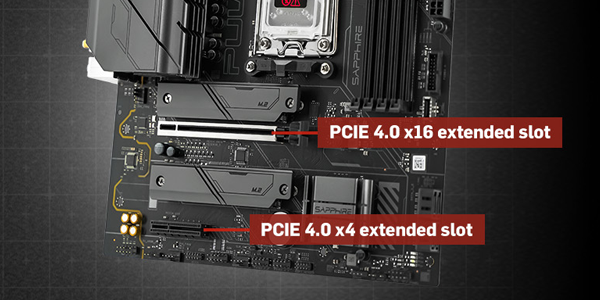

PCIe slots, highlighted on the PULSE B850M motherboard.

High-Speed Expansion The second slot features PCIe 4.0 x4 support with an open-ended design — accommodating popular I/O network cards, sound cards, capture cards, and more for versatile expansion options.

Fast Storage Options

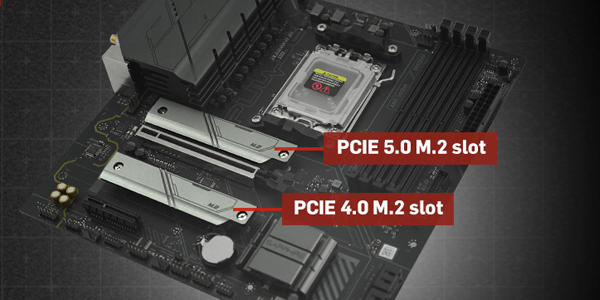

PCIe 5.0 and 4.0 M.2 highlighted on the PULSE B850M motherboard.

Ample Bandwidth Outfitted with two M.2 SSD slots, the motherboard provides ultra-fast connectivity and generous bandwidth to meet your storage and expansion demands.

Blazing Fast Connectivity

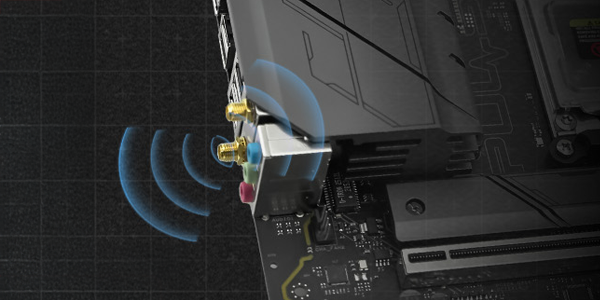

Antenna slots on the rear of the B850M motherboard.

Onboard Wi-Fi 6 + Bluetooth 5.0 Integrated wireless connectivity transforms your motherboard into a central hub for devices such as keyboards, headsets, and more — eliminating the need for additional adapters.

Specifications
Core Specifications
Edition PULSE B850M WIFI
Form Factor MicroATX
CPU Socket AM5
Chipset AMD B850
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 7600(OC)
Max. Memory Capacity 256GB (4x64GB)
Audio
Audio Realtek ALC897 5.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16)
NVIDIA SLI Support Not Supported
AMD CrossFire Support Not Supported
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • DisplayPort
  • HDMI
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x M.2, 22-60/80, PCIe Gen5x4
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x4
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 4-pin CPU Fan Connector
  • 3 x 4-pin System Fan Connector
  • 1 x 4-pin Water Pump Connector
  • 1 x 8-pin (Power)
  • 3 x Addressable RGB LED 5V Connector
  • 1 x BIOS Flashback connector
  • 1 x Clear CMOS jumper
  • 4 x Diagnostic LED
  • 1 x Front Panel Audio Header
  • 1 x Front Panel Connector
  • 1 x Serial (COM) Header
  • 1 x speaker header
  • 1 x TPM (SPI_TPM) header
  • 2 x USB 2.0 Header
  • 1 x USB 3.1 Gen1 Type-C Header
  • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi
  • Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules
  • 1 x 802.11ax WiFi + BT5.3
  • 1 x Realtek RTL8125BG
Rear I/O Connectors
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Line In
  • 1 x Line Out
  • 1 x Mic-In
  • 1 x RJ-45
  • 6 x USB 2.0
  • 2 x USB 3.2 Gen1 Type-A
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 244 x 244 mm
