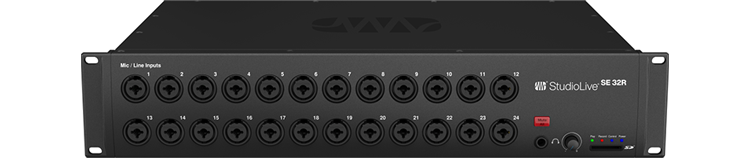

PreSonus StudioLive SE 32R Digital Rack Mixer
PreSonus - StudioLive SE 32R, 40-Channel Digital Rack Mixer with 32 XMAX-R Recallable Preamps
Email me when the availability or price changes
Finance this product
- From £42.58 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £37.71 / month (APR 15.9%)
Suggested Alternatives
PreSonus - StudioLive SE 32R Digital Rack Mixer
40-Channel Digital Rack MixerDesigned for large-scale productions, the StudioLive SE 32R combines a 40-channel processing engine with 32 recallable XMAX-R mic preamps in a compact rackmount mixer. Powered by the PreSonus FLEX DSP Engine, every channel and bus features vintage-style EQ and compression for consistent, high-quality sound.
Sixteen FlexMixes can be configured as auxes, subgroups, or matrix mixes, providing complete flexibility for complex monitor and routing scenarios. Four dedicated FX mixes with stereo returns and 24 DCA groups make it easy to manage high channel counts with precision.
A continuously bidirectional 64x64 USB 2.0 audio interface, onboard stereo SD recording, and included Capture multitrack software with Virtual Soundcheck make the SE 32R a powerful centerpiece for live and studio recording. Channels can switch between analog, USB, SD, and AVB sources for seamless hybrid workflows.
Built-in Milan-certified AVB networking allows effortless integration as a stagebox or monitor mixer for StudioLive Series III consoles, while optional AVB-D16 support adds Dante connectivity. Universal Control remote mixing software ensures full wireless control and offline mix preparation.
at a glance
• 40-channel digital rack mixer with 32 XMAX-R recallable preamps
• 16 FlexMixes configurable as aux, subgroup, or matrix mixes
• 4 dedicated subgroups and 4 FX mixes with stereo returns
• 24 DCA groups for precise control
• Continuously bidirectional 64x64 USB 2.0 audio interface
• Onboard stereo SD recording
• Capture integration with Virtual Soundcheck
• Milan-certified AVB networking for Series III ecosystems
• Per-channel source switching (Analog, USB, SD, AVB)
• Universal Control remote mixing and Offline Editor
• QMix-UC personal monitor mixing
• Standalone, monitor mixer, or stagebox modes
• Perpetual license for Fender Studio Pro included
Why Choose PreSonus' StudioLive SE 32R Digital Rack Mixer?
HIGH-CHANNEL FLEXIBILITY32 onboard XMAX-R preamps with versatile FlexMix, subgroup, FX, and DCA routing.
PROFESSIONAL ROUTING AND MONITORINGDesigned for mobility, versatility, and flexibility—on the road, on stage, or in the studio.
RECORDING MADE EASY64x64 USB recording, onboard stereo SD, and Virtual Soundcheck with Capture and Fender Studio Pro software integration.
WIRELESS AND NETWORK READYUniversal Control and QMix-UC put mixing in your hands while Milan-certified audio networking makes expanding your system easy.
FENDER STUDIO PRO INTEGRATIONDeep integration with Fender Studio Pro simplifies recording with direct preamp control and seamless switching between onboard and plug-in processing with Fat Channel XT.
The Tech Spec
| Features | Specification | Electronics | Headphone Jack - 1/4" TRS Active Stereo Voltage - 230V UK Power Consumption - 35W (Continuous) Phantom Power - +48 VDC (±2 VDC) |
|---|---|
| Performance | Digital Audio Bit Depth - 24 Digital Audio Dynamic Range - ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz) Digital Audio Reference Level For Zero dBFS - =+18 dBu Digital Audio Total System Latency - 1.9 ms (local routing, analog in-analog out, all processing active) |
| Inputs | Line Input Connection Type - RCA Female, Unbalanced (Stereo Pair) Line Inputs Maximum Level - +12 dBu, ±0.5 dBu Microphone Input Connection Type - Combo Locking XLR Mic - 1/4” TRS Line Microphone Preamp Common Mode Rejection Ratio - 65 dB (1 kHz at Unity Gain) Microphone Preamp Frequency Response - 20-20 kHz (±0.5 dBu at Unity Gain) Microphone Preamp Gain Control Range - 0 dB to 60 dB (±1 dB) Microphone Preamp Input Impedance - 1 kΩ Microphone Preamp Maximum Input Level - =+12 dBu (Unity Gain) Microphone Preamp Signal To Noise Ratio - 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted) Microphone Preamp Total Harmonic Distortion - <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted |
| Outputs | Headphone Outputs Frequency Response - 20 Hz to 20 kHz, +/-0.5 dB Headphone Outputs Maximum Output - 100 mW/ch. @ 60Ω Load Headphone Outputs Signal To Noise Ratio - 96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted Headphone Outputs Total Harmonic Distortion - 0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted Line Outputs Connection Type - 1/4" TRS, Balanced Line Outputs Maximum Output Level - =+18 dBu, ±0.5 dBu Line Outputs Output Impedance - 100 Ohms |
| Hardware | Digital Audio AVB Audio Network Ports - Locking XLR, Ethernet Digital Audio Network Control Port - RJ-45 Digital Audio USB Recording Port - USB 2.0, Type-B |
| Measurements | Shipping Dimensions - 21.59x45.72x62.23 CM Shipping Weight - 7.54 KG Shipping Length - 62.23 CM Shipping Height - 21.59 CM Shipping Width - 45.72 CM Product Depth12" (305mm) |
