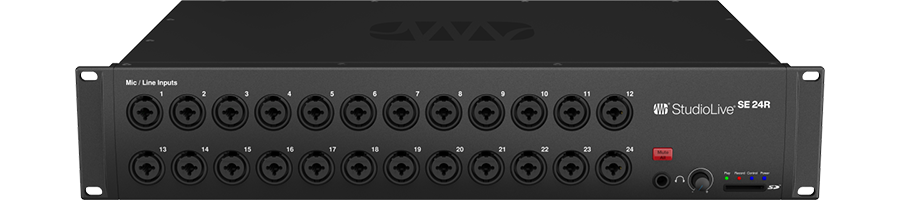

PreSonus StudioLive SE 24R Digital Rack Mixer
PreSonus - StudioLive SE 24R, 40-Channel Digital Rack Mixer with 24 Onboard XMAX-R Recallable Preamps
Email me when the availability or price changes
Finance this product
- From £33.81 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £29.95 / month (APR 15.9%)
- SCANPROTECT Protect against installation damage for 28 days.
PreSonus - StudioLive SE 24R Digital Rack Mixer
40-Channel Digital Rack MixerThe 40-channel StudioLive SE 24R delivers the power and flexibility of a large-format digital console in a rugged rackmount mixer. With 24 recallable XMAX-R mic preamps and advanced DSP powered by the PreSonus FLEX DSP Engine, every input and bus features vintage-style EQ and compression for polished, musical results.
Sixteen FlexMixes can be configured as auxes, subgroups, or matrix mixes and include access to all 24 inputs and buses, making the SE 24R ideal for complex monitor, broadcast, and install workflows. Four dedicated FX mixes with stereo returns and 24 DCA groups provide precise control over large channel counts.
Recording is fully integrated thanks to a continuously bidirectional 64x64 USB 2.0 audio interface, onboard stereo SD card recording, and included Capture multitrack software with Virtual Soundcheck. Each channel can switch between analog, USB, SD, and AVB sources for seamless integration with analog and digital systems.
Milan-certified AVB networking enables plug-and-play use as a stagebox or monitor mixer for StudioLive Series III consoles, while optional AVB-D16 support adds Dante connectivity when needed. Universal Control remote mixing software with Offline Editor ensures complete control from anywhere.
at a glance
• 40-channel digital rack mixer with 24 onboard XMAX-R recallable preamps
• 16 FlexMixes configurable as aux, subgroup, or matrix mixes
• 4 dedicated subgroups and 4 FX mixes with stereo returns
• 24 DCA groups for advanced mix control
• Continuously bidirectional 64x64 USB 2.0 audio interface
• Onboard stereo SD recording
• Capture integration with Virtual Soundcheck
• Milan-certified AVB networking for StudioLive Series III ecosystems
• Per-channel source switching (Analog, USB, SD, AVB)
• Universal Control remote mixing and Offline Editor
• QMix-UC personal monitor mixing
• Standalone, monitor mixer, or stagebox modes
• Perpetual license for Fender Studio Pro included
Why Choose PreSonus' StudioLive SE 24R Digital Rack Mixer?
LARGE-SCALE MIXING POWER40 channels with versatile FlexMix, subgroup, FX, and DCA routing.
ADVANCED ROUTING FLEXIBILITYPerfect for monitor, broadcast, and installation workflows.
SEAMLESS RECORDINGA 64x64 USB audio interface, stereo SD recording, and seamless Capture integration with Virtual Soundcheck streamline every stage of production.
WIRELESS AND NETWORK READYMilan-certified AVB networking, Universal Control, and QMix-UC for total workflow freedom.
FENDER STUDIO PRO INTEGRATIONDeep integration with Fender Studio Pro simplifies recording with direct preamp control and seamless switching between onboard and plug-in processing with Fat Channel XT.
The Tech Spec
| Features | Specification | Electronics | Headphone Jack - 1/4" TRS Active Stereo Voltage - 230V UK Power Consumption - 35W (Continuous) Phantom Power - +48 VDC (±2 VDC) |
|---|---|
| Performance | Digital Audio Bit Depth - 24 Digital Audio Dynamic Range - ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz) Digital Audio Reference Level For Zero dBFS - =+18 dBu Digital Audio Total System Latency - 1.9 ms (local routing, analog in-analog out, all processing active) |
| Inputs | Line Input Connection Type - RCA Female, Unbalanced (Stereo Pair) Line Inputs Maximum Level - +12 dBu, ±0.5 dBu Microphone Input Connection Type - Combo Locking XLR Mic - 1/4” TRS Line Microphone Preamp Common Mode Rejection Ratio - 65 dB (1 kHz at Unity Gain) Microphone Preamp Frequency Response - 20-20 kHz (±0.5 dBu at Unity Gain) Microphone Preamp Gain Control Range - 0 dB to 60 dB (±1 dB) Microphone Preamp Input Impedance - 1 kΩ Microphone Preamp Maximum Input Level - =+12 dBu (Unity Gain) Microphone Preamp Signal To Noise Ratio - 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted) Microphone Preamp Total Harmonic Distortion - <0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted |
| Outputs | Headphone Outputs Frequency Response - 20 Hz to 20 kHz, +/-0.5 dB Headphone Outputs Maximum Output - 100 mW/ch. @ 60Ω Load Headphone Outputs Signal To Noise Ratio - 96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted Headphone Outputs Total Harmonic Distortion - 0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted Line Outputs Connection Type - 1/4" TRS, Balanced Line Outputs Maximum Output Level - =+18 dBu, ±0.5 dBu Line Outputs Output Impedance - 100 Ohms |
| Hardware | Digital Audio AVB Audio Network Ports - Locking XLR, Ethernet Digital Audio Network Control Port - RJ-45 Digital Audio USB Recording Port - USB 2.0, Type-B |
| Measurements | Shipping Dimensions - 21.34x45.72x62.23 CM Shipping Weight - 7.49 KG Shipping Length - 62.23 CM Shipping Height - 21.34 CM Shipping Width - 45.72 CM Product Depth12" (305mm) |
