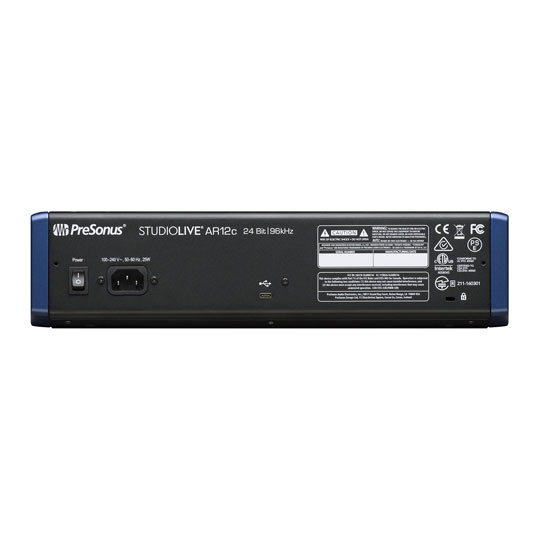

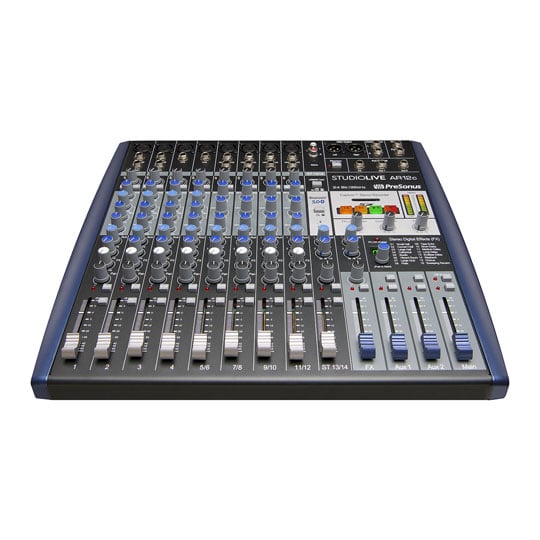

Presonus StudioLive AR12c Interface, Mixer, Recorder
Presonus StudioLive AR12c Audio Interface, Mixer, Recorder, 24-bit, Upto 96kHz, USB2.0 Type-C Interface, SD Recorder
12-channel USB-C™ Audio Interface, Mixer, Recorder
PreSonus - 'StudioLive AR12c'
Portable. Affordable. Recordable. Don’t let the classic analogue mixer design fool you—the StudioLive® AR12c was built to record. With a pristine analogue front-end, eight high-gain XMAX mic preamps, and a 14x4 24-bit, 96 kHz, USB-C compatible USB 2.0 audio interface, its hybrid design makes it simple to record studio productions and mix live shows from a single, intuitive console. Add in a musical 3-band analogue EQ, mic/line boost for low-level vintage synths and broadcast microphones, all-new digital effects with rich reverbs and lush delays, Bluetooth® connectivity, and a stereo SD recorder... and you have a mixing and recording powerhouse that fulfills the needs of both modern musicians and content creators.
High Definition Mixing and Recording
A full-featured audio interface The StudioLive AR12c audio interface operates at up to 96 kHz for high-definition mixing and recording. Record each of the 12 inputs, plus the main mix, for even more flexible recording options. Play back up to four streams for monitoring previously recorded tracks—plus a click. Eight lauded XMAX mic preamps provide all the gain you need to capture even the most subtle details without adding any extra noise. The analogue mixer front-end makes connecting your gear to your computer intuitive. With a USB-C compatible connection, your StudioLive AR12c is ready to use with nearly any computer.
The channel that does it allThe unique Super Channel can handle four stereo sources at once and makes it easy to integrate consumer devices into your studio workflow. Connect a turntable to the RCA inputs, use the ⅛-inch stereo input to plug in your smartphone, or forget the cable and connect it via Bluetooth wireless technology. You can also toggle between a stereo playback stream from your computer and playback from the onboard SD recorder, making it simple to add bumpers and sound effects to your podcast in real-time, or practice along with your favorite recordings.
Stereo recording without a computerImagine you’re rehearsing with your band and want to record your session to analyze later. Or perhaps you’re in the middle of a songwriting session and want to capture your ideas as quickly as they come to you. Either way, the StudioLive AR12c’s stereo SD recorder has you covered. Insert any SD/SDHC card and you’re ready to record your main mix to listen to later, so you’ll never forget a great song idea or an amazing guitar solo. Doing mobile interviews for your podcast? Leave the computer at home and record straight to SD.
Effects without latencyMonitoring with reverb and delay helps to create better recordings. Any vocalist or guitarist will tell you that a little reverb makes them feel more at ease while performing. The StudioLive AR12c mixer’s onboard effects processor lets you add high-quality reverb, delay, or chorus to any channel for a professional monitor mix. Like what you hear in your headphones? Record the Main Mix and capture the effects mix, too—with or without the dry channels—to blend with your multitrack recording. Experiment in post-production to your heart's content.
All the Connections you Need
Looking familiarPacked with all the connections and controls needed to mix and record podcasts, live streams, and music productions, the StudioLive AR12c is the ultimate recording solution. The four mono channels and four stereo channels include a musical three-band EQ, plus one of PreSonus’ famed XMAX high-gain mic preamps. Two dedicated monitor mixes with balanced outputs provide your musicians the custom mix they need. The USB-C compatible connector ensures your StudioLive AR12c audio interface will be the center of your studio for years to come. With high-resolution 96 kHz recording, a full complement of connections, and an instantly familiar workflow, the StudioLive AR12c is the perfect recording and mixing solution.
Award-Winning Recording Software Included
Studio One Artist music production software includedWhile compatible with any macOS or Windows recording application, the Studiolive Ar16c ships as a complete recording studio with Studio One Artist music production software included. Easy to learn, Studio One enables you to compose, record, and produce without getting distracted by the tools. Need a new loop or sample for your latest production? Studio One lets you shop, audition, and purchase new content right from your production environment—including powerful extensions for Studio One like the Presence XT Expansion packs and the PreSonus Channel Strip Collection.
Includes Studio Magic Plug-in SuiteThis suite of plug-ins adds a wealth of fresh virtual instruments and effects to Studio One. Cherry-picked from the first names in virtual instruments and effects, each plug-in brings a different flavor of practical magic to your songs. These plug-ins aren't gimmicky one-trick ponies — these are real-deal workhorses that you'll rely on for countless mixes.
The Tech Spec
| Microphone Preamp | Type | XLR Female, Class A XMAX |
|---|---|
| Maximum Input Level | +9 dBu ±1.0 dB |
| Gain Control Range | 43 dB (+12 to +55 dB) |
| Frequency Response to Analogue Outputs | 20 Hz to 20 kHz, +0.5/-1.5 dB |
| Frequency Response to USB (Direct) | 20 Hz to 20 kHz, +0.5/- 1.5 dB |
| S/N Ratio to Outputs (+4 dBu) | 94 dB |
| THD+N (min. gain, A-wtd) | < 0.01% |
| Input Impedance | 1kΩ |
| Phantom Power | +48V, ±3V, Global |
| Instrument Inputs | |
| Type | ¼” TS Female, Unbalanced, Hi-Z |
| Maximum Input Level | +9 dBu ±1.0 dB |
| Gain Control Range | 43 dB, ±1 dB (+12 to +55 dB) |
| Frequency Response to Analogue Outputs | 20 Hz to 20 kHz, +0.5/-1.5 dB |
| Frequency Response to USB (Direct) | 20 Hz to 20 kHz, +0.5/-1.5 dB |
| Dynamic Range (min. gain, A-wtd) | > 105 dB |
| Dynamic Range (mid. Gain, unwtd) | > 108 dB |
| Input Impedance | > 1 MΩ |
| Line Inputs | |
| Type | ¼” TRS Female, Balanced |
| Maximum Input Level | +26 dBu ±1.0 dB) |
| Gain Control Range | Mono Channels: 40 dB, ±1 dB (-5 to +35 dB) Stereo Channels: 0 dB or +10 dB (+10 dB Boost) |
| Frequency Response to Analogue Outputs | 20 Hz to 20 kHz, +0.5/-1.5 dB) |
| Frequency Response to USB (Direct) | 20 Hz to 20 kHz, +0.5/-1.5 dB |
| Input Impedance | 10 kΩ |
| Main, Control Room, Monitor, and FX Outputs | |
| Type (Main Outputs) | XLR Male, Impedance Balanced |
| Type (Control Room, Monitor, FX Outputs) | ¼” TRS Female, Balanced |
| Rated Output Level (Main Outputs) | +24 dBu, ±1.0 dB |
| Rated Outputs Level (Control Room, Monitor, FX Outputs) | +18 dBu |
| Frequency Response | 20 Hz to 20 kHz, +0.5/-1.5 dB |
| Dynamic Range (A-wtd) | > 108 dB |
| Output Impedance | 100 Ω |
| Headphone Outputs | |
| Type | ¼” TRS Female, Stereo, Unbalanced |
| Maximum Output Level | 150 mW/channel @ 60 Ω |
| Frequency Response | 20 Hz to 20 kHz, +0.5/-1.5 dB |
| Dynamic Range | > 103 dB |
| Total Harmonic Distortion | < 0.01% |
| Digital Audio | |
| Host Interface | USB 2.0 |
| Bit Depth | 24-bit |
| Supported Sample Rates | 44.1, 48, 88.2, 96 kHz |
