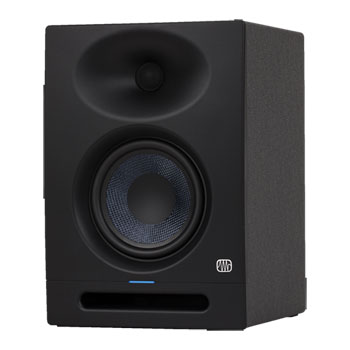

PreSonus Eris Studio 5
PreSonus - Eris Studio 5, 5.25" Powered Studio Monitor with Woven Composite LF Driver
- SCANPROTECT Protect against installation damage for 28 days. More info
5.25" Compact Studio Monitor
PreSonus - Eris Studio 5
the new standard for compact studio monitorsBuilding on the reputation of its award-winning predecessors, the Eris® Studio 5 is a substantial update that delivers richer low-end and more controlled high-frequency response, reproducing every detail in your recordings with a natural sound unparalleled in its class.
The custom-designed EBM (Elliptical Boundary Modeled) waveguide provides superior high-frequency response and wide 120-degree horizontal dispersion to create a broad sweet spot. Narrow vertical dispersion reduces reflections from your desk, and a silk-dome tweeter ensures snappy, accurate transient reproduction. An elegant new enclosure design improves the waveguide performance so you'll hear the finest details in your mix.
The woven-composite low-frequency driver offers Eris' signature tight, clear bass, with plenty of punch. The ported enclosure and 80W of biamped power maximizes bass response and allows the Eris Studio 5 to reach down to an astonishing 48 Hz - without a subwoofer. Designed for superior performance in both home studios and professional mix rooms, the Eris Studio 5 combines flexible connectivity with sonic accuracy that puts it a class all its own.
5.25"Driver Size
48Hz - 20kHzFrequency Response
102 dBMax SPL
At a glance
• 5.25-inch, woven-composite, low-frequency transducer
• 1-inch (25 mm), ultra-low-mass, silk-dome, high-frequency transducer
• 120˚(H) x 60˚(V) EBM waveguide for wide sweet spot
• Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing
• 80W, Class AB biamplification
• 48 Hz to 20 kHz frequency response
• 102 dB SPL (Peak, @ 1 meter)
• Acoustic Tuning controls: HF (±6 dB, continuously variable); Midrange (±6 dB, continuously variable), and Acoustic Space (flat, -2, -4 dB), plus highpass filter (Off, 80 Hz, 100 Hz)
• RF interference, output-current limiting, over-temperature, transient, subsonic protection and amplifier "soft start" feature (eliminates popping on power-up)
• Internal power supply with IEC connector and power switch with on/off LED

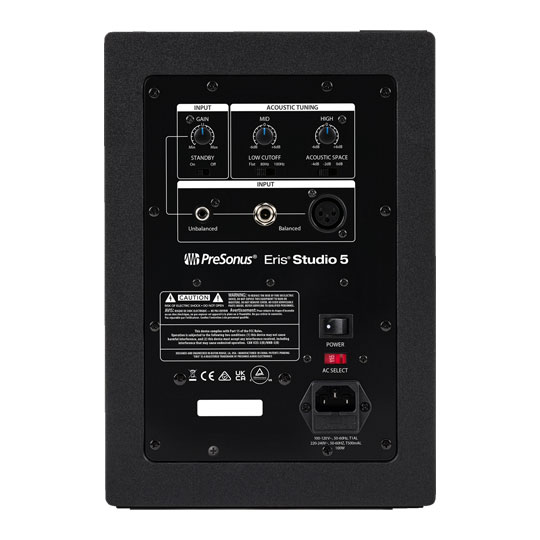

• Balanced XLR and ¼-inch inputs and unbalanced RCA inputs
Standout Features
SET UP YOUR STUDIO MONITORS FOR YOUR ROOM.Eris® Studio 5 active monitors are equipped with Acoustic Tuning controls to ensure the flattest response in your mix environment. You get Low Cut, Mid, and High controls, as well as three-way Acoustic Space tuning that makes it easy to compensate for the boundary bass boost that occurs when a speaker is placed too close to a wall.
HONEST. EXPRESSIVE. POWERFUL.Like all PreSonus® studio monitors, the Eris® Studio 5 offers consistent, accurate listening. Their stylish design makes them a welcome addition to any mix space and their smooth, incredibly even frequency response ensures that your mixes will sound great everywhere.
The Tech Spec
| Features | Specification | Voltage | 220-240V UK |
|---|---|
| Wattage | 80 Watts |
| Input Impedance | 10 kΩ |
| Peak SPL | 102 dB (@ 1 meter) |
| Crossover Frequency | 3.5 kHz |
| Cabinet Material | Vinyl-Laminated, Medium-Density Fiberboard |
| Audio Controls | Volume High Frequency (±6 dB, center 10 kHz, continuously variable) Mid Frequency (±6 dB, center 1 kHz, continuously variable) |
| Monitor Inputs | 1- Balanced XLR, 1- Balanced ¼” TRS, 1- Unbalanced RCA |
| Power Amplifier Type | Class AB |
| Measurements | DIMENSIONS 29.21x20.32x22.35 CM SHIPPING WEIGHT 5.27 KG PRODUCT DEPTH 8.78" (22.3 cm) PRODUCT HEIGHT 11.5" (29.2 cm) PRODUCT WIDTH 8" (20.32 cm) SHIPPING LENGTH 22.35 CM SHIPPING HEIGHT 29.21 CM SHIPPING WIDTH 20.32 CM |
