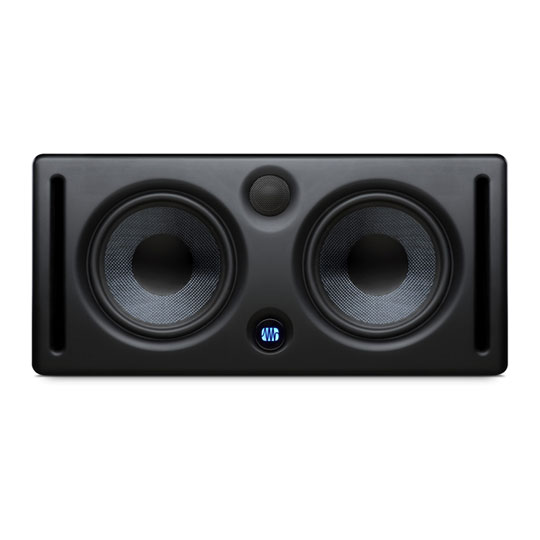

ERIS E66 PreSonus Nearfield Monitor

PreSonus ERIS E66 Monitor, 6.5 inch Kevlar LF drivers, 1.25 inch silk-dome HF driver (Single)

Thumbnail 1 : ERIS E66 PreSonus Nearfield Monitor Thumbnail 2 : ERIS E66 PreSonus Nearfield Monitor
Scan code: LN68093 Manufacturer code: ERIS E66
£340.00
Free Delivery
From £16.32 / month (APR 14.9%)
Monthly Payment: £59.00
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £340.00
Total inc. interest: £353.99
Monthly Payment: £30.53
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £340.00
Total inc. interest: £366.29
Monthly Payment: £21.05
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £340.00
Total inc. interest: £378.83
Monthly Payment: £16.32
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £340.00
Total inc. interest: £391.65
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £8.49 / month (APR 15.9%)
Delivery Options
  • By DPD On 17th Aug 2018 to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Smooth and Wide

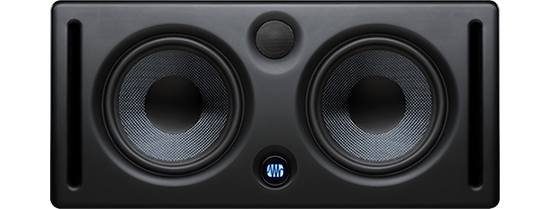

The Eris E44 and E66 deliver an expanded and highly accurate frequency response and the widest stereo field available in their class. Their nested Midwoofer-Tweeter-Midwoofer (MTM, also known as "D'Appolito") configuration offers improved off-axis response and spatial resolution. The result is a more consistent listening experience, smoother frequency response, and an ultra-wide, detailed stereo soundstage.

Stereophonic
Conventional 2-way designs can cause significant early reflections from their surrounding environment. The E44 and E66 overcome this by positioning a 1.25-inch, silk dome high-frequency driver between two 4.5-inch (E44) or 6.5-inch (E66) midrange drivers. The two smaller woofers work in parallel to partially contain the dispersion of the tweeter, minimizing phase displacement. The result is incredibly detailed stereo imaging.

Seeing Double
Both the E44 and the E66 feature two midrange drivers that cover the same frequency range. The drivers are placed so that their acoustic centers are less than one wavelength apart for any of the frequencies they reproduce; as a result, the combined signal of both drivers propagates forward like a single waveform. This makes the comparatively small midrange drivers in the E44 and E66 behave like a single, larger driver. This mutual coupling provides a highly dynamic output in a compact footprint.

Consistent Listening
Sound waves radiating from the two components in a conventional speaker design can interfere with one another, creating peaks at some frequencies and dips at others, and these will vary depending on where the listener is relative to the speaker. In an MTM configuration, component interference, and the sonic inconsistencies that go with it, are minimized. This affords listeners an ultra-wide sweet spot and a more consistent listening experience on- and off-axis.

Transparent and Cohesive Sound
The E44 and E66 utilize custom-woven Kevlar® low-frequency drivers. This provides a more constant dispersion pattern throughout the frequency range, resulting in less time-smeared audio and cleaner overall sound. The weave and nature of the dual Kevlar woofers also helps break up reflected energy, so fewer delayed reflections reach the listener’s ear. In conjunction with the MTM configuration, this works to create a transparent, cohesive sound.

Horizontal or Vertical—It’s Up to You
Many MTM configurations must be arrayed vertically, rather than horizontally, because vertical placement provides a clear, interference-free midrange and treble reproduction to either side, expanding the sweet spot. By bringing the midrange drivers closer together and raising the high-frequency driver, the E44 and E66 are able to perform optimally in both orientations. So, like all Eris speakers, the E44 and E66 let you position your speaker the way that works best for you.

You’re in Control

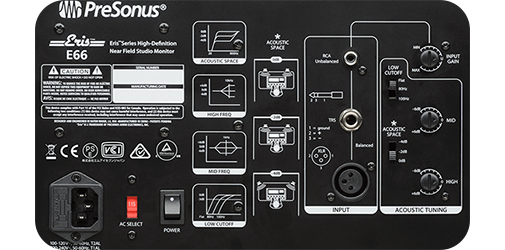

Today’s music producers deal with a wide variety of musical genres and often work in more than one location. That’s why Eris-series studio monitors offer extensive acoustic tuning controls. The three-position Acoustic Space switch helps to compensate for the boundary bass boost that can occur when a monitor is placed in a corner or near a wall. High and Mid controls help to further mitigate room anomalies. A Low Cutoff filter makes it easy to integrate a Temblor subwoofer into your monitor setup.

Making Connections
With three different types of audio inputs, it’s easy to feed audio to your Eris monitors from a mixer, an interface, a media player, or almost any other line-level source. The Eris E44 and E66 provide balanced XLR, balanced ¼” TRS, and unbalanced RCA line-level inputs. With this selection, you’ll have no problem hooking your Eris speakers up with virtually any line-level source.

Accuracy Defined
Like all PreSonus studio monitors, the Eris E44 and E66 offer consistent, accurate listening. The ultra-wide stereo image afforded by their MTM design, makes them an ideal solution for any one who requires best-in-class spatial resolution. Like the rest of the Eris studio monitors, the E44 and E66 set a new standard for affordable studio monitors. Hear them at your favorite PreSonus dealer. Features Components and construction:
• Dual 4.5-inch/6.5-inch, custom-woven Kevlar® LF/midrange drivers produce dynamic, size-defying bass output.
• 1.25-inch, silk-dome HF driver ensures smooth high-frequency performance that is never fatiguing to the ears.
• Balanced XLR, balanced ¼-inch TRS, and unbalanced RCA inputs provide flexibility for seamless integration into any environment.

User controls:
• Acoustic tuning controls help to compensate for room anomalies, providing a consistent frequency response customized for your mix environment.
• Continuously variable HF and MF controls (-6 to +6 dB).
• Low-cut filter (flat, 80 Hz, 100 Hz).
• Acoustic Space settings (Flat, -2 dB, -4 dB) compensates for room placement.

Power and safety:
• 90W/140W Class A/B bi-amplification for an open, clear sound.
• RF interference, output-current limiting, over-temperature, and subsonic filter protection.
• Amplifier “soft start” feature eliminates popping on power-up.
• Internal power supply with IEC connector.
Specifications
Speaker Type Nearfield
Total Wattage (RMS)
I/O Connections
  • 1 x 6.35mm (1/4") Jack Input
  • 1 x RCA In
  • 1 x XLR In
Bass Port
Frequency Response 45Hz - 22kHz
Max SPL 106 dB
Cone Size
Warranty
