Scan code: LN65214 Manufacturer code: NH-D15S

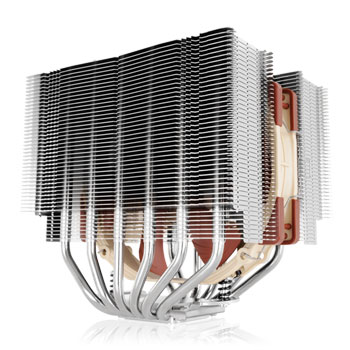

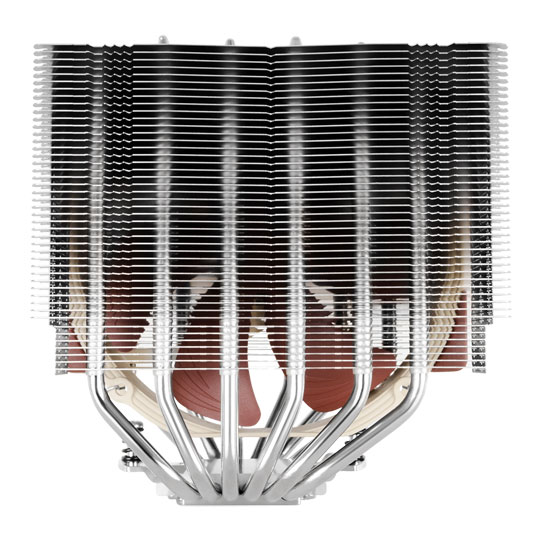

Noctua NH-D15S Dual Radiator Intel/AMD CPU Cooler

Noctua NH-D15S Dual Radiator Quiet CPU Cooler, 1x 140mm PWM Fan, Copper Heatpipes, Aluminium Fins, Intel/AMD

Thumbnail 1 : Noctua NH-D15S Dual Radiator Intel/AMD CPU Cooler Thumbnail 2 : Noctua NH-D15S Dual Radiator Intel/AMD CPU Cooler Thumbnail 3 : Noctua NH-D15S Dual Radiator Intel/AMD CPU Cooler
Scan code: LN65214 Manufacturer code: NH-D15S
Order now and get it tomorrow, Mon 30th May
Get it Tomorrow, 30 MayIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 30th May to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Frequently Bought Together
Product Overview

Award Winning Quiet CPU Cooler

Tailored to provide superior RAM and PCIe compatibility, the NH-D15S is an asymmetrical single fan version of Noctua’s award-winning flagship model, the NH-D15. Thanks to its asymmetrical design, the NH-D15S clears the top PCIe slot on most Micro-ATX and ATX motherboards. At the same time, the single fan setup and recessed lower fins guarantee 100% RAM compatibility with memory modules of up to 65mm height. Users who have sufficient room can also upgrade the cooler with either a 120mm or round 140mm fan on the front fin stack for further improved performance in dual fan mode. Topped off with the trusted, pro-grade SecuFirm2 multi-socket mounting system, Noctua’s proven NT-H1 thermal compound and full six year manufacturer’s warranty, the NH-D15S forms a complete premium quality solution that combines dual tower efficiency with excellent compatibility and flexible upgrade options.

High-Compatibility Version of NH-D15

Compared to the award-winning NH-D15, the S-version uses an off-set, asymmetrical layout and a single instead of dual NF-A15 fans. This allows the NH-D15S to provide state-of-the-art heatsink performance while maintaining superior RAM and PCIe compatibility.

Excellent RAM Compatibility

Thanks to its recessed lower fins, the NH-D15S provides 65mm clearance for tall memory heatsinks, making it compatible with most high end modules on the market. As the lower fins are recessed on both sides of the heatsink, compatibility is excellent not only on LGA115x and AMD, but also on LGA2011 where there are RAM slots on both sides of the socket.

Asymmetrical Layout for Better PCIe Compatibility

As many current motherboards have the top PCIe x16 slot sitting close to the socket, bigger heatsinks tend to block it. Due to its asymmetrical layout, the fin-stack of the NH-D15S is off-set towards the upper edge of the motherboard when installed in standard orientation. This allows it to clear the top PCIe x16 slot on most current µATX and ATX motherboard.

NF-A15 140mm fan

Complying with Noctua’s AAO standard and featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 has quickly built up a reputation as one of the best 140mm fans on the market.

Dual-Fan Ready

Using the supplied extra fan clips, the NH-D15S can be upgraded with either a second round-frame 140mm fan with 120mm mounting holes (such as the NF-A15) for maximum performance or a common 120mm fan (such as the NF-F12) for improving performance while maintaining compatibility with RAM modules of up to 45mm height.

PWM support and Low-Noise Adaptor

The NF-A15 premium fan supplied with the NH-D15S supports PWM for convenient automatic speed control through the motherboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation.

Excellent Component Cooling

Extending below the fin-stacks, the large NF-A15 fan not only contributes to the superb CPU cooling capabilities of the NH-D15S but also provides massive airflow over surrounding motherboard components and heatsinks, thus ensuring excellent component cooling performance.

SecuFirm2™ Mounting System

Noctua’s SecuFirm2 mounting systems have become synonymous with quality, safety and ease of use. Supporting Intel LGA115x (LGA1150, LGA1151, LGA1155, LGA1156), LGA2011 (LGA2011-0 & LGA2011-3), LGA2066 and AMD (AM4 (since 2019), AM3(+), AM2(+), FM1, FM2(+)), the SecuFirm2 mounting included with the NH-D15S guarantees perfect contact pressure and maximum convenience on all current sockets.

Compatibility with Past and Future Sockets

Complying with the open SecuFirm standard, the NH-D15S can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided by Noctua free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets.

NT-H1 Thermal Compound

Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua’s NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability.

Six Year Warranty

Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A15 features an MTBF rating of more than 150,000 hours and the entire NH-D15S package comes with a full six years manufacturer’s warranty.

• Based on the award-winning NH-D15.
• Asymmetrical layout for better PCIe compatibility.
• Single NF-A15 PWM 140mm fan.
• SecuFirm2 mounting system.
• Compatible with Intel LGA2011-0/1155/1156/1151/1150 and AMD FM1/FM2/FM2+/AM3+/AM3/AM2+/AM2.
Cooler Specifications
Edition NH-D15S
Cooler Form Factor
Cooler Features
  • Aluminium Fins
  • Copper Base
  • Copper Heatpipes
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
  • 2011
  • 2066
  • AM2 (Backplate Required)
  • AM2+
  • AM3
  • AM3+
  • AM4
  • FM1
  • FM2
  • FM2+
Max. TDP
Fan Specifications
Included Fan Configuration 1 x 140mm
Fan Edition Noctua NF-A15 PWM
PWM Fan Yes
Fan Bearing Type SSO2
Fan Colour
LED Lighting
Fan/Pump Connectors
Max. Fan Speed 1500 rpm
Max. Fan Airflow 82.5 CFM
Max. Air Pressure
Max. Sound Level 24.6 dBA
Cooler Materials Aluminium / Nickel Plated / Copper
Included TIM (Thermal Interface Material)
Dimensions & Weight
Heatsink/Radiator Dimensions 150 x 160 x 135 mm (WxHxD)
Total Dimensions 150 x 160 x 135 mm (WxHxD)
Weight 1150 g
Additional Information
Scan Code LN65214
Model Number NH-D15S
GTIN 4716123315681

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

60 months
Return to base
DOA Period:
7 days
RTB Period:
60 months
Manufacturer Contact Details
