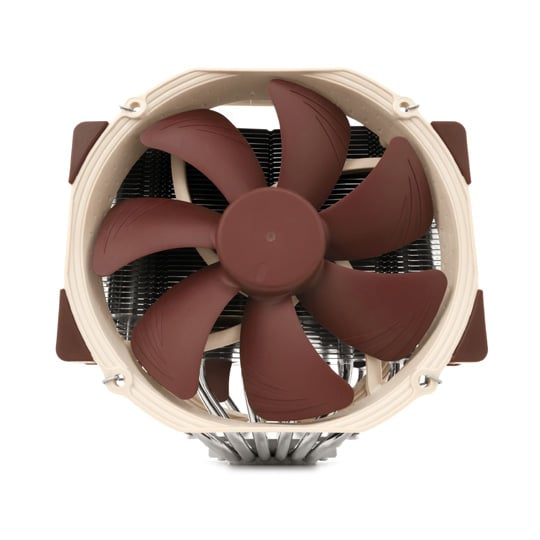

Noctua Intel/AMD NH-D15 Silent CPU Cooler

Noctua NH-D15 Dual Radiator Quiet CPU Cooler with two NH-A15 Fans

Noctua
Scan code: LN57020 Manufacturer code: NH-D15 Request call
£76.99
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
3xs Approved High End
Delivery options £5.48 By DPD On 9th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview Built on the basis of the legendary NH-D14 and carrying on its quest for ultimate quiet cooling performance, Noctua's flagship model NH-D15 is an elite-class dual tower cooler for the highest demands. Its expanded heatpipe layout and two premium grade NF-A15 140mm fans with PWM support for automatic speed control allow it to further improve the NH-D14's award-winning efficiency. Topped off with the trusted, pro-grade SecuFirm2 multi-socket mounting system, Noctua's proven NT-H1 thermal compound and full six years manufacturer's warranty, the NH-D15 forms a complete premium quality solution that represents a deluxe choice for overclockers and silent-enthusiasts alike. Features Based on the award-winning NH-D14
Noctua's NH-D14 has received more than 350 awards and recommendations from leading international hardware websites and magazines, making it one of the most successful premium heatsinks ever built. With its expanded layout and dual NF-A15 fans, the NH-D15 further improves the D14's much acclaimed quiet cooling performance.

Six heatpipe dual tower design
As compared to conventional single tower heatsinks, the NH-D15's fine-tuned six heatpipe dual tower design provides more surface area, better heat-distribution and superior airflow efficiency in dual fan mode.

Widened fin stack and expanded heatpipe layout
Compared to the NH-D14, the NH-D15's fin-stack has been widened from 140 to 150mm and its heatpipes are now spaced further apart, which allows for a more uniform heat distribution over a larger surface area and thus contributes to the NH-D15's superior efficiency.

High RAM compatibility in single fan mode
Thanks to its recessed lower fins, the NH-D15 provides 64mm clearance for tall memory heatsinks in single fan mode, making it compatible with most high end RAM modules on the market. In dual fan mode, the NH-D15 should be used with standard height RAM (up to 32mm). Please note: In chassis with more than 165mm CPU cooler clearance, the front fan can be moved upwards to make room for memory modules taller than 32mm.

Dual NF-A15 140mm fans
The NH-D15 features two of Noctua's premium class NF-A15 140mm fans. Complying with Noctua's AAO standard and featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 has quickly built up a reputation as one of the best 140mm fans on the market.

PWM support and Low-Noise Adaptor
The NF-A15 premium fans supplied with the NH-D15 support PWM for convenient automatic speed control through the mainboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation.

Excellent component cooling
Extending below the fin-stacks, the large NF-A15 fans not only contribute to the NH-D15's superb CPU cooling capabilities but also provide massive airflow over surrounding motherboard components and heatsinks, thus ensuring excellent component cooling performance.

SecuFirm2 mounting system
Noctua's SecuFirm2 mounting systems have become synonymous with quality, safety and ease of use. Supporting Intel LGA115x (LGA1150, LGA1151, LGA1155, LGA1156), LGA2011 and AMD (AM3(+), AM2(+), FM1, FM2(+)), the SecuFirm2 mounting included with the NH-D15 guarantees perfect contact pressure and maximum convenience on all current sockets.

Compatibility with past and future sockets
Complying with the open SecuFirm standard, the NH-D15 can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided by Noctua free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets.

NT-H1 thermal compound
Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua's NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability.
Specifications
Cooler Specifications
Edition
Cooler Form Factor
Heatpipes
Cooler Features
Socket Compatibility
  • 1150
  • 1151
  • 1155
  • 1156
  • 2011
  • AM2/AM2+
  • AM3/AM3+
  • FM1
  • FM2
Max. Cooling Capacity
Fan Specifications
Included Fan Configuaration
Fan Edition
PWM Fan No
Fan Bearing Type
Fan Colour
LED Lighting Colour
Fan Connectors
Approx Fan Speed 1500 rpm
Adjustable Fan Speed Controller No
Fan Airflow 82.5 CFM
Air Pressure
Sound Level (dB) 24.6 dB
Sound Level (Sone)
Materials
Fan Material
Heatsink Material
Dimensions & Weight
Fan Dimensions
Heatsink Dimensions 150 x 165 x mm (WxHxD)
Total Dimensions
Weight
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
60 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
60 months
Manufacturer Contact Details
TekSpek Guides
Intel Core 2 Duo (Conroe)
Intel Core 2 Duo (Conroe)
Date Issued: 20th Oct 2008

The purpose of this TekSpek is to delineate the publicly known features of Intel’s next generation desktop microarchitecture. Codenamed Conroe and officially titled Intel Core 2 Duo, it’s loosely based on the current mobile Yonah (Core Duo) underpinnings.

Read More

AMD 64 Processors
AMD 64 Processors
Date Issued: 20th Oct 2008

This TekSpek explains what AMD’s AMD64 CPU instruction set architecture (ISA) is, shows what CPUs implement it from both AMD and Intel, and explains what software is available to run on those 64-bit consumer processors.

Read More

Chassis Airflow
Chassis Airflow
Date Issued: 20th Oct 2008

The modern PC is potentially a mass of heat output and heat production hot spots. With CPUs rated at more than 100W of heat output, single graphics boards carrying similar ratings (and people want to run two!), multiple hard drives the norm, lots of memory and mainboards covered in heatpipes to combat toasty core logic and PWM circuits, a PC appreciably warming up a room when it’s working hard is no joke.

Read More

Overclocking
Overclocking
Date Issued: 20th Oct 2008

This TekSpek explains why you’d want to overclock your graphics board, the risks in doing so and how you can go about doing it.

Read More

Core 2
Core 2
Date Issued: 14th Jun 2008

There’s been a lot of hype about Intel’s Core 2 recently, even since they launched Core in fact. Words like Conroe, Badaxe and Allendale have been flying around. The bottom line is that Core 2 is the name of Intel’s latest line of CPUs, based on a new micro-architecture, designed for speed and efficiency.

Read More

System Noise Reduction
System Noise Reduction
Date Issued: 5th Mar 2007

Anybody who has been near their share of computer systems will appreciate that not all systems make the same amount of noise. There are a number of reasons for why this is so. Firstly, a computer makes noise for different reasons. Generally, anything mechanical is going to make noise.

Read More

Reviews
Rated 5 out of 5 by 13 reviewers.
Rated 5 out of 5 by The best fan Superquiet CPU cooler, top value from Scan. Easy to install, its large so check measurements, does the job perfectly and I think Noctua fans are the best on the market. 09 March 2016
Rated 5 out of 5 by Great cooling option This has worked really well for to help bring i7 3820 OC temps down to an acceptable level (mid 50's for gaming at 1080/60 and mid 70's for Prime 95). Fitted fine into a Corsair 400r. Fans are quiet. 22 February 2016
Rated 5 out of 5 by Not much to say, it's quiet! Simple installation, comes with Intel 2011 and 115x mounting kits, as well as AMD although I did not use those. This was my first air cooler I've ever fit, I have always used the Corsair Hydro series coolers and they are some of the easiest coolers to mount. I would say this is about the same in comparison, I didn't need any help to hold the fans or cooler while fitting which is a nice bonus. Overall a great cooler that's quiet, has great performance and is easy to fit. This cooler is big, so check your case clearance from the motherboard tray to the side panel. Also if you don't have low profile RAM you will be limited to how the cooler is oriented. 01 January 2016
Rated 5 out of 5 by Huge! - But does the job This is a massive heatsink, a little bit on the expensive side - but you get what you pay for. The performance is fantastic, and it's super quiet. For anyone wanting to overclock, but prefers to stick with air cooling instead of water cooling - this is definitely the heatsink to buy. Just check carefully for case/motherboard compatibility before you buy. 14 November 2015
Rated 5 out of 5 by It's a beast, but it works brilliantly :) This thing is HUGE, but I guess that's how it is able to get such great results - obviously not for mini cases! I have this in a windowless Silverstone FT05 midi case and it JUST fits with nothing to spare - phew! The 2nd optional fan only just fits on my ASUS X99 Deluxe mobo - it doesn't sit flush because it is on top of the RAM modules, but fortunately the clips are tolerant of this. One feature I wasn't aware of is that it comes with two adapter leads to cut the RPM in half - as someone trying to build a silent PC this was a really nice feature and I can still run my system overclocked with minimal noise pollution which is just what I wanted. 19 October 2015
Rated 5 out of 5 by Amazing Temps Recently bought this to upgrade my old heat sink Gelid Tranquillo Rev 2 i was getting highs of 65c with it but since purchasing the Noctua NH-D15 the temps never exceed 57c on my core i7 4790k. I idle from a cold boot 24c to 30c on full load like video rendering i get 57c top. When gaming like GTA V i get around 49c to 50c best excellent buy a must have for a high end cpu. Fits perfectly in my 780T Case it still has room for more height the only thing i'd recommend is getting low profile memory as the 2nd fan raises up higher abit. Also make sure you're motherboard can fit this has it can overtake the first pci-e slot but the msi gaming 5 motherboard had no issues with it still roomy. It's true what they say pay more you get the best. 13 October 2015
Rated 5 out of 5 by Noctua NH-D15 Dual Radiator Quiet CPU Cooler with two NH-A15 Fans Great Cooling fan!!!!! I have my system Overclocked @4.7ghz with a AMD FX 8370 and it definitely not struggling, I am very happy with the temperatures my system is running at, I would highly recommend this for cooling. One more thing if your thinking of overclocking make sure this cooler is back up with good motherboard and PSU. I am using a Asus Crosshair V Formula Z AMD 990FX Motherboard. It's not just one component that get's a good overclock. 03 September 2015
Rated 5 out of 5 by Perfect! Very good cooler! Better than some water cooling systems. 07 May 2015
  • 2016-05-20 T12:52:49.697-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_13, tr_13
  • loc_en_US, sid_57020, prod, sort_default
2 next>>
Questions & Answers
(3 Questions : 8 Answers)

Product Q&A

Ask your questions. Share your answers.



« Back


Has staff answer
Has expert answer

5 answers

Compatible case

As this is quite a large radiator what case(s) would recommend for housing it?
Age: 25 to 34
Gender: Male
1 year, 8 months ago
Customer avatar
by
Manchester, UK
Read all my Q&A

Please wait while more information about kickerconspiracy is loaded.
Additional information about kickerconspiracy could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
Hello,

Most case manufacturers will list a maximum cooler height specification on their products, so we recommend finding one that you like the look of and then checking that it meets the below criteria!

In order to check whether the cooler isn’t too high for the case you have in mind, please check the distance from the motherboard tray to the side panel (tower cases) or top panel (desktop cases). If this distance is bigger than the height of the cooler (165mm) + 15mm (motherboard spacers + motherboard + CPU), the height/width of the case should be sufficient!

Kind regards
1 year, 8 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about Natalie is loaded.
Additional information about Natalie could not be loaded.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0

Answer:
Fractal R5
Phanteks Enthoo
Corsair Air 540
Age: 18 to 24
Gender: Male
1 year ago
Customer avatar
by
UK
Read all my Q&A

Please wait while more information about ObiWanKenoobi is loaded.
Additional information about ObiWanKenoobi could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
I have a be quiet!Silent Base 800 case and it fit in their perfectly.
Age: 35 to 44
Gender: Male
8 months ago
Customer avatar
by
Stowmarket, Stowmarket, Suffolk IP14, UK
Read all my Q&A

Please wait while more information about Gregsta is loaded.
Additional information about Gregsta could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
Check what size cooler the case you want supports, it will be under the specifications of the case on the page.
4 months, 2 weeks ago
Customer avatar
by
Read all my Q&A

Please wait while more information about Matt1155 is loaded.
Additional information about Matt1155 could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
The Fractal Design R4 fits it absolutely fine, and unless you're using a very shallow case, your main concern should probably be the motherboard.
1 year, 7 months ago
Customer avatar
by
London
Read all my Q&A

Please wait while more information about cr3ative is loaded.
Additional information about cr3ative could not be loaded.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0
Hi, I was wondering if the heatsink would block me from putting Dominator Platinums on a Z97 Gryphon Motherboard, any help is much appreciated.

Simon
Age: 17 or under
Gender: Male
10 months ago
Customer avatar
by
Bolton, UK
Read all my Q&A

Please wait while more information about SimonPenni is loaded.
Additional information about SimonPenni could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
Am using CORAIR VENGEANCE and the fan fits in their perfectly. I am only using 2 slots of ram. I would think you could adjust the fan to fit above them. Or fit it the other side but this is not recommended, if you want to get the best cooling for overclocking.
Age: 35 to 44
Gender: Male
8 months ago
Customer avatar
by
Stowmarket, Stowmarket, Suffolk IP14, UK
Read all my Q&A

Please wait while more information about Gregsta is loaded.
Additional information about Gregsta could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0

Answer:
Yes, if you are willing to either use a single fan on the cooler or are able to move the second fan above the RAM higher up the heatsink than standard if your case has the clearance.

See below for more

Corsair Dominator Platinum modules are 51mm in height

From the Noctua Website: Noctua NH-D15 FAQs

It is still possible to use RAM modules with up to 64mm height in single fan mode. In dual fan mode, the front fan will sit above the RAM slots as well. In this case, Noctua recommends using standard height RAM (up to 32mm). However, in chassis with more than 165mm CPU cooler clearance, the front fan can be moved upwards to make room for memory modules taller than 32mm (e.g. moving the fan 5mm up will increase the total height from 165 to 170mm and make room for 37mm tall modules).
Age: 25 to 34
Gender: Male
8 months ago
Customer avatar
by
London, UK
Read all my Q&A

Please wait while more information about NorBdelta is loaded.
Additional information about NorBdelta could not be loaded.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0
Has staff answer
Has expert answer

1 answer

What's the temps i7 4790K?

What are the idle and load temps do you get on stock? as I'm buying this soon and is it easy to install? also one more question is the thermal paste it comes with better then the antec mx 4 or about the same?

Thanks.
7 months ago
Customer avatar
by
London, UK
Read all my Q&A

Please wait while more information about nfxcr3w is loaded.
Additional information about nfxcr3w could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0

Answers

Answer:
Hello

Temps are dependant on to many factors to give an accurate estimate. This does include thermal paste from noctua

thanks
7 months ago
Customer avatar
by
Read all my Q&A

Please wait while more information about LizN is loaded.
Additional information about LizN could not be loaded.
+1point
1out of 1found this answer helpful.
Was this helpful?helpful1unhelpful0
