MXR Carbon Copy Analog Delay
MXR M169 Carbon Copy Analog Delay, Analog Delay Delivers Rich, Warm Bucket-Bridgade Delay With Up To 600ms Of Delay Time
Scan code:
LN99370
Manufacturer code:
JD-M169
This product is no longer available to purchase.
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
Product Overview

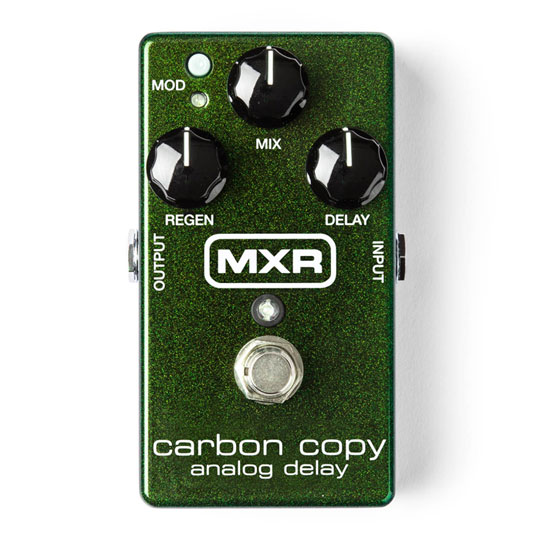

Go from crisp bathroom slap echoes to epic, Gilmouresque delays with the MXR Carbon Copy Analog Delay. Featuring 600ms of delay time with optional modulation, and a three-knob layout that controls Delay, Mix, and Regen.
In addition, there are two internal trim pots that offer user-adjustable width and rate control of the modulation for even more tonal options. All done by a completely analog audio path for authentic rich, warm analog delay-made possible only by old-school analog bucket brigade technology. True bypass. Features • 100% analog bucketbrigade technology
• Up to 600ms of delay with switchable modulation
• Internally adjustable modulation circuit
• True bypass
• Input Impedance: 1 MO
• Output Impedance: 1 kO
• Max Input Level: +5 dBV at 500 Hz
• Max Output Level: +8 dBV
• Noise Floor: Mix at Max CW -96 dBV / Mix at Max CCW -104 dBV
• Delay Distortion: <1% at 1 kHz, -5 dBV Input
• Delay Time: 20 ms to 600 ms
• Noise Reduction: 2:1 ratio
• Modulation Speed: 0.2 Hz to 2.2 Hz
• Bypass: True Hardwire
• Current Draw: 26 mA
• Power Supply: 9 volts DC
In addition, there are two internal trim pots that offer user-adjustable width and rate control of the modulation for even more tonal options. All done by a completely analog audio path for authentic rich, warm analog delay-made possible only by old-school analog bucket brigade technology. True bypass. Features • 100% analog bucketbrigade technology
• Up to 600ms of delay with switchable modulation
• Internally adjustable modulation circuit
• True bypass
• Input Impedance: 1 MO
• Output Impedance: 1 kO
• Max Input Level: +5 dBV at 500 Hz
• Max Output Level: +8 dBV
• Noise Floor: Mix at Max CW -96 dBV / Mix at Max CCW -104 dBV
• Delay Distortion: <1% at 1 kHz, -5 dBV Input
• Delay Time: 20 ms to 600 ms
• Noise Reduction: 2:1 ratio
• Modulation Speed: 0.2 Hz to 2.2 Hz
• Bypass: True Hardwire
• Current Draw: 26 mA
• Power Supply: 9 volts DC
