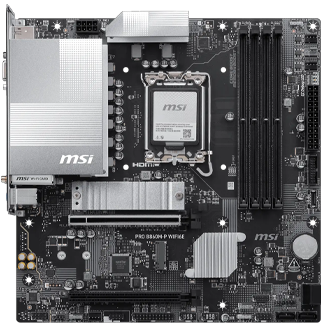

PRO B860M-P WIFI6E DDR5 PCIe 5.0 Intel Micro-ATX Motherboard from MSI

B860M-P WIFI6E mATX

Ultra PerformanceDesigned for modern Intel desktop systems, the mATX MSI PRO B860M-P WIFI6E combines the Intel B860 chipset and LGA 1851 socket with support for Intel Core Ultra Processors (Series 2), DDR5 memory, PCIe 5.0 graphics and storage connectivity, 2.5G LAN, and Wi-Fi 6E. With four DDR5 DIMM slots supporting up to 256GB, two M.2 slots including a PCIe 5.0 x4 connection, and a comprehensive selection of USB connectivity, it provides a capable foundation for compact productivity and gaming PCs. MSI's 6+1+1+1 digital power design, extended heatsink, M.2 Shield Frozr, Frozr AI Cooling, and EZ DIY features further enhance system performance, thermal management, and ease of installation.

B860Intel Chipset

LGA 1851CPU Socket

DDR5 RAMMax. 256GB (4 x 64GB)

MicroATXForm Factor

Incredible Power Design

6+1+1+1 DRPS POWER DESIGN Unlock and maintain peak performance with the flagship VRM design featuring a strong array of digital power phases.

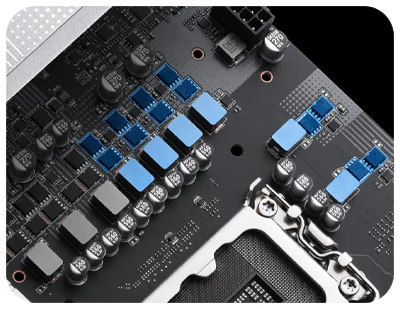

VRM Power Design

6 Vcore Direct P-PRK

1 SA Power

1 GT Power

1 VNNAON Power

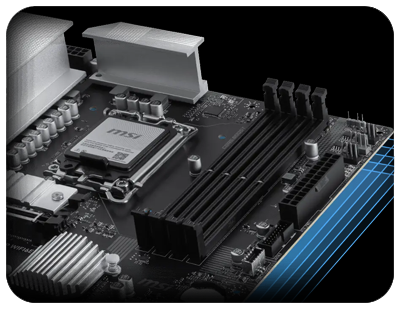

Optimised PCB

Optimised PCB The PCB design has been optimised to enhance bandwidth and accelerate transfer speeds, ensuring reliable circuit transmission. 6 PCB Layers Server-grade PCB material

High Performance Memory Support

DDR5 Memory Support

Unleash World-Class DDR5 Performance Experience a significant leap in DDR performance with the latest DDR5 memory. Paired with a dedicated SMT welding process and MSI Memory Boost technology, the MAG B860M-P WIFI6E is primed to deliver world-class memory performance.

EXPO / A-XMP Support

Memory Boost

SMT Process

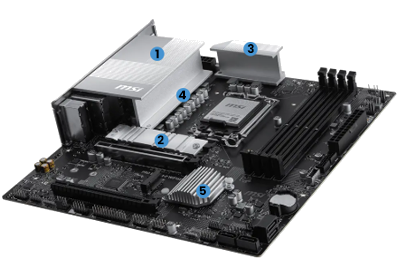

Frozr Cooling Design

1. Extended HeatsinksThe Extended Heatsink increases the surface area for heat dissipation, allowing even high-end processors to operate at full speed.

2. M.2 Shield FrozrAchieve reliable operation and incredible performance with this strengthened M.2 thermal solution.

Massive Cooling heatsinks

3. Heavy Plated VRM HeatsinkThe upper MOS is protected with the VRM heatsink for efficient heat dissipation.

4. 7W/mK Thermal PadPremium 7W/mK MOSFET thermal pads and additional choke thermal pads guarantee all cores operate at peak performance.

5. Enlarged Chipset HeatsinkThe enlarged heatsink design minimises dust and noise while ensuring efficient heat dissipation.

Thermals Done Your Way

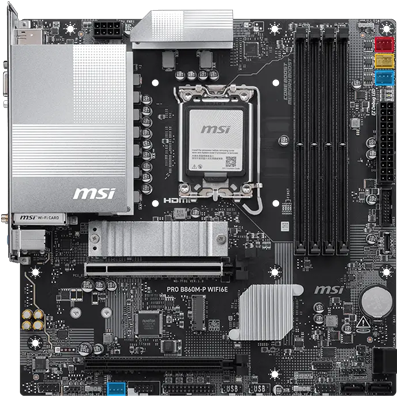

DIY 2.0

DIY 2.0 Connect and synchronise with MSI coolers and cases using strategically placed pin-header locations, including a dedicated pump-fan header.
For CPU Cooler
For Liquid Cooler
For System Fan
Exclusive EZ CONN. - JAF_2

A Breakthrough in Bandwidth

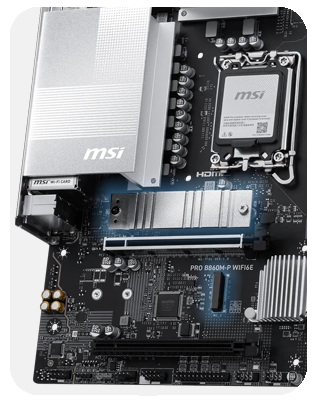

x2 M.2 2280 Slots

Triple Armoured M.2 Slots MSI utilises high-speed M.2 slots with PCIe Gen 4 and Gen 5 support, enabling faster load times and efficient data transfers for SSDs.

x1 M.2 PCIe 5.0 x4 (2280/2260)
x1 M.2 PCIe 4.0 x4 (2280/2260)

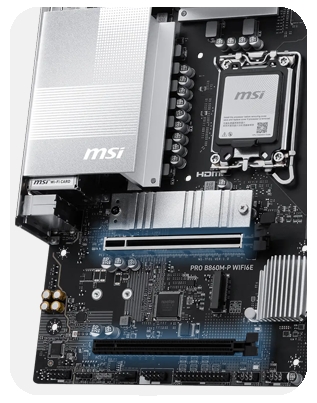

x2 PCIe x16 Slots

Packed with PCIe For PCIe, MSI motherboards maximise bandwidth with reinforced slots and advanced signal integrity, ensuring top-tier performance for GPUs and expansion cards.

x1 Steel Armoured Full-Length PCIe 5.0 (x16)
x1 PCIe 4.0 (x4)

Supercharge Your Networking

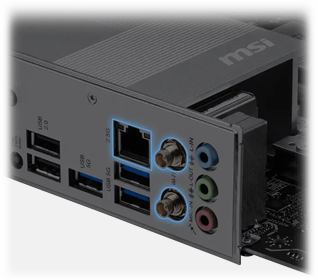

LAN

High-Bandwidth, Low Latency LANMSI's premium 2.5G network solution provides incredible transfer speeds for demanding users.

Peripheral Power

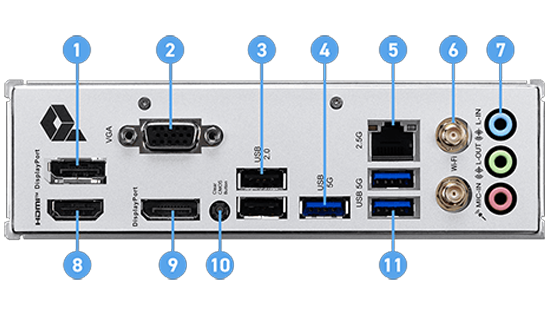

List of Connectivity Features
DisplayPort
VGA
USB 2.0
USB 5Gbps Type-A
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
HDMI™
DisplayPort
Clear CMOS Button
USB 5Gbps Type-A
Specifications
Core Specifications
Edition MSI PRO B860M-P WIFI6E
Form Factor MicroATX
CPU Socket 1851
Chipset AMD B860
RAM Memory Support
Memory Type DDR5
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR5 - 8800(OC)
Max. Memory Capacity 256GB
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 5.0 (x16)
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
  • D-Sub (VGA)
  • DisplayPort 1.4
  • HDMI 2.1
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-60/80, PCIe Gen4x4
  • 1 x M.2, 22-60/80, PCIe Gen5x4
  • 1 x PCIe 4.0 x16 (x4 Bandwidth)
  • 1 x PCIe 5.0 x16
  • 4 x SATA 6GB/s
SATA Support SATA3
RAID Support via SATA
Storage Mode Support
  • RAID 0 (SATA only)
  • RAID 1 (SATA only)
  • RAID 5 (SATA only)
Internal I/O
  • 1 x 24-pin (Power)
  • 1 x 8-pin (Power)
  • 3 x Aura Addressable Gen2 Header
  • 1 x Chassis Intrusion connector
  • 1 x COM Port
  • 1 x CPU Fan Connector
  • 1 x Front Panel Audio Header
  • 2 x Front Panel Connector
  • 1 x RGB LED connector
  • 2 x System Fan header
  • 1 x System Fan/Water Pump Header
  • 1 x TPM 2.0 Header
  • 4 x USB 2.0
  • 2 x USB 3.0 Type-A
  • 1 x USB 3.0 Type-C
External Connectivity
Network Interface Type
  • 802.11ax Wi-Fi 6E
  • Wired 2.5 Gigabit LAN
Network Chip/Modules 1 x 802.11ax WiFi + BT5.3
Rear I/O Connectors
  • 3 x Audio I/O
  • 1 x Clear CMOS Button
  • 2 x DisplayPort 1.4
  • 1 x RJ-45
  • 2 x USB 2.0
  • 3 x USB 3.0
  • 1 x VGA
  • 2 x WiFi Antenna connectors
Additional Specifications
Water Cooled No
Cooling Passive Heatsinks
QPI Speed N/A
Board Dimensions 243.8 x 243.84 mm
Note
Additional Information
Scan Code LN174121
Model Number PRO B860M-P WIFI6E
GTIN 4711377432696
