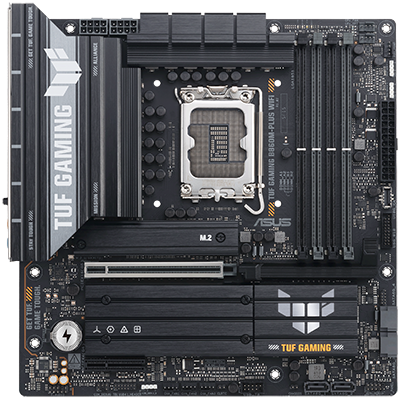

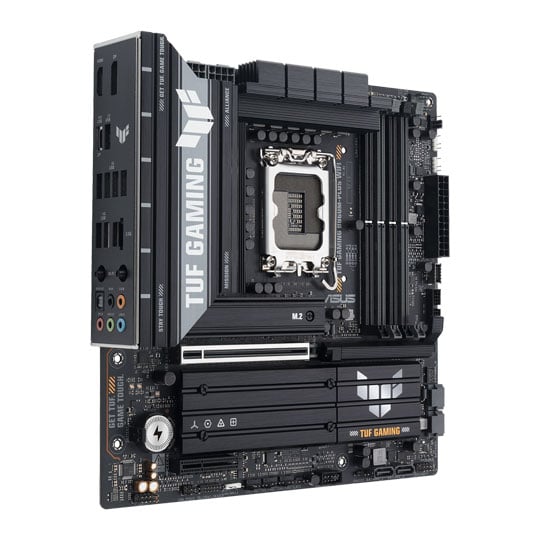

ASUS TUF GAMING B860M-PLUS WiFi Micro-ATX Motherboard
ASUS TUF GAMING B860M-PLUS WiFi, Intel B860, LGA1851, DDR5, PCIe 5.0, 3x M.2, 2.5GbE/WiFi7, USB 4.0, mATX
Email me when the availability or price changes
Finance this product
- From £15.40 / month (APR 16.9%) for 12 months or 0% for 4 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
TUF GAMING B860-PLUS WiFi DDR5 PCIe 5.0 Intel Micro-ATX Motherboard From ASUS
primed for the battlefront The ASUS TUF GAMING B860M-PLUS WIFI stands ready for high-stakes performance, built on the B860 chipset to power Intel Core Ultra Series 2 CPUs. With densely packed heatsinks and a hard-edged, martial aesthetic, the B860M-PLUS WIFI’s design is pure industrial flair, accentuated by bold orange touches that underscore its strength. Engineered with military-grade components, enhanced power circuitry for overclocking, and a robust cooling system, this small form-factor motherboard is relentless, staying stable under pressure for intense gaming and advanced AI tasks alike.
B860Intel Chipset
LGA 1851CPU Socket
DDR5 DIMMMax. 192GB (4 x 48GB)
MicroATXForm Factor
ASUS AI Intelligence
ASUS AI ADVISOR ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.
Masterfully Layered VRM
Robust ArchitectureStable power is crucial for maximising the performance of AMD processors. It features 12+1+2+1 power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.
12VCCCORE Phases
(80A, DrMOS)
1VCCGT Phases
(80A, DrMOS)
2VCCSA Phases
(80A, DrMOS)
1VNNAON Phases
(80A, DrMOS)
Alloy ChokesHighly permeable alloy-core chokes per phase.
High Quality CapsLasts thousands of hours at high operating temperatures.
8-Layer PCB DesignHigh speed, server-grade signal integrity.
Solid-Pin ConnectorsStable, reliable and long-lasting ATX & EPS connectors.
Memory & Storage Synergy

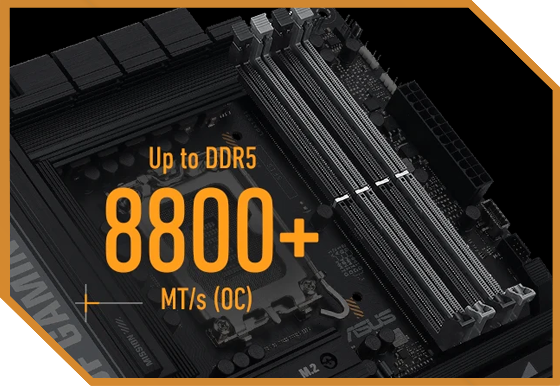

DDR5 DominationASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimised profiles for enhanced performance. For those looking to surpass stock DDR5 speeds, the B860M TUF GAMING PLUS offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks.

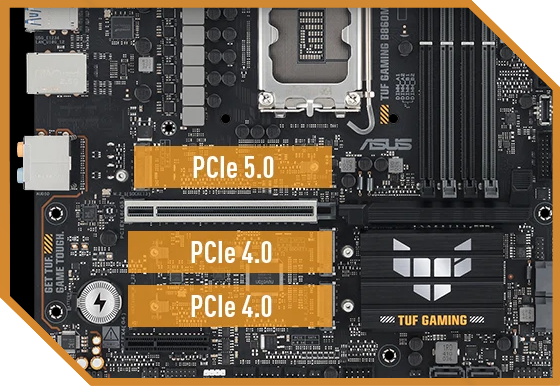

Loaded With M.2 SlotsThe B860M TUF GAMING PLUS features two PCIe 4.0 x4 M.2 slots and a PCIe 5.0 x4 M.2 slot, delivering high-speed storage expansion. The Gen5 M.2 slot enables data transfers up to 128 Gbps, while all M.2 slots support NVMe RAID, providing increased speed and redundancy to help safeguard data against drive failures.
DIY Friendly
GREAT FOR BEGINNER BUILDSThe TUF GAMING PLUS WiFi introduces EZ PC DIY features that streamline the building process for convenience and speed. A physical lever unlocks the first PCIe slot’s security latch with a single tap, simplifying the removal of graphics cards or other devices during upgrades. The ASUS Q-Latch offers tool-free M.2 SSD installation, using a simple locking mechanism for easy drive attachment and removal. Additionally, the Q-LED Core display provides color-coded lights during the Power-On Self-Test (POST), assisting with quick troubleshooting of potential issues.

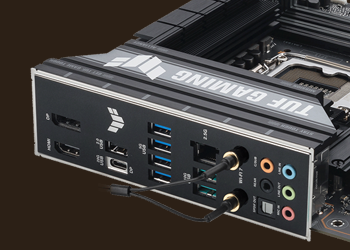

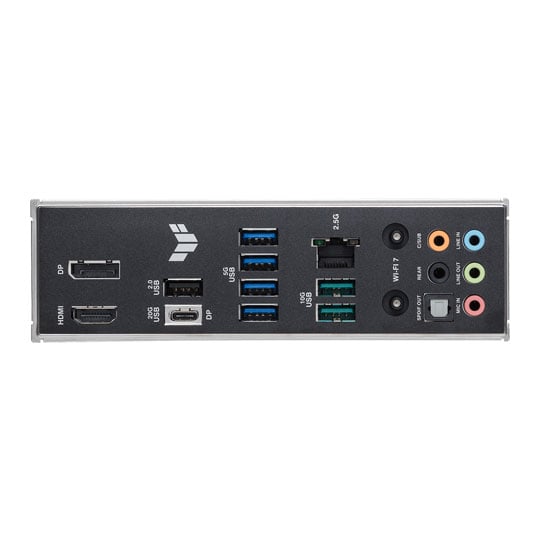

Pre-Mounted I/O ShieldThe pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.
PCIe Safe SlotASUS have adapted SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.

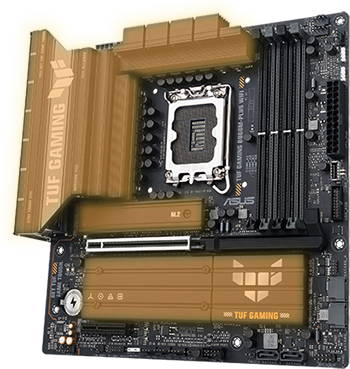

Frosted Flow
Laden With Heatsinks
• VRM & Thermal Pads from MOSFETs and chokes.
• 2x M.2 Heatsinks for throttling prevention.
• Passive Chipset Heatsink for performance and dust protection.
Radiator/Fan Support
• x2 CPU Fan Headers
• x3 Chassis Fan Headers
• x1 AIO Pump Header
Premium ConstructionThis motherboard features high-quality materials in its heatsinks, allowing for steady heat dissipation and lasting durability. Built to handle advanced cooling setups, it’s ready for both air and liquid cooling options, keeping everything cool and running smoothly even under heavy loads.
Embrace Ultra-Fast Connectivity
WiFi 7The next-gen WiFi 7 supports 160 MHz bandwidth in the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections and low latency, supporting 2.4, 5, and 6 GHz bands for enhanced coverage and throughput.
2.5Gb EthernetKick your LAN connection up a notch by improving bandwidth speeds by up to 2.5X. Using your existing cable, you can reduce lag, experience smoother high-resolution video streams, and enjoy faster file transfers.
Sleek Access for Seamless Action
Link Up With EaseThis motherboard offers extensive connectivity, with a well-organised layout that makes linking all your components a breeze. The stylish backplate not only adds a sleek touch but also reinforces the build for added stability. With its intuitive design, it’s perfect for beginners looking to dive into PC building, offering a user-friendly experience without compromising on quality or capability.
