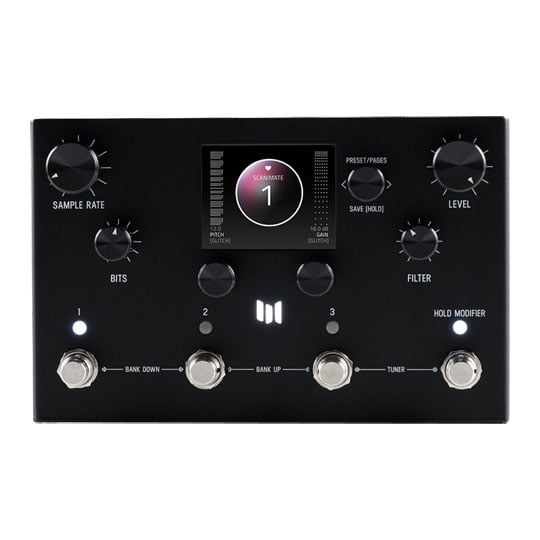

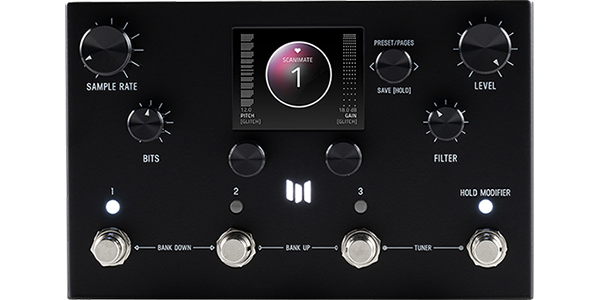

Meris Ottobit X Modular Degradation and Texture Engine Pedal
Meris - Ottobit X, Full Stereo Modular Degradation and Texture Engine with Vintage ’80s Nostalgia
Email me when the availability or price changes
Finance this product
- From £21.68 / month (APR 16.9%) for 36 months or 0% for 4 months
- With a 10% deposit from just £15.46 / month (APR 15.9%)
Modular Degradation and Texture Engine Pedal
Meris - Ottobit X
'80s DREAM REBORNA modular degradation and texture engine packed with ’80s nostalgia, pro audio heritage, advanced processing and high performance signal paths. Upgrading our past vintage gaming inspired devices, Ottobit Jr. + Ottobit Sr., now expanded with Lo-Fi sounds all reminiscent of the ’80s. Ottobit X features newer bitcrushing, stepped stutter and advanced sequencing plus glitch modes, filters, preamps, pitchshifters, and modulations. New VHS delay and reverb showcase sounds and textures that never been heard before. New real-time vinyl scratching looper, 1 button push looper, and tape stop (with variable speed control) provide real-time performance effects.
Amazing Features
• Full Stereo Modular degradation and texture engine with vintage ’80s nostalgia
• Advanced Bit Crusher
• 6 Glitch Types: Grain Freeze, Stutter, 2 (1 button loopers): Push Loop and Wikki Wikki (vinyl scratching), Tape Stop and Stutter Step
• 3 Filter Types: Ladder, State Variable and Otto Tron
• 2 Ambience Types: VHS Reverb and VHS Delay
• 5 Pitch Types: Poly Chroma, Otto Tune, Micro Tune, Mono Chroma, Lo-Fi
• 5 Modulation Types: Ring Mod, Div Trem, Tape Mod, Freq Shift, Otto Vibe
• 4 Preamp Types: Volume Pedal, Tube, Vinyl and Wavefold
• Intuitive, Award Winning Colour Screen based User Interface adapted from LVX and MercuryX
• Expressive Hold Modifier Switch for on the fly control
• 99 Preset Locations in 33 Banks
• 18 Artist Presets
• Favourite Preset Bank for instant access to your 3 favorite presets
• Instant Access Tuner with configurable Reference and Output mode
• Deep Modifier Section lets you route control signals to processing parameters
• Digitally controlled Analogue mix bus

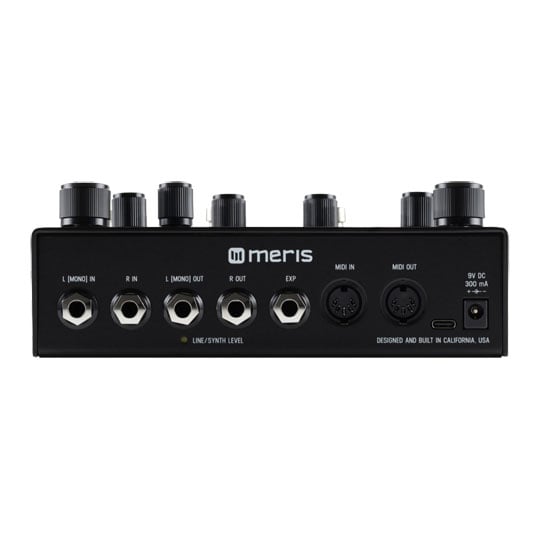

• Stereo input and output with separate jacks for each
• Switchable input/output headroom level for Instrument or Synthesizer / Line levels
• MIDI In and Out over standard MIDI Din Jacks or USB-C
• Assignable Expression Pedal control for multiple parameters simultaneously
• Dedicated Expression Pedal Jack
• MIDI implementation for Continuous Control Parameters
• MIDI Preset Send and Receive
• MIDI beat clock synchronization
• Advanced ARM Processor
• Premium analog signal path and 24-bit AD/DA w/32 bit floating point DSP
• Premium Analog Devices JFET input section
• Dimmable screen and logo light
• Colour – Matte Black or Limited Edition Multidimensional Pink
• Designed and Built in California, U.S.A.

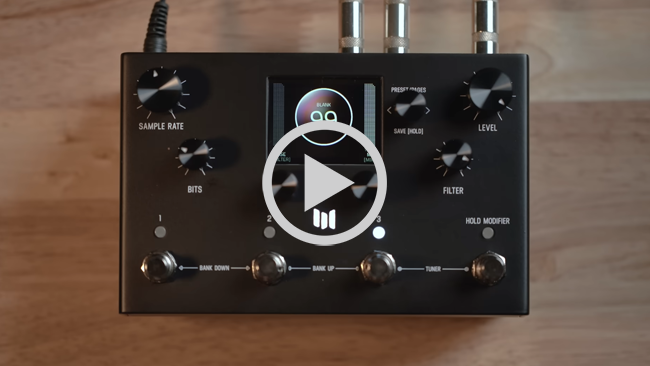

Meris Ottobit X Reveal (Stereo) 4k
The Tech Spec
| Features | Specification | Conversion | 24 bit A/D and D/A |
|---|---|
| DSP | 32 bit floating point |
| Sample Rate | 48000 Hz |
| Input Impedance | 1 Meg Ohm |
| SNR | 115 dB Typical |
| Frequency Response | 20Hz - 20kHz |
| Max Input Level | +9 dBu (instrument level setting) +12.5 dBu (line/synth level setting) |
| Power | 9V DC center-negative, 300mA, 2.1mm jack |
| Bypass | Selectable True Bypass (Relay) or Analogue Buffered Bypass |
| Dimensions | 7.25” wide, 4.5” long, 2” tall. |
| Weight | 24 ounces |
