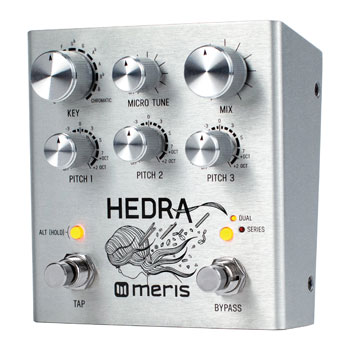

Meris Hedra 3-Voice Rhythmic Pitch Shifter Pedal
Meris Hedra 3-Voice Rhythmic Pitch Shifter Pedal, 24 bit A/D and D/A, MIDI Control
- By DPD On 11th Dec to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- UPS and DPD Pickup Pickup from local convenience store | £4.79
- SCANPROTECT Protect against installation damage for 28 days. More info
Meris - 'Hedra' - 3 Way Rhythmic Pitch Shifter
Intelligent 3 way Rhythmic Pitch Shifter Pedal Add the Hedra from Meris to your pedalboard and broaden your sonic palette, opening up whole new avenues for your guitar’s creative potential. A trio of voices in rhythm combine with the original signal to create truly ethereal sounds allowing you to sculpt magnificent three-dimensional soundscapes. Each of the 3 voices can be delayed separately and fed back in 4 different ways to create truly unique and dream-like sounds. Discover and explore innumerable creative paths with the Hedra 3-voice rhythmic pitch shifter from Meris.
Powerful in Execution

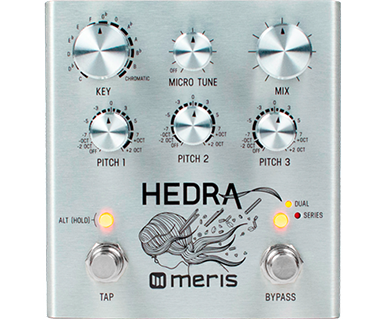

The Hedra’s front panel features simple and intuitive controls. Easily change the voice of melodies in real time by using the selectable pitch correction knobs, or select from any of the standard 12 scales using the ‘Key’ control and allow the Hedra to change the pitch of the incoming signal.
hair-raising harmonies Try harmonising the original signal quickly and accurately with common intervals such as a 3rd, 5th or 7th, the Hedra allows you to switch between these intervals with a smooth transition or a hard transition for dramatic effect. If you really want to push the Hedra and see what it’s capable of, experiment with 18 different intervals, spanning 4 octaves for truly mind-bending results. Not quite, what you’re looking for? Blend the pitch-shifted signal with the original to find your perfect blend using the ‘Mix’ control.

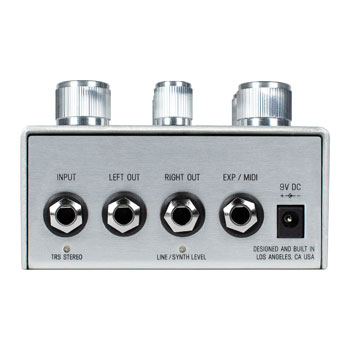

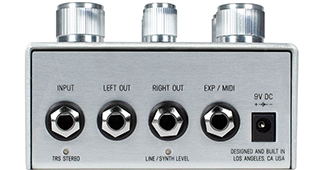

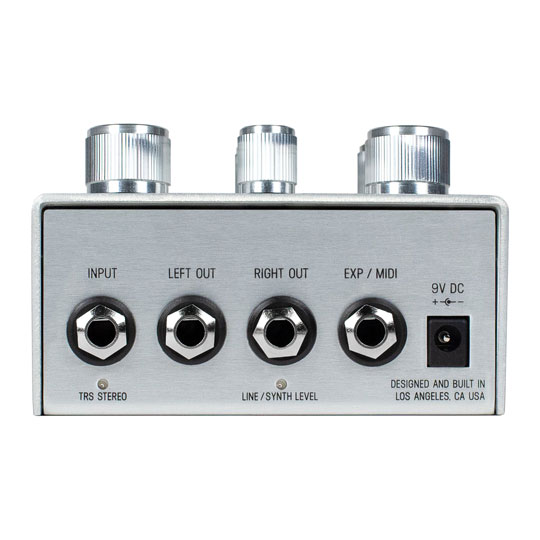

Advanced Connection Options The Hedra from Meris is much more than a stand-alone guitar pedal, it’s a ‘symphony in a box’. Feeling creative? Try your favourite synthesizer through the Hedra for some truly jaw-dropping results, simply flick from the ‘Line’ to ‘Synth’ level input. Or, try connecting your chosen MIDI controller via the dedicated TRS expression jack and take control over a quarter of voices. The scope for unique creative output here is massive.

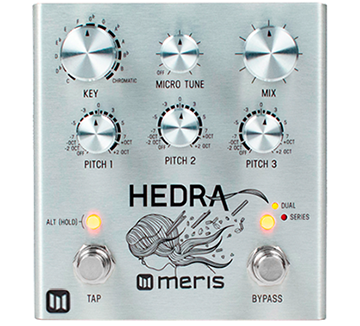

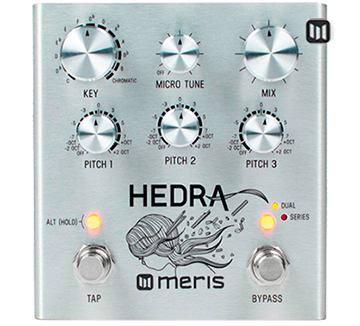

Controlling the Hedra

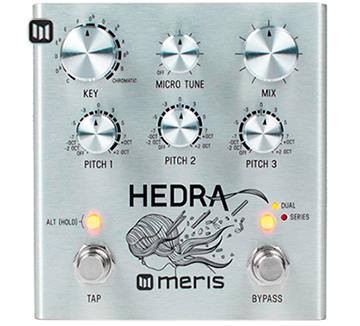

Select Key
Selects key for diatonic harmonies. Set to max for chromatic shifting
Alt Function: Scale Type Select
(from Min to Max): Major, Minor, Melodic Minor, Harmonic Minor, Double Harmonic, Eastern Pentatonic, Minor Pentatonic

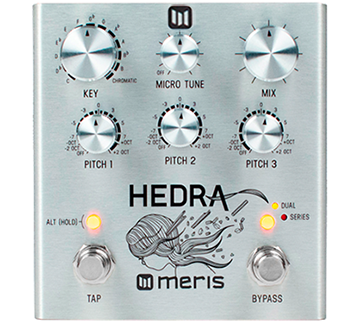

Micro Tune
Slightly detunes all three pitch shifted voices
Alt Function: Pitch Correction and Glide
When the knob is between Min and Mid select between: No Correction, Loose Correction, Strict Correction. When knob is between Mid and Max selects amount of glide
Mix Control
Adjusts the balance between Dry and Wet signals.
Alt Function: Delay Feedback Controls delay feedback.
Series delay modes: Pitch 3 sets the feedback loop.
Dual delay modes: Pitch 1 and 3 both add to the feedback loop

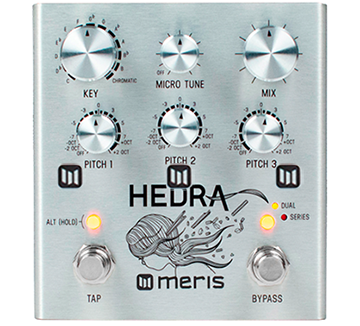

Pitch
Sets the interval for each pitch's voice.
Pitch 1 Alt fucntion: Time Division 1 Sets a fraction of the main tempo for the first pitch shifted voice.
Pitch 2 Alt function: Time Division 2 Sets a fraction of the main tempo for second pitch shifted voice.
Pitch 3 Alt function: Time Division 3 Sets a fraction of the main tempo for third pitch shifted voice

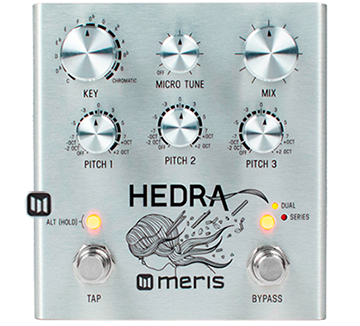

Alt Mode Alt Functions are only accessible when this button is held

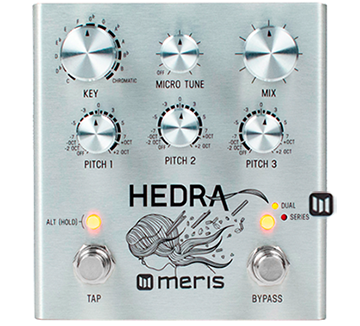

Select Mode
Dual: Splits the delay into 2 short delays with a stereo output
Dual + Series: the same 2 short delays as Dual mode, now with cross-feedback
Series: One long series delay with standard feedback
Pitch Feedback: One long series delay
with the pitch shifters in the feedback loop
Tap Tempo/Delay
Sets the main tempo/delay time. Total available time for the two Series delay modes = 520 msec. For the Two Dual delay modes = 260 msec
Alt Function: Half Speed Enables the delay to run at half speed
Hold Tap: Momentarily enable an automatic volume swell based on your pick attack

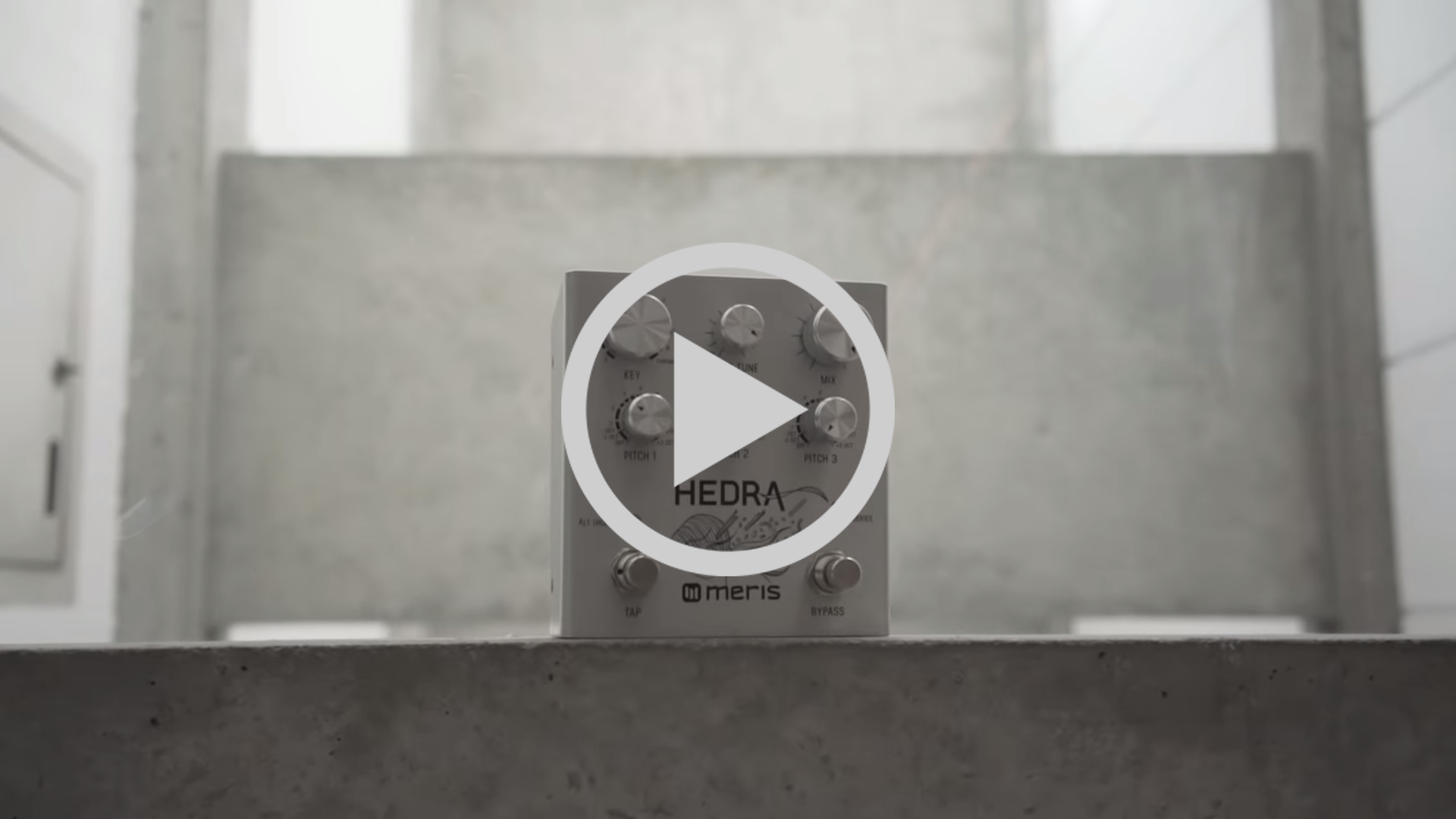

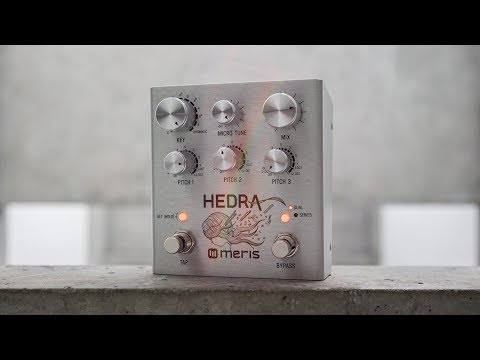

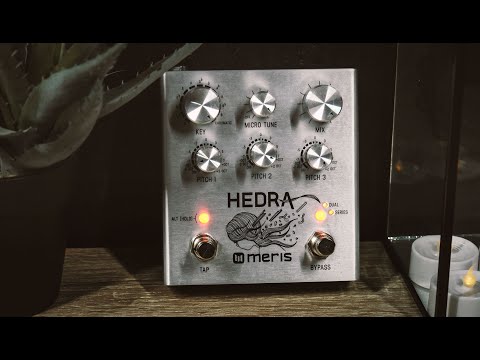

A Visual Overview of the Hedra
Click below for a great in-depth look at the mind-bending capabilities of this ground-breaking 3-voice rhythmic pitch shifter from Meris.
The Tech Spec
| Features | Specification |
|---|---|
| Digital/Analogue | Hybrid |
| Power Source | PSU |
| Stereo | Yes |
| True Bypass | Switchable |
| Midi Enabled | Yes |
| Tap Tempo | Yes |
| Voltage | 9V |
