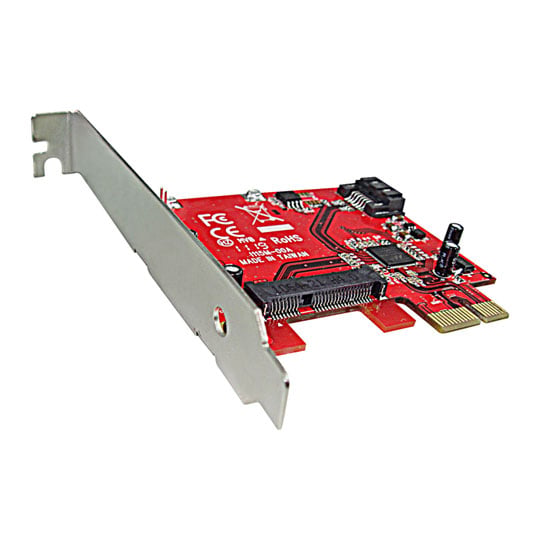

SATA to mSATA adapter Card PCIe from Lycom PE-115m

Lycom mSATA to SATA PCIe 2.0 Adapter Card with Hybrid Drive

Lycom
Scan code: LN40704 Manufacturer code: PE-115m Request call
£19.49
In stock
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
High End
Delivery options £5.48 By DPD On 13th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Frequently Bought Together
Product Overview Configured with one hard drive and one mSATA SSD, HybridDrive automatically migrate hot data to the SSD, while enabling all data to be safely stored on a larger capacity SATA HDD.

2Ports 6Gbps SATA III PCI Express 2.0 host board to support HybridDrive, Hardware Raid0, Raid1, NCQ & Port Multiplier!
Features • One 7Pin SATA connector and one mSATA (mini PCIe) socket on board
• 6Gbps SATA III 2 Ports PCIe Gen2 1 Lane Host Adapter
• Supports PCIe 1.0 and PCIe 2.0 motherboard
• Compliant with 5Gbps PCI Express 2.0
• Fully compliant with Serial ATA specifications 3.0
• Supports SATA III transfer rate of 6.0Gbps, 3.0Gbps, 1.5Gbps
• Support HybridDrive (HDD+SSD), Hardware RAID0, Hardware RAID1
• HybridDrive enables 80 percent of the performance of a solid state drive (SSD) at one-third the cost
• HybridDrive Modes: Safe Mode (Mirrored Protection), Capacity Mode (Cost-Optimized)
• Supports ATA and ATAPI commands
• Supports Native Command Queuing (NCQ)
• Supports one Port Multiplier FIS-based or Command-based switching and max two RAID groups
• Low Profile PCIe Form Factor
• Includes PCIe Low Profile and regular size two Brackets
• SATA Hot-plug capability
• Two Pin headers on board for LED connection
• Completely with drivers for 64bit / 32bit Windows 7, Vista, XP, 2003 and 2008
• Fully RoHS compliant
Specifications
Specifications
Capacity
Edition
Form Factor
Height
Interface
Host Controller Interface
Controller
Flash Memory Type None
Max. Read
Max. Write
DRAM Cache Memory N/A
DRAM Cache Memory Type
Max. Random Read 4K
Max. Random Write 4K
Latency N/A
Special Features
Power Consumption (active)
Max. Endurance Rating
MTBF
Max. Operating Vibration
Max. Non-operating Vibration
Max. Operating Shock
Max. Non-operating Shock
Connectivity
OS Support
Bracket N/A
Package Type
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
24 months
Manufacturer Contact Details
Manufacturer:
Scan
Reviews
Rated 3.3 out of 5 by 3 reviewers.
Rated 4 out of 5 by 2.5" SSDs are Redundant. These are more useful. If you want to add some SSD disks to your system, the normal way is to buy a 2.5" drive, figure out where to stick it, and plug it into a SATA port on your motherboard, then wire in some power from your PSU via a multiheaded and untidy snaking cable... There are numerous reasons why you might not be able to do that, such as no ports on your motherboard, no room for a 2.5" device. Or you just want to keep things neat. The 2.5" package is just a replacement package for laptop style disks but in a desktop, this is kinda obsolete. Just use an mSATA SSD package, like you would a RAM DIMM. Slot the mSATA into this adapter card and you've got your storage neatly tucked away in a PCIe slot. No cable mess or fuss. Simples. 02 July 2014
Rated 5 out of 5 by Works well with mSATA drive Fits in an HP Microserver and is being used for an mSATA SSD boot disk running Linux. 18 April 2014
Rated 1 out of 5 by It does work - sometimes! Since installing this controller a couple of months ago for an extra 2 SATA3 HDD's I have had endless problems. Blue screens, random restarts, non recognition of the hardware, computer fails to start or won't turn off etc. Moved it to different slot and it worked for a week but now it's doing the same things again. I'm dumping it and getting another Silverstone SST-EC05 - LN45548. I've had one of those installed for over a year and it's not given me any trouble at all. Costs a bit more but worth it. 21 March 2014
