KMA Machines GEMINUS Stereo True Doubler Tracker Pedal
KMA Machines - GEMINUS, Stereo True-Double-Tracker (Proprietary Doubler) Pedal, Width, Time, Pitch and Level Controls
Email me when the availability or price changes
Finance this product
- Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.

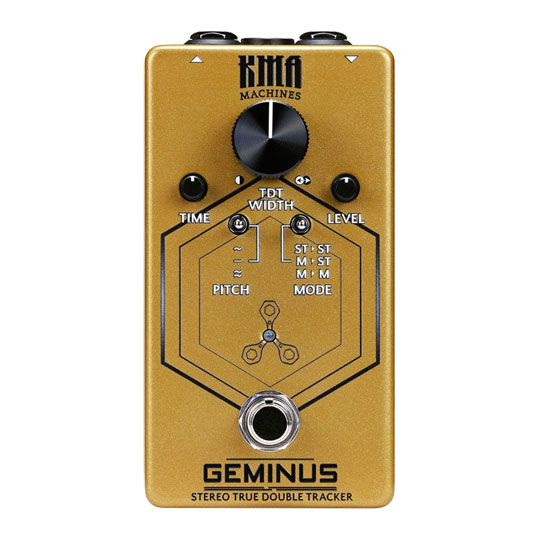

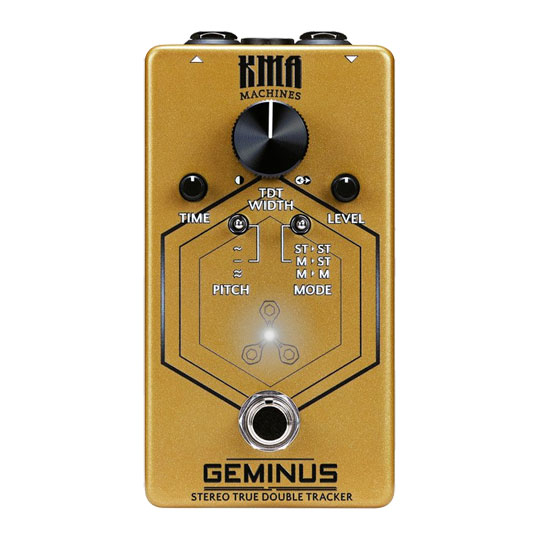

Stereo True Doubler Tracker Pedal
KMA Machines - GEMINUS
Doubling DoppelgängerThe first outing for KMA’s unique and custom AI driven True Double Tracker technology was in the ENDGAME, their powerhouse end-of-chain pedal. The dead-simple-to-use, TDT Algorithm in ENDGAME was designed to be as authentic to the doubling recording process as possible, but without realising that not everybody needs all the bells and whistles of such an all-encompassing device. However, the processing power requirements required for TDT meant a simpler device wasn’t yet possible. But as demand from the community grew, the KMA team worked hard to squeeze it down and make it happen.
So, meet GEMINUS – all of KMA’s True Double Tracker goodness in a compact pedal that’s suitable for any board. If you're playing live or recording with a single instrument, GEMINUS is the perfect solution for adding “fatness” and “width” to your performances – it really does feel like you are playing the same riff twice! To top it all off, they added a switchable real True/Buffered bypass and ‘silent’ relay-based soft switching. When testing the new pedal platform, KMA really loved the clarity and signal integrity of their Buffered Bypass, plus there are zero clicks and pops when switching in this mode, which is why it is the recommended and default mode on shipping. However, some players have some special devices like extra fussy vintage fuzz pedals and the like, the ability to select True Bypass mode via an internal dip switch was added.
At A Glance
• Stereo True-Double-Tracker (Proprietary Doubler) pedal
• Width Knob, provides control over the stereo field
• Stereo or Mono connections on TRS jacks
• Flexible signal routing (selectable Stereo or Mono In/Out)
• Time, Pitch and Level controls, for precise TDT tailoring
• Compact enclosure with top-mounted jacks – will fit into any setup
• Switchable True/Buffered Bypass
• Silent relay-based soft switching
• Premium analogue electronics
• 32 Bit internal processing
Ins and Outs
intelligent designThe mode for the TRS input and output jacks is selected by the toggle switch. You can choose between stereo in and out, mono in and stereo out or mono in to mono out. TRS saves space inside to not make the pedal larger and allows for top mounting jacks. So no matter your signal and tonal desires, GEMINUS will fit into your rig with ease. TRS Stereo to Dual TS L/R splitters are also available in a variety of formats from many places.
For the most accurate performance (and just like the real double tracking scenario in the studio), the custom True Double Tracker algorithm should ideally be fed with a mono signal. Obviously if you are trying to emulate what traditionally happens in the studio, you wouldn’t normally double up a stereo source. Having said that, the TDT algorithm has been optimised to still have a useful and very pleasing widening effect on stereo input signals, just take care that using too much doubling on some stereo sources may cause your carefully crafted reverb, delay or other modulation effects to turn to mush or even add phase issues.
The Best Sounding, Yet Easiest to Use Doubler You’ll Ever Play!
Double TimeTo help tailor the Doubling to your own taste, the TIME control changes the timing range of the doubled AI-driven onset detection. Essentially, it’s all about the tightness of the doubled signal to fit differing playing styles. Variable from an extra tight mode, that’s perfect for extra fast riffs, to a looser timing that can just the right amount of density to more open playing styles, this control is a powerful weapon to make your riffs fit your musical goals. The centre detent is GEMINUS’ default factory position, but turning the knob left will give a tighter feel. Crank the knob to the right and the doubled signal becomes much more relaxed.
Level the fieldWhile the LEVEL control affects the balance of the doubled signal against the original source. Useful for those times where you might want maximum width, but a little less (or even more) of the sound to be doubled against the original. Centre detent of the knob is GEMINUS’ default factory position. There’s some clever panning stuff going on under the hood here too, so neither the doubled or original signal is louder on one side or the other, when in Stereo.
Gimme some PitchFinally, the new PITCH selector switch can add some additional movement to your doubled signal, extending the usefulness of GEMINUS beyond standard doubling. When the switch is at the centre default position (-) there is no pitch adjustment, (~) adds some subtle modulation, while (≈) adds even more wobble. In this mode, it doesn’t mean that your second guitarist will sound like they are off on a quest for enlightenment all on their own (!), it is just super handy for those times when you want more chaos and instability in your ensemble.

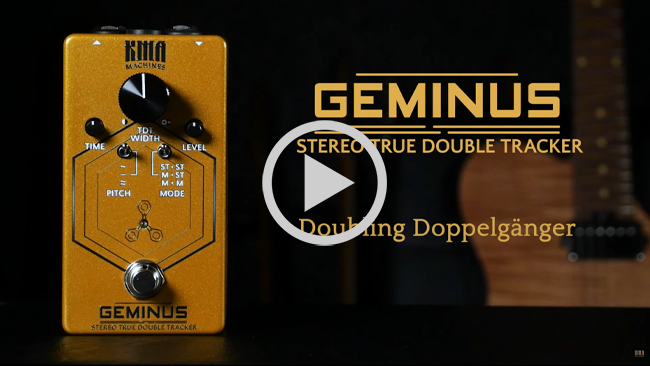

KMA Machines GEMINUS - Stereo True Double Tracker
The Tech Spec
| Features | Specification | Product Type | Stereo True-Double-Tracker (Proprietary Doubler) pedal |
|---|---|
| Bypass Type | Switchable True/Buffered Bypass with ‘silent’ relay-based soft switching |
| Power Supply Requirements | 9 V DC – Centre (-) negative 2.1mm |
| Current Draw (max) | < 100 mA |
| Product Dimensions | H: 60 mm / 2.36 inch W: 74 mm / 2.91 inch D: 128 mm / 5.04 inch |
| Weight | 350 g / 12.35 ounces |
