End Of Life

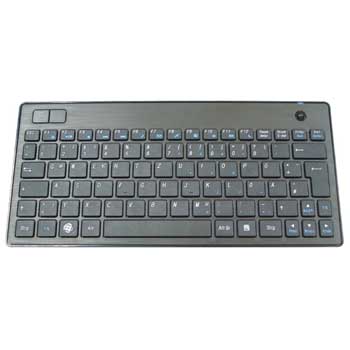

HTPC Wireless Keyboard Super Mini with Track Ball Mouse Keysonic KSK-3201RF

Keysonic KSK-3201RF brushed Super-Mini Slim Wireless 2.4Ghz Keyboard with Trackball 2 button Mouse

Scan code: LN34599 Manufacturer code: KSK-3201RF Request call
End Of Life
Mid Range
Product Overview • Extremely flat, wireless super-mini keyboard with built-in trackball
• Far-ranging and reliable radio-frequency transmission at 2.4 GHz up to approx. 10 m (33 ft) away from the PC
• Built-in 7 mm optical trackball with mouse function and two mouse buttons
• Modern design with flat notebook keys and a texture of brushed metal
• 12 multifunctional keys for Pairing, Play/ Pause, Stop, Backward, Forward, Media player, Mail, Internet, Mute, Volume up, Volume down and Sleep mode
• Full functionality of a full-size layout keyboard
• Extremely silent stroke and tactile feedback due to high-quality X-Type membrane technology
• Status LEDs for Pairing/ Transmitting and Battery low (<2.2 V)
• Plug & Play installation, no special driver necessary
• Comes with USB receiver, ready to plug into your PC.
• Optimal for Digital Living-Rooms (HTPC), mobile use as well as for training, conference & presentation facilities etc.
Features • Construction of keyboard: X-Type membrane technology
• Life expectancy: approx. 5 million strokes per key; approx. 1 million for mouse buttons
• Switch travel: 1.7 ±0.3 mm total run
• Pressure point: 55 ±15 g
• Transmission frequency: 2.405~2.475 GHz, GFSK, 71 Channels each of 216 IDs ("Channels" to differentiate keyboards in one room)
• Construction of trackball: 7mm diameter, optical scanning, 1,000 dpi
• Effective operation distance: approx. 10 m
• Battery type: 2× AAA 1.5 V
• Power supply: Keyboard: 3 VDC ±5 % Receiver: +5 VDC ±5 %
• Power consumption (avg.): Keyboard Operating: 6 mA Receiver: 60 mA (max.)
• Keyboard Standby: <1 mA
• Keyboard Sleep-Mode: 200µA
• Temperature: Operating: 0 °C up to +40 °C Storage: -30 °C up to +65 °C
• Humidity: Operating and storage: 0 % up to 95 % RH
• Content of delivery: Keyboard, USB receiver, 1 pair of batteries, user manual
• Colour: Black
• Certified: CE, FCC, WEEE/RoHS, REACH
• Compatibility: XP / Vista / Windows7
