Keeley Magnetic Echo "Tape Echo" Style Delay pedal
Keeley 'Magnetic Echo' Delay Pedal for Electric Guitar, with 40ms-600ms Delay Range
Email me when the availability or price changes
Modulated Tape Echo
Keeley - 'Magnetic Echo'

24-bit/96kHz 4-channel
Portable USB Audio Interface

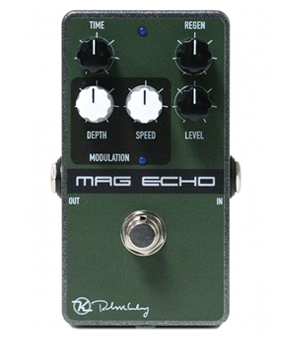

Introducing the ‘Magnetic Echo’ from esteemed effects pedal manufacturer Keeley Electronics.
The ‘Mag Echo’ authentically recreates tube tape echo sounds by utilising the delay circuit, and a dash of modulation. Tape echo has long since been thought of as a harmonically rich, and extremely guitar-friendly type of delay. Keeley’s Mag-Echo gets very similar results by using a small amount of Lo-Fi delay, a filtered echo response to ensure things are nice and warm, and then a little modulation.
The modulation Keeley use here is similar to what was used in their celebrated ‘Seafoam Chorus’, a light waver of pitch on the repeat trails. Thanks to the simple controls and simply layout, Time, Regen and Level and with the sensitive ‘Depth’ and ‘Speed’ controls, it’s possible to get some incredible authentic vintage sounds, alongside some truly unique tones!
at a glance
• Tape-style delay pedal for electric guitar
• Echoes are filtered as they decay for warm tape-style tone
• Create tape-style modulation effects with the wow and flutter controls
• Delay range of 40ms-600ms
• Built tough for long-term reliability
Controlling & Navigating the 'Mag Echo'

Keeley electronics - Mag echo
Tape delay
Keeley's 'Mag Echo' is a powerful, authentic tape-style delay stompbox. Capable of beautifully warm, rich delay tones, the Mag-Echo is surprisingly simple and intuitive to navigate. Take a look below and get to know this magnificent delay!

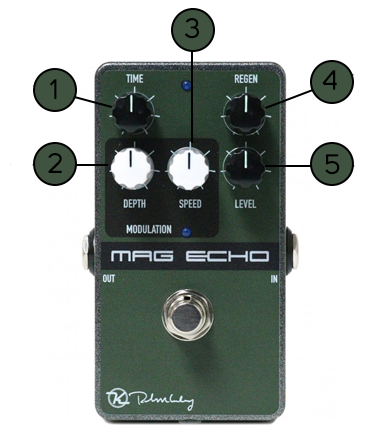

TimeControls Delay time, from 40ms to 600ms.

DepthControls the Depth of Modulation.

SpeedControls speed of Modulation.

RegenControls the number of repeats.

LevelControls the volume of repeats.

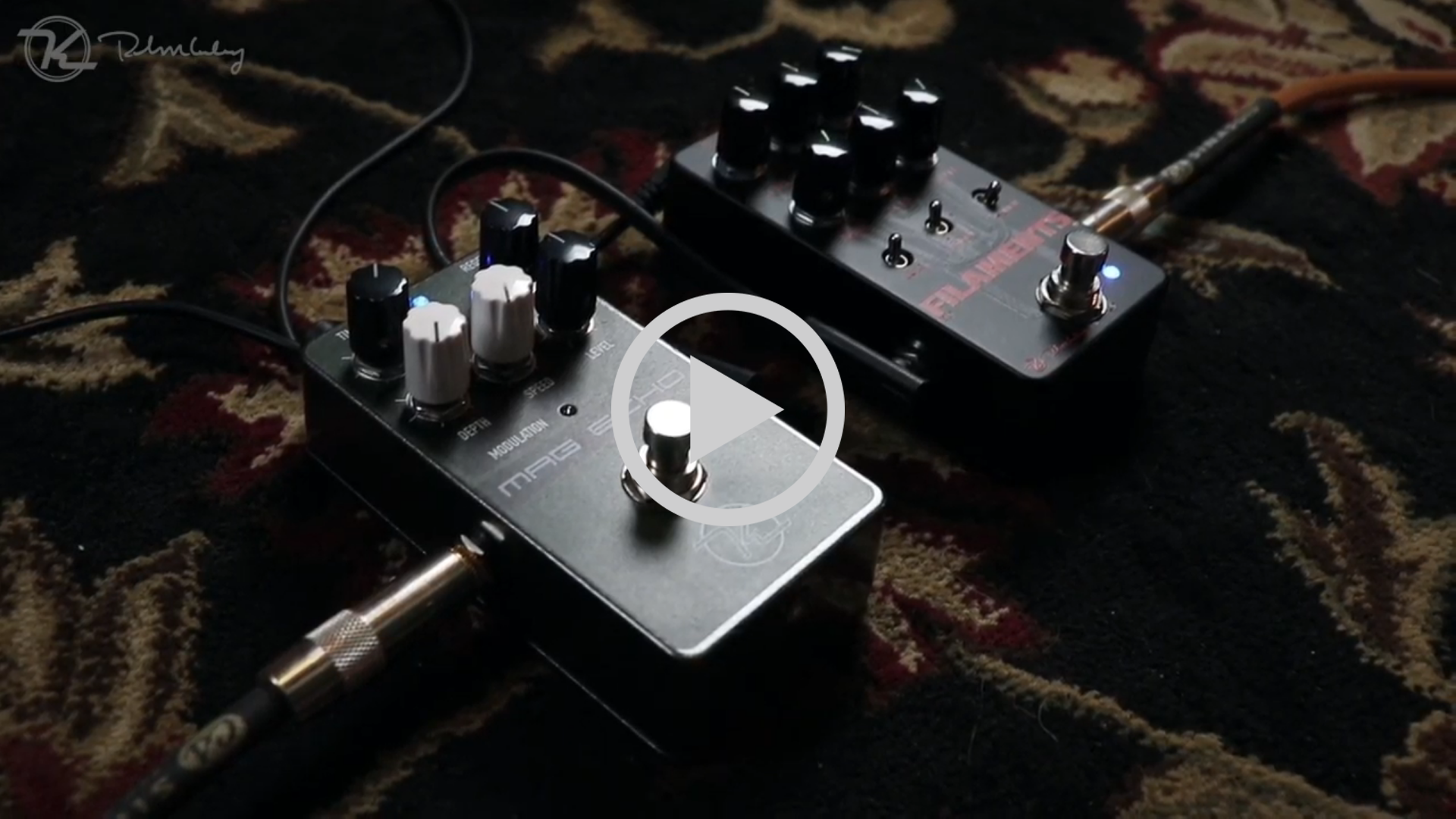

Keeley Electronics - 'Filaments' and 'Mag Echo'
w/ jamie harrisonJamie Harrison stopped by Keeley HQ to test out the Filaments distortion and Mag Echo delay. What a combination!

The Tech Spec
Features | Specification | Pedal Type | Delay, Echo |
---|---|
Analogue/Digital | Digital |
Max Delay Time | 600ms |
Inputs | 1 x 1/4" |
Outputs | 1 x 1/4" |
Power Source | 9V DC power supply required (sold separately) |
Power Usage | 45mA |
Batteries | Optional 9V battery |
Height | 2" (including knobs) |
Width | 2.35" |
