Intel Wireless AC 8265 M.2 2230 PC/Laptop MU-MIMO WiFi Card
Scan code: LN81675
Manufacturer code: 8265.NGWMG
End Of Life
Intel Wireless AC 8265 M.2 2230 PC/Laptop MU-MIMO WiFi Card
Intel Dual Band Wireless-AC 8265 Internal Adapter, M.2 PCIe 2230, 867Mbps, 2x2 11ac, Bluetooth 4.2, MU-MIMO, vPro, OEM
Scan code:
LN81675
Manufacturer code:
8265.NGWMG
This product is no longer available to purchase.
Email me when the availability or price changes
- SCANPROTECT Protect against installation damage for 28 days.
- 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.
Product Overview
Intel® Dual Band Wireless-AC 8265: Ultra Wi-Fi. Ultra Features. Ultra Connected Experience
The Intel® Dual Band Wireless-AC 8265 adapter supports Bluetooth® 4.2 and 2x2 11ac Wi-Fi delivering up to 867Mbps including wave 2 features such as downlink MU-MIMO providing up to 3x increase in user speeds in dense deployments, supporting fast downloads and long battery life compared to legacy 11ac devices. Combined with Intel® Core™ processors and exceptional Intel wireless innovations, the Intel® Dual Band Wireless-AC 8265 dramatically reshapes your connected experience at home, work or on the go.
4th Generation Intel 802.11ac Wireless
802.11ac, Dual Band, 80MHz, 2x2, & MU-MIMO for Faster Speed, Better Coverage, & Larger Capacity
Delivers up to 3x faster Wi-Fi speeds (up to 867 Mbps) than 802.11n, with up to 3x more bandwidth per stream for more users and devices. Downlink MU-MIMO allows an Access Point to simultaneously transmit data to multiple clients and can improve overall downlink network capacity by up to 3x. Intel® Wireless-AC enables smoother streaming of higher resolution videos, fewer dropped connections and less congestion, and faster speed further away from the router.
Bluetooth® 4.2
Dual mode Bluetooth® 4.2 enables BR/EDR-low energy devices to act as a hub and peripheral at the same time. Connects to the newest low energy Bluetooth® products as well as your familiar devices, such as headsets, keyboard, mice and more.
Microsoft Windows 10 Ready
Full support for latest Microsoft Windows 10 OS.
M.2 2230 Form Factor
Compact form-factors, such as M.2 2230 modules enable system configuration and platform usages flexibility.
Experience the Intel Difference
Worldwide Regulatory Support Intel® Dynamic Regulatory Solution
Enables worldwide regulatory compliance on a single Intel® Wireless-AC adapter SKU. The Intel® Dual Band Wireless-AC 8265 detects its location and automatically optimizes the Wi-Fi settings to local regulatory requirements, simplifying travel experience and global enterprise procurement. Future regulatory changes are easily managed during the product lifecycle.
Business-Class Wireless
Intel® vPro™ Technology
Supports Intel’s hardware-based security and management features built into Intel® Core™ vPro™ processors and chipsets that enables IT to manage PCs virtually anywhere, anytime while reducing deployment costs, improving security and ROI.
Intel® Active Management Technology Support
Using integrated platform capabilities and popular third-party management and security applications, Intel® AMT allows IT or managed service providers to better discover, repair, and protect their networked computing assets. Intel® AMT is a feature of Intel® Core™ processors with Intel® vPro™ technology.
Intel® PROSet/Wireless Software
Includes advanced IT tools to improve security, reduce complexity and save IT time and money. Streamlines client deployments and allows remote management of wireless settings and profiles by IT managers.
Specifications
• Connector Interface: M.2: PCIe, USB.
• Wi-Fi Alliance: Wi-Fi CERTIFIED a/b/g/n/ac, WMM, WMM-PS, WPA, WPA2, WPS2, Protected Management Frames, Wi-Fi Direct for peer to peer device connections, Wi-Fi Miracast as Source.
• IEEE WLAN Standard: IEEE 802.11a/b/g/n/ac, 802.11d, 802.11e, 802.11h, 802.11i, 802.11w; 802.11r, 802.11k, 802.11v pending.
• OS Support; Fine Timing Measurement based on 802.11REVmc.
• Roaming: Supports seamless roaming between access points.
• Antenna Diversity: Supported.
• Radio ON/OFF Control: Supported.
• Bluetooth®: Dual Mode Bluetooth® 4.2, BLE.
• Operating Systems: Microsoft Windows 7, Microsoft Windows 8.1, Microsoft Windows 10, Linux (limited feature support), Android.
• Operating Temperature (Adapter Shield): 0°C to +80°C.
• Humidity Non-Operating: 50% to 90% RH non-condensing (at temperatures of 25°C to 35°C).
• Dimensions (HxWxD): M.2 2230: 22 mm x 30 mm x 2.4 mm [1.5mm Max (Top Side)/ 0.1mm Max (Bottom Side)].
• Weight: M.2 2230: 2.6g.
Security
• Authentication: WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA, EAP-AKA’.
• Authentication Protocols: PAP, CHAP, TLS, GTC, MS-CHAP, MS-CHAPv2.
• Encryption: 64-bit and 128-bit WEP, 128-bit AES-CCMP.
• Wi-Fi Direct Encryption and Authentication: WPA2-PSK, AES-CCMP.
Important - Please Note: OEM WiFi Adapter Card. Antennas Not Included. Features
Weight (in grams) 2.6
Operating Temperature Range 0°C to 80°C
Supported Operating Systems Linux*, Windows 7, 32-bit*, Windows 7, 64-bit*, Windows 8.1, 64-bit*, Windows® 10, 64-bit*
Warranty Period 1 yrs
Antenna 2x2
Supplemental Information
Product Brief View now
Networking Specifications
TX/RX Streams 2x2
Bands 2.4 GHz, 5 GHz
Max Speed 867 Mbps
Wi-Fi CERTIFIED* 802.11ac
Compliance FIPS, FISMA
Bluetooth Version 4.2
Integrated Bluetooth Yes
Package Specifications
Board Form Factor M.2 2230, 1216
Package Size 22mm x 30mm x 2.4mm
System Interface Type PCIe, USB
Advanced Technologies
MU-MIMO Yes
Supported Under Intel® vPro™ Technology Yes
The Intel® Dual Band Wireless-AC 8265 adapter supports Bluetooth® 4.2 and 2x2 11ac Wi-Fi delivering up to 867Mbps including wave 2 features such as downlink MU-MIMO providing up to 3x increase in user speeds in dense deployments, supporting fast downloads and long battery life compared to legacy 11ac devices. Combined with Intel® Core™ processors and exceptional Intel wireless innovations, the Intel® Dual Band Wireless-AC 8265 dramatically reshapes your connected experience at home, work or on the go.
4th Generation Intel 802.11ac Wireless
802.11ac, Dual Band, 80MHz, 2x2, & MU-MIMO for Faster Speed, Better Coverage, & Larger Capacity
Delivers up to 3x faster Wi-Fi speeds (up to 867 Mbps) than 802.11n, with up to 3x more bandwidth per stream for more users and devices. Downlink MU-MIMO allows an Access Point to simultaneously transmit data to multiple clients and can improve overall downlink network capacity by up to 3x. Intel® Wireless-AC enables smoother streaming of higher resolution videos, fewer dropped connections and less congestion, and faster speed further away from the router.
Bluetooth® 4.2
Dual mode Bluetooth® 4.2 enables BR/EDR-low energy devices to act as a hub and peripheral at the same time. Connects to the newest low energy Bluetooth® products as well as your familiar devices, such as headsets, keyboard, mice and more.
Microsoft Windows 10 Ready
Full support for latest Microsoft Windows 10 OS.
M.2 2230 Form Factor
Compact form-factors, such as M.2 2230 modules enable system configuration and platform usages flexibility.
Experience the Intel Difference
Worldwide Regulatory Support Intel® Dynamic Regulatory Solution
Enables worldwide regulatory compliance on a single Intel® Wireless-AC adapter SKU. The Intel® Dual Band Wireless-AC 8265 detects its location and automatically optimizes the Wi-Fi settings to local regulatory requirements, simplifying travel experience and global enterprise procurement. Future regulatory changes are easily managed during the product lifecycle.
Business-Class Wireless
Intel® vPro™ Technology
Supports Intel’s hardware-based security and management features built into Intel® Core™ vPro™ processors and chipsets that enables IT to manage PCs virtually anywhere, anytime while reducing deployment costs, improving security and ROI.
Intel® Active Management Technology Support
Using integrated platform capabilities and popular third-party management and security applications, Intel® AMT allows IT or managed service providers to better discover, repair, and protect their networked computing assets. Intel® AMT is a feature of Intel® Core™ processors with Intel® vPro™ technology.
Intel® PROSet/Wireless Software
Includes advanced IT tools to improve security, reduce complexity and save IT time and money. Streamlines client deployments and allows remote management of wireless settings and profiles by IT managers.
Specifications
• Connector Interface: M.2: PCIe, USB.
• Wi-Fi Alliance: Wi-Fi CERTIFIED a/b/g/n/ac, WMM, WMM-PS, WPA, WPA2, WPS2, Protected Management Frames, Wi-Fi Direct for peer to peer device connections, Wi-Fi Miracast as Source.
• IEEE WLAN Standard: IEEE 802.11a/b/g/n/ac, 802.11d, 802.11e, 802.11h, 802.11i, 802.11w; 802.11r, 802.11k, 802.11v pending.
• OS Support; Fine Timing Measurement based on 802.11REVmc.
• Roaming: Supports seamless roaming between access points.
• Antenna Diversity: Supported.
• Radio ON/OFF Control: Supported.
• Bluetooth®: Dual Mode Bluetooth® 4.2, BLE.
• Operating Systems: Microsoft Windows 7, Microsoft Windows 8.1, Microsoft Windows 10, Linux (limited feature support), Android.
• Operating Temperature (Adapter Shield): 0°C to +80°C.
• Humidity Non-Operating: 50% to 90% RH non-condensing (at temperatures of 25°C to 35°C).
• Dimensions (HxWxD): M.2 2230: 22 mm x 30 mm x 2.4 mm [1.5mm Max (Top Side)/ 0.1mm Max (Bottom Side)].
• Weight: M.2 2230: 2.6g.
Security
• Authentication: WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA, EAP-AKA’.
• Authentication Protocols: PAP, CHAP, TLS, GTC, MS-CHAP, MS-CHAPv2.
• Encryption: 64-bit and 128-bit WEP, 128-bit AES-CCMP.
• Wi-Fi Direct Encryption and Authentication: WPA2-PSK, AES-CCMP.
Important - Please Note: OEM WiFi Adapter Card. Antennas Not Included. Features
Weight (in grams) 2.6
Operating Temperature Range 0°C to 80°C
Supported Operating Systems Linux*, Windows 7, 32-bit*, Windows 7, 64-bit*, Windows 8.1, 64-bit*, Windows® 10, 64-bit*
Warranty Period 1 yrs
Antenna 2x2
Supplemental Information
Product Brief View now
Networking Specifications
TX/RX Streams 2x2
Bands 2.4 GHz, 5 GHz
Max Speed 867 Mbps
Wi-Fi CERTIFIED* 802.11ac
Compliance FIPS, FISMA
Bluetooth Version 4.2
Integrated Bluetooth Yes
Package Specifications
Board Form Factor M.2 2230, 1216
Package Size 22mm x 30mm x 2.4mm
System Interface Type PCIe, USB
Advanced Technologies
MU-MIMO Yes
Supported Under Intel® vPro™ Technology Yes

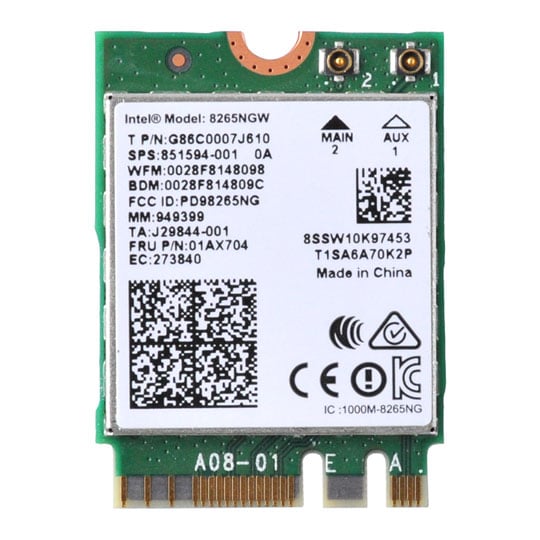

Intel Wireless AC 8265 M.2 2230 PC/Laptop MU-MIMO WiFi Card
