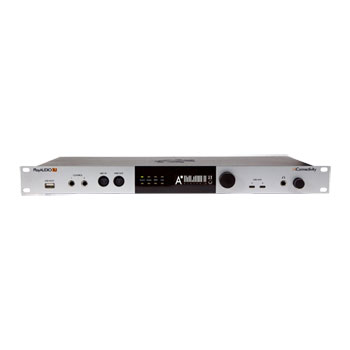

iConnectivity - PlayAUDIO1U, Audio and MIDI Interface with 12 Panel Reinforced XLR Outputs

Thumbnail 1 : iConnectivity PlayAUDIO1U Thumbnail 2 : iConnectivity PlayAUDIO1U
Scan code: LN140557 Manufacturer code: PA1U
Order now and get it tomorrow, Mon 17th Jun
Get it Tomorrow, 17 JunIn stock
From £30.74 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £98.75
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,090.00
Total inc. interest: £1,185.02
Monthly Payment: £53.23
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,090.00
Total inc. interest: £1,277.34
Monthly Payment: £38.17
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,090.00
Total inc. interest: £1,374.10
Monthly Payment: £30.74
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £1,090.00
Total inc. interest: £1,475.06
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £28.96 / month (APR 19.9%)
Delivery Options
  • By DPD On 17th Jun to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Audio and MIDI Interface
iConnectivity - PlayAUDIO1U

iConnectivity PlayAUDIO1U

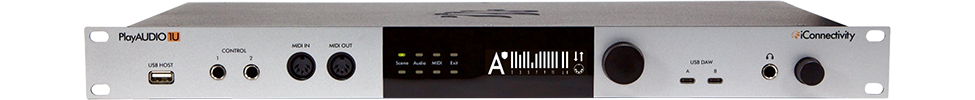

Built for Live PerformanceiConnectivity PlayAUDIO1U is designed to offer support for professional level live performances. Deeply-thought out, bulletproof, fail-proof and road-ready, this interface provides pristine audio output along with comprehensive MIDI connectivity to your whole stage. It works perfectly for control and playback of backing tracks, virtual instruments, or most anything else you can think of that requires computers in a live environment.

PlayAUDIO1U keeps your show fail-proof by using iConnectivity’s rated multi-computer redundancy. It listens to your software and when issues occur it automatically switches computers faster than anyone can hear. It does this by listening to either (or both) MIDI or audio coming from your computer.

PlayAUDIO1U also introduces a new type of protection with your performance. Along with listening for software or computer failure, it can listen to the audio streams coming from your computers and through itself. At the smallest hint of an audio problem, it can mute the audio to the main outputs and provide diagnostic information to the operator using its display. This helps protect everyone from bad audio, noise, etc. from passing through the outputs and into the PA system, Monitors, etc.

at a glance • 2x USB C type ports for connecting computing devices
• Automatic and manual computer switching modes, for lightning-fast switching between connected computers
• USB MIDI host port, offering up to 8 ports worth of USB MIDI for Class Compliant controllers and/or modules
• Integrated +48v phantom power protection on outputs protects your interface from accidental damage
• 2x 2 button “Control” footswitch selectable input/outputs can be mapped to MIDI functions
• 1x 1/4” TRS stereo headphone output with dedicated control for convenient headphone monitoring
• 12 Balanced panel reinforced XLR outputs

Your Virtual Assistant

iConnectivity PlayAUDIO1U

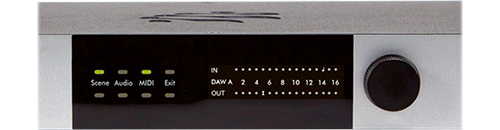

The PlayAUDIO1U DisplayJust like your own virtual assistant, the display provides information about what is happening in your world. Enjoy real-time information such as MIDI monitoring and audio levels.

The display will also provide you with warnings if computers fail or if there are issues elsewhere in the system. With PlayAUDIO1U’s display, getting setup properly and/or diagnosing problems has never been faster or easier.

A MIDI Maniac

iConnectivity PlayAUDIO1U

famous flexibility built-iniConnectivity have been the world leaders and innovators in MIDI connectivity for years now. After putting everything we know about MIDI in live performance into the PlayAUDIO1U.

PlayAUDIO1U can act as your chief MIDI manager for your live performance. Connect devices via its built-in 5 pin MIDI Din, USB host port, connected computers, and even on the network via RTP MIDI.

Powerful MIDI Processing

iConnectivity PlayAUDIO1U

avoid stuck notesOnce everything is connected, It lets you tailor what MIDI goes where and when. For an example, iConnectivity’s powerful MIDI processing lets you easily send MIDI to connected computing devices while only sending one set of program changes to connected peripherals, send all notes off when computer failure occurs to avoid stuck notes, filter out extraneous CC’s, and much more!

Made to Tour!

iConnectivity PlayAUDIO1U

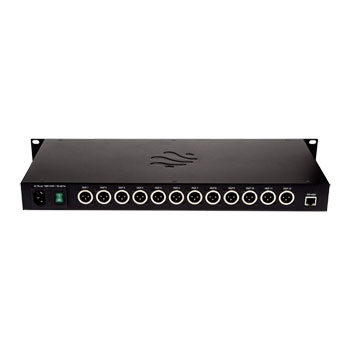

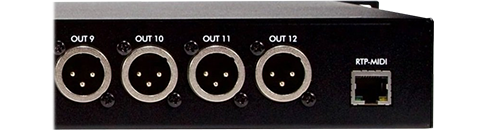

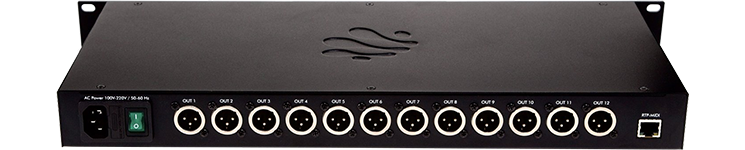

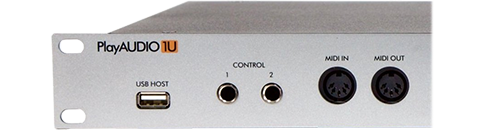

12 Panel reinforced XLR outsThe rear of PlayAUDIO1U is ready for your performance. Plug it right into your snake, loom, or stage box and go. The XLR jacks are also reinforced by the chassis, making them stand up better to the rigors of the road.

1U Rackmountable chassisPop the PlayAUDIO1U into your rack or use it alone. It is incredibly flexible.

Switching onboard power with IEC connectorNo wall warts are required! Switching100v - 220v 50-60hz with IEC connection makes PlayAUDIO1U compatible throughout the world! Just plug PlayAUDIO1U in and go.

Bundled Software & Sounds

Big Fish Audio

Big Fish AudioBig Fish Audio is a developer and distributor of premium virtual instruments, samples, and loop content. iConnectivity is proud to include a special sampler of Big Fish Audio samples and loops that's perfect to jumpstart or augment your production when you register your iConnectivity audio interface.

Ableton Live Lite

Ableton Live LiteAbleton Live Lite is a fantastic music creation software and also live performance tool. Ableton Live Lite is available upon registration of your PlayAUDIO1U.

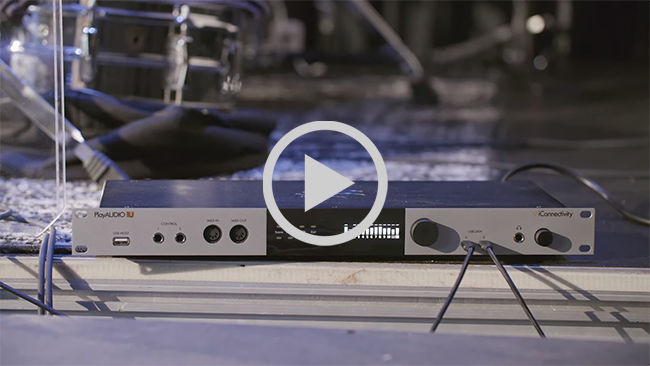

Introducing PlayAUDIO1U from iConnectivity

The Tech Spec

Features Specification
Computer Connectivity USB 2.0
Form Factor Rackmount
A/D Resolution Up to 24-bit/96kHz
Analogue Outputs 12 x XLR
Headphones 1 x 1/4"
MIDI I/O In/Out/USB/Ethernet
USB 1 x Type A, 2 x Type C
Data I/O 1 x RJ45 (RTP-MIDI)
Other I/O 2 x 1/4" (control)
Software Auracle Control, Ableton Live Lite, Big Fish Audio
OS Requirements - Mac OS X 10.11 or later
OS Requirements - PC Windows 10 or later
Rack Spaces 1U
Power Supply Standard IEC Power Cable
Dimensions Width: 19"
Height: 1.75"
Depth: 7.9"
Weight 6 lbs
Computer Interface Type USB 2.0 Type-C
Connections (Input)
  • 2 x 6.35mm (1/4") TRS Jack
  • 1 x Headphone (TRS 6.35mm Jack)
  • 1 x MIDI
Mic Preamps (Max)
Instrument Inputs (Max)
Phantom Power No
Sample Rate (Max) 96 kHz
Bit Resolution 24
iPad Compatible No
Connections (Output)
  • 2 x 6.35mm (1/4") TRS Jack
  • 1 x MIDI
  • 12 x XLR
Dimensions (mm) 482.6 x 44.45 x 200.6 WxHxD
DSP Processing No
Misc. Notes
